2 Axes DRO SDS 200 Kit Metal LCD Full Touch Screen 0.005mm Resolution Practical For Milling Machine

2 Axes DRO SDS 200 Kit Metal LCD Full Touch Screen 0.005mm Resolution Practical For Milling Machine

The 2 Axes Metal LCD Full Touch Screen Milling Machine DRO offers a resolution of 0.005mm, providing high precision for milling tasks. Its full touch screen interface enhances user experience, making operation intuitive and practical for detailed measurements and adjustments. Ideal for both professionals and hobbyists, this DRO ensures reliable performance in various machining applications.

Description:

Upgrade your milling machine with the LCD Full Touch Screen DRO (Digital Readout) system. With a high resolution of 0.005mm, this system ensures precise measurement and positioning tailored for metal milling applications. Its intuitive touch screen interface allows for easy navigation and operation, providing accurate readings and enhancing overall efficiency in your machining tasks. Experience the convenience and reliability that this advanced DRO system offers!

Features:

LCD Full Touch Screen Interface:Offers easy and intuitive operation for seamless user experience.

Two Axes Measurement Capability:Specifically designed for X and Y measurements, perfect for metal milling machines.

High Resolution of 0.005mm:Ensures precise measurement and positioning for high-quality machining.

Practical Functionality:Tailored for practical use in metalworking applications, enhancing efficiency and accuracy.

Benefits:

Accurate Position Measurement: Displays the precise position of the mill's X and Y axes for optimal control.

Precise Positioning: Ensures accurate results for achieving desired milling outcomes.

User-Friendly Touch Screen Interface: Facilitates convenient operation with an easy-to-use design.

Robust Construction: Built to withstand the demands of metalworking environments.

Designed for Large 2-Axis Milling Machines: Tailored specifically to meet the needs of larger milling setups.

Linear Rulers:
KA-600: Available in lengths of 1000 - 3000mm, ideal for larger machining tasks.
KA-300: Compact design ranging from 70 - 1020mm, suitable for smaller projects and precision work.

LCD Display Readout:

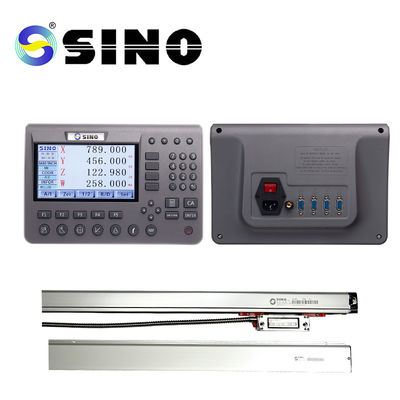

Model: SDS200
Functionality: Provides clear digital readouts for accurate measurement of both linear rulers.

Key Features
Accuracy and Precision: The DRO system ensures accurate and precise measurements, with higher resolution offering finer measurement increments.

Display Units: Equipped with a digital display unit, the SDS200 can show multiple measurements simultaneously. Users can toggle between different axes or functions, enhancing usability.

Display Technology: Utilizes LED or LCD technology for clear visibility of measurements in various lighting conditions.

This setup is perfect for both professional and hobbyist metalworking applications, combining precision and ease of use.

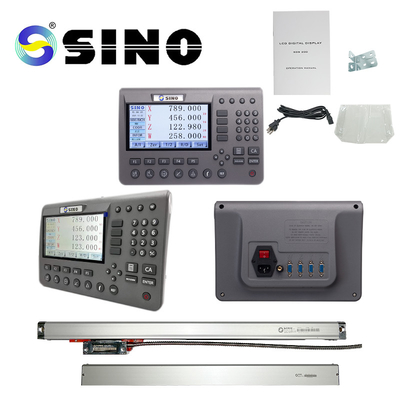

Package list:

Functions for milling machine:

1. Simple "R" with Midsplit:
 A technique for creating a rounded profile with a mid-split, allowing for smooth transitions in design.

2. Line Hole Positioning Using an Angle:
This method involves setting precise angles for drilling holes along a line, ensuring accurate placement for assembly or fitting.

3. Circle PCD Process for Equally Dividing Bevels:
Utilizes a Pitch Circle Diameter (PCD) to evenly space bevels around a circle, ideal for applications requiring symmetry and balance.

4. Progressive Machining on the Inner Chamber of a Rectangle:
A technique focused on machining the inner chamber of a rectangular component, progressively shaping it for functionality or aesthetics.

These methods enhance precision and efficiency in machining processes, making them essential for various applications in metalworking.

Detail Information:

Pin Description:

All linear scales were tested before delivery. Here is a sample of a scale's test report.
