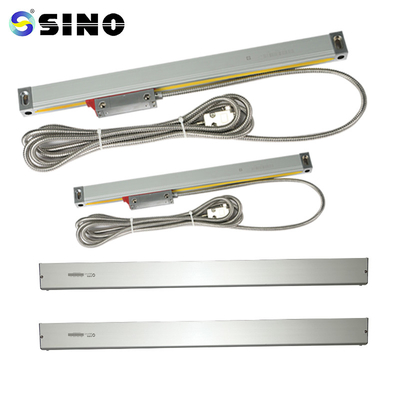

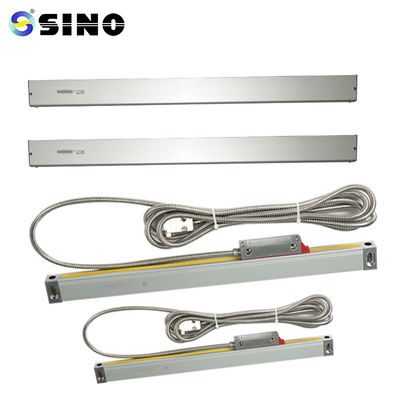

SINO KA500mm Linear Encoder Scale With Digital Readout Encoder For Lathe Milling Machine

SINO KA500mm Linear Encoder Scale With Digital Readout Encoder For Lathe Milling Machine​

The KA500 Small Linear Scale Digital Readout Optical Encoder is an advanced precision measurement tool specifically designed for small lathes and drilling machines. Its compact design and high accuracy provide reliable and precise measurements, ensuring optimal performance in machining operations.

Features:

Compact Design: The KA500 Small Linear Scale is specifically designed for small lathes and drilling machines, featuring a compact size that easily fits into tight workspaces.

Digital Readout: With its built-in digital readout, it provides clear and easy-to-read measurements, facilitating precise monitoring and control of machining processes.

Optical Encoder Technology: Utilizing advanced optical encoder technology, the KA500 ensures accurate and consistent measurements, even in challenging environments.

High Accuracy: This encoder delivers precise measurements, helping to minimize material waste and enhance overall productivity.

Easy Installation: Designed for effortless installation, the KA500 can be quickly and easily mounted on small lathes or drilling machines.

Functionality:

The Small Linear Scale KA500 Digital Readout Optical Encoder enables users to measure linear displacements with exceptional accuracy on small lathes and drilling machines. It provides real-time measurements for precise monitoring of machining processes. With advanced optical encoder technology, it delivers reliable and accurate data, enhancing machining results and overall productivity.

Usage:

The KA500 is specifically designed for small lathes and drilling machines, making it perfect for precise linear displacement measurements in various applications, including metalworking, woodworking, jewelry making, and small-scale manufacturing.

Applicable Scenarios:

Small Machine Workshops: The KA500 encoder is ideal for small machine workshops engaged in lathe and drilling tasks, enhancing the accuracy and precision of machining processes for superior results.

Small-Scale Manufacturing: In small-scale manufacturing industries, integrating the KA500 with lathe and drilling machines guarantees precise measurements, significantly improving production quality and efficiency.

Package includes:

Glass Linear Scale, 1 Piece, KA500-70mm

Available Resolutions: 0.5, 1, and 5 micrometers.

Customized Encoder Lengths (L0): Tailored to meet consumer specifications, with lengths ranging from 70mm to 470mm

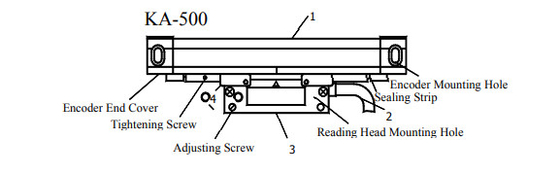

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Operating Guideline

To ensure the proper use and safety of the KA series linear encoder, please follow these guidelines:

General Description and Safety Considerations: Thoroughly review Chapter 1 for foundational knowledge and important safety guidelines.

Chapters 1-3: Installation, testing, and repair professionals must carefully follow and understand all details provided in these chapters to ensure proper setup and maintenance.

Chapters 4-5: Ensure complete comprehension of every paragraph to fully understand operational specifics and best practices.

Safety Advice: Refer to the listed safety advice to guarantee safe handling and operation of your linear encoder.

Detail Information:

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
