Key Features:
1️⃣ 3-Axis Capability: The SDS2-3VA DRO meter can simultaneously monitor and control three axes, making it perfect for machines like milling machines, lathes, and grinders that demand multi-axis precision.

2️⃣ KA300 Glass Linear Ruler: This digital readout meter is compatible with the KA300 glass linear ruler, recognized for its accuracy and reliability, ensuring precise positioning during machining.

3️⃣ TTL/RS422 Signal Support: The SDS2-3VA facilitates strong communication between the digital readout meter and the linear ruler through TTL/RS422 signals, enabling accurate data transmission.

4️⃣ Digital Display: Equipped with a digital display, the meter offers real-time measurements, allowing for precise monitoring and control of the machining process.

5️⃣ User-Friendly Interface: Featuring an intuitive interface, the DRO meter simplifies setup, customization, and operation, enhancing ease of use for operators.

These features enhance the usability of the graphics function. Notably, it is the first facility in China to implement a 16- and 32-bit calculator in a DRO system, achieving an input frequency of up to 5MHz with A/B, ranking among the highest globally.

SDS2-3VA DRO Digital Readout Systems Functions:

PCD Circumferential Division (Spark Testers and Milling Machines): This function allows for the precise division of circumferences into equal segments, commonly utilized in spark testers and milling machines for accurate positioning and repetitive machining tasks.

Involute Chamber Machining (Milling Machines): Specifically designed for milling machines, this feature enables the machining of involute profiles, essential for producing gears and other specialized components with involute shapes.

Bevel Machining and Angular Surface Processing (Milling Machines): This capability allows milling machines to perform bevel machining and process angular surfaces with high precision, ensuring accurate cuts and surface finishes.

N3 Function (Milling Machines): The N3 function provides advanced features such as complex interpolation and control of additional axes, enhancing the machine's versatility for intricate milling operations.

Diagonal Boring (Milling Machines): This function enables milling machines to execute diagonal boring operations, facilitating efficient boring at angles other than perpendicular or parallel to the workpiece surface.

R-Arc Function (Milling Machines): The R-Arc function allows for machining arcs with specified radii, providing precise control over curved surfaces and profiles.

Taper Measurement Function (Lathes): Tailored for lathes, this function accurately measures and monitors taper angles during turning operations, ensuring precise dimensional control.

SINO SDS2-3VA digital readout system specifications plus a glass linear scale

Preset Functions:The SDS2-3VA system includes preset functions that allow operators to store and quickly recall specific measurement values. This feature streamlines repetitive machining tasks by enabling easy retrieval and application of precise settings, enhancing efficiency and consistency in production processes.

Error Compensation:This feature allows the SDS2-3VA system to compensate for potential inaccuracies in machine tools or measurement deviations. By calibrating the system and applying correction values, it improves the overall accuracy of measurements, ensuring that machining operations adhere to tight tolerances and high-quality standards.

Data Interface:Certain models of the SDS2-3VA digital readout system come equipped with data interfaces such as RS-232 or USB. These interfaces facilitate seamless data transfer and communication between the digital readout unit and external devices (e.g., computers or data logging systems). This connectivity supports real-time monitoring, data recording, and analysis, thereby aiding quality control efforts and process optimization in manufacturing environments.

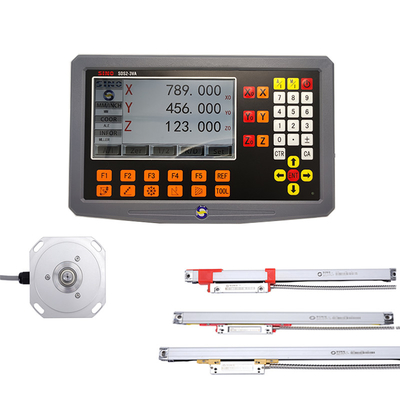

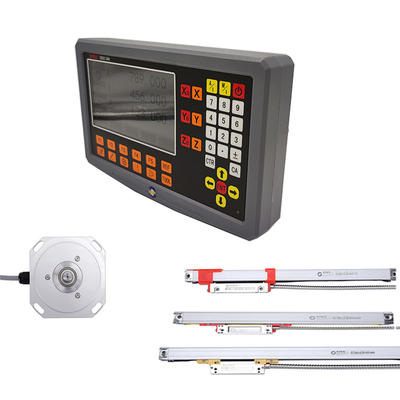

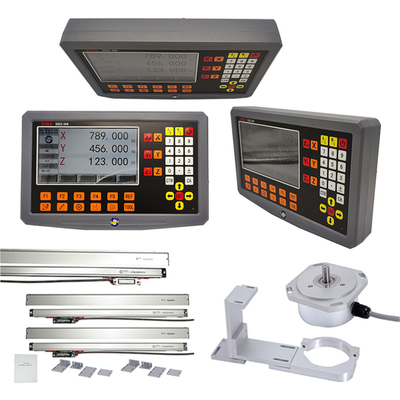

Product image /photos:
