Digital Readout Display Meter Set For CNC Lathe Grinder And EDM SINO SDS200 Milling DRO Kit

Brand Name:	SINO
Model Number:	SDS200
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS,ISO9001

Item Name:

DRO Test Instrument SDS200

Usage:

CNC Lathe, Milling, And Boring Equipment

System:

Digital Display Controller SDS200

Axis:

4 Axis Readout

Display:

Lcd Display

Voltage:

100-240V / 50-60Hz For Display

Time Display:

Support

Color:

Supply Ability:

3000 sets per month

Highlight:

Grinder Digital Readout Display Meter Set

EDM Digital Readout Display Meter Set

Product Description

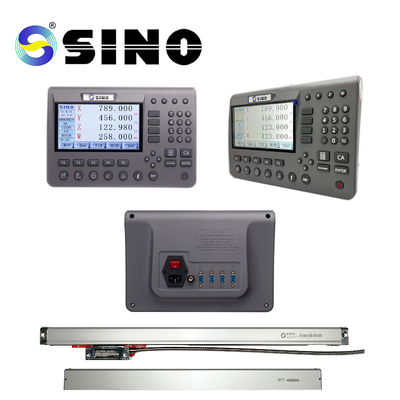

SINO SDS200 Metal 4 Axis LCD Digital Readout Display Kit KA-300 Linear Scale

The LCD display is commonly used in lathe, drilling, boring, and milling machines, and it supports all Chinese optical linear glass scales.

Its ability to switch between Chinese and English on a single display makes it more useful for users of milling machines and lathes from many nations. Accessories for a four-axis display consist of a protective cover, power wire, support bracket, screw, user handbook, and support rod.

Funnctions of Sino SDS200 DRO Optical Scale

Zero adjustment, automatic middling, conversion of absolute to relative, conversion of millimeters to inches, and radius to diameter

conversion; 200 tool storage; Calculation function; Brightness adjustment; Display language setting; Buzzer setting; Tape

measurement and linear error correction

Specifications for Sino Linear scale encoder

The SDS200 offers a high performance universal display console with Milling, Lathe and Grinding functions.

This 4 axis model allow up to 4 linear encoders to be connected. Additional interfaces are available to combine axis or convert the input to suit other manufacturers equipment. Please see the encoder compatibility guide below.

Durable front panel membrane with tactile switches and robust die cast housing.

Large easy to read LCD display.

Functions include; PCD, line of holes, 200 zero memory, radius/diameter display, tool offsets.

Package list:

Item name	4 axes digital display unit
Digital Readout (DRO)	SDS200
Linear scale for axis X	KA-600 / KA-300: 70-3000mm
Linear scale for axis Y	KA-600 / KA-300: 70-3000mm
Linear scale for axis Z	KA-600 / KA-300: 70-3000mm
Others	Cable / Screws / Manual

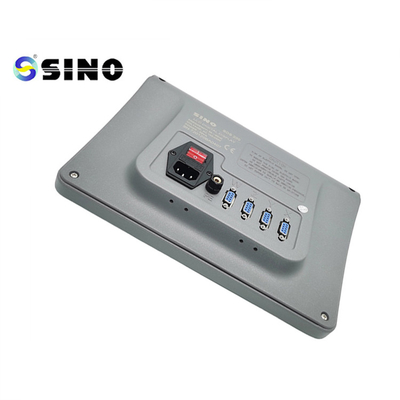

Detail Information of SDS200 digital readout systems

Digital Readout Display Meter Set For CNC Lathe Grinder And EDM SINO SDS200 Milling DRO Kit 0

Digital Readout Display Meter Set For CNC Lathe Grinder And EDM SINO SDS200 Milling DRO Kit 1

Pin Description:

Digital Readout Display Meter Set For CNC Lathe Grinder And EDM SINO SDS200 Milling DRO Kit 2
