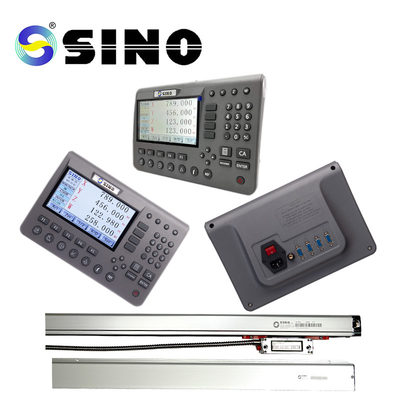

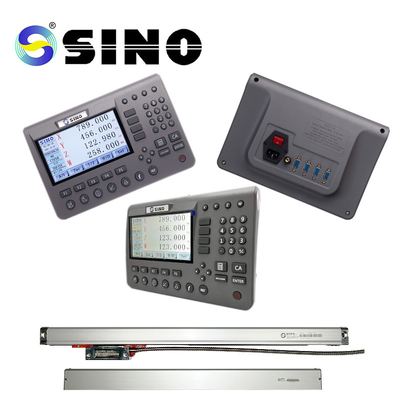

SINO SDS200 Metal 4 Axis LCD Digital Readout Display Kit KA-300 Linear Scale
Frequently found in lathe, drilling, boring, and milling equipment, the LCD display is compatible with all Chinese optical linear glass scales.
It is very helpful for users of milling machines and lathes from other countries since it can switch between Chinese and English on a single display.
The protective cover, power cable, support bracket, screw, user manual, and support rod are the accessories for a four-axis display
Funnctions of Sino SDS200 DRO Optical Scale
The functions include zero adjustment, automated middling, absolute to relative conversion, millimeters to inches conversion, and radius to diameter conversion
conversion, 200-tool storage, function for calculations, and brightness modification Present setting; Buzzer setting; Tape
measurement and linear error correction
Specifications for Sino Linear scale encoder
A high-performance universal display console with milling, lathe, and grinding capabilities is provided by the SDS200.
It is possible to connect up to four linear encoders with this four-axis type. To combine axes or modify the input to fit equipment made by other manufacturers, there are more interfaces available. Please refer to the compatibility guide for encoders below.
strong die cast casing with a front panel membrane that is both haptic and long-lasting.
large, easily readable LCD screen.
PCD, line of holes, 200 zero memory, radius/diameter display, and tool offsets are among the features.
Package list:
| Item name |
4 axes digital display unit |
| Digital Readout (DRO) |
SDS200 |
| Linear scale for axis X |
KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Y |
KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Z |
KA-600 / KA-300: 70-3000mm |
| Others |
Cable / Screws / Manual |
Detail Information of SDS200 digital readout systems
Pin Description:
