High Resolution Milling Machine 3-Axis Digital Readout SINO Lathe DRO Readout With TTL Input

3 Axis Digital Readout SINO Lathe DRO Readout With TTL Input For High Resolution Milling Machine

SINO 3-axis high resolution Measuring Digital Reader (DRO) TTL input system for lathes and milling machines

Product Description:

The SINO 3 Axis Digital Readout (DRO) is a digital measurement tool specifically designed for milling machines and lathes. It provides real-time precise data for the X, Y, and Z axes, enabling higher accuracy in positioning and control. Additionally, the system supports TTL input signals, ensuring compatibility with various types of encoders.

Key Features:

Three-Axis Measurement: The SINO DRO enables measurement along three axes—typically X, Y, and Z—accurately displaying each axis's position, which helps operators effectively monitor and control machining processes.

Digital Readout: This DRO system features a digital display that presents measured positions in real-time, ensuring clear and easily readable coordinates for quick and precise readings.

TTL Input Signal:The SINO DRO is compatible with TTL (Transistor-Transistor Logic) input signals, commonly used with linear scales and rotary encoders in milling machines and lathes, facilitating seamless integration with existing systems.

Superior Accuracy and Resolution: The DRO system produces machined parts with tight tolerances by providing outstanding accuracy and resolution, which is necessary for accurate measurement and control of machine motions.

User-Friendly Interface: The SINO DRO's user-friendly interface reduces setup time and improves user experience by streamlining operation with simple menu selections and navigation.
Multiple Display Modes: To accommodate different machining requirements, this DRO system offers a range of display modes, including absolute and incremental measurements, inch/metric conversions, and preset values.

Specifications of SINO SDS2-3VA digital readout system + linear scale encoder


The SDS2-3VA offers a high-performance universal display console suitable for milling, lathe, and grinding applications. This three-axis system can connect up to three linear encoders and includes additional interfaces for combining axes or adapting inputs for equipment from other manufacturers—please consult the compatibility guide for encoders.

It features a robust die-cast casing and a durable front panel membrane for enhanced tactile feedback. The large, easy-to-read LCD screen ensures clear visibility.

Key features include PCD, a line of holes, 200 zero memory, radius/diameter display, and tool offsets, enhancing functionality and user experience.

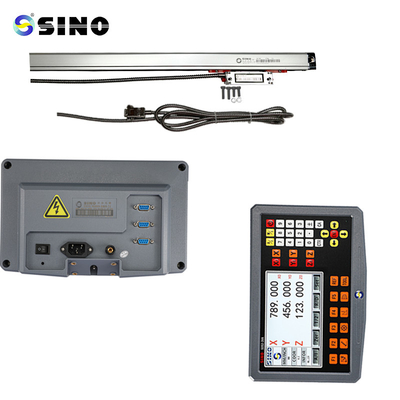

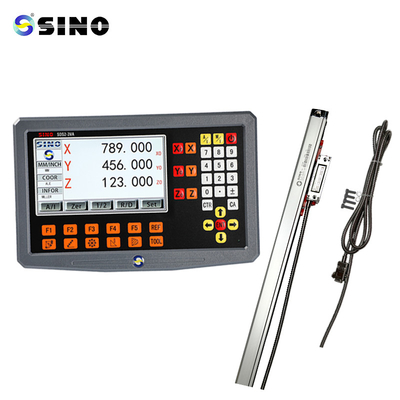

Product image /photos:

The rack in the picture is optioned, not standard product.
