Resolution 0.0002" SINO Three Axes Boring Machine DRO Kit TTL Signal

Large Image : Resolution 0.0002" SINO Three Axes Boring Machine DRO Kit TTL Signal

Product Details:

Place of Origin:	Guangzhou, CHINA
Brand Name:	SINO
Certification:	CE,RoHS,ISO9001
Model Number:	SDS2-3VA, KA-300/KA-600

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5-8 days
Payment Terms:	T/T, L/C
Supply Ability:	3000 sets per month

Contact Now

Resolution 0.0002" SINO Three Axes Boring Machine DRO Kit TTL Signal

Description

Item Name:	Three Axes Digital Display System For TFT Boring Machine Economy	Usage:	3-axis Drilling And Machining
System:	SDS2-3VA TFT Digital Display	Scale Model:	KA-300/KA-600 Series Linear Glass Encoder
Signal:	TTL Or RS422/EIA-422-A Square Wave	Resolution:	5µm / 0.0002"
Standard Cable:	3M Flexible Metal Conduit	Meas. Travel:	Within 3000 Mm
Display:	TFT Display Unit	Voltage:	5V For Scales; 50-60Hz / 100-240V For Display
Highlight:	Three Axes Boring Machine DRO Kit , DRO Kit TTL Signal

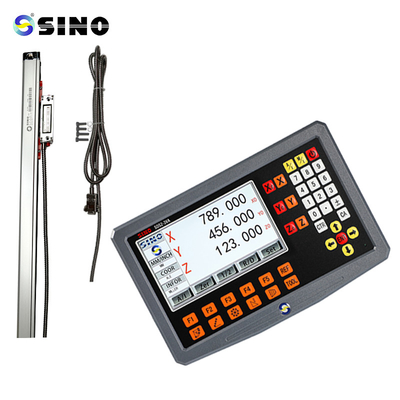

SINO three axes economy TFT boring machine digital display system SDS2-3VA with three KA linear scales

Glass encoder in the KA-300/KA-600 series, linear

Particularly designed for three axes boring machining is the TFT digital diplay system.

One TFT DRO SDS2-3VA is compatible with three linear scales from the KA series. Encoders for large machines should be of the KA-300 or KA-600 model.

Additionally, the scales' normal cable measures 3000mm; however, larger machines may require longer cords.

An extension cable should be between one and ten meters long.

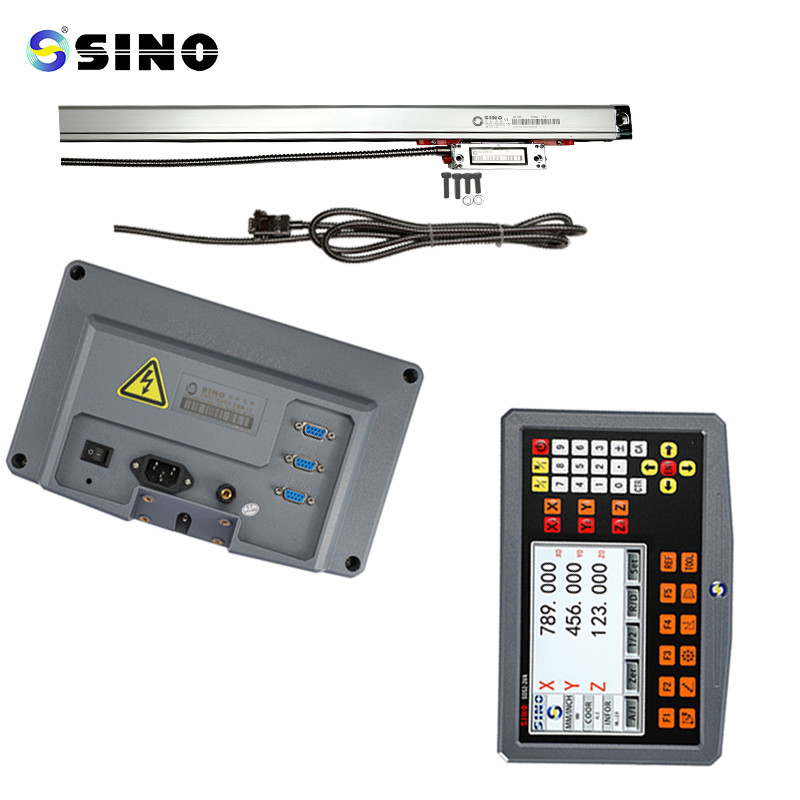

Resolution 0.0002" SINO Three Axes Boring Machine DRO Kit TTL Signal 0

Package list:

Item name	Three axes digital display system for TFT boring machine economy
Digital Readout (DRO)	SDS2-3VA
Linear scale for axis X	KA-600 / KA-300: 70-3000mm
Linear scale for axis Y	KA-600 / KA-300: 70-3000mm
Linear scale for axis Z	KA-600 / KA-300: 70-3000mm
Rack for DRO	Rack L400
Protection cover for X scale	Type D / M
Protection cover for Y scale	Type D / M
Protection cover for Z scale	Type D / M
Bracket for scales	T-bracket (3 sets)
Others	Cable / Screws / Manual

Detail Information:

Resolution 0.0002" SINO Three Axes Boring Machine DRO Kit TTL Signal 1

Resolution 0.0002" SINO Three Axes Boring Machine DRO Kit TTL Signal 2

Resolution 0.0002" SINO Three Axes Boring Machine DRO Kit TTL Signal 3

Pin Description:

Resolution 0.0002" SINO Three Axes Boring Machine DRO Kit TTL Signal 4

All linear scales were tested before delivery. Here is a sample of a scale's test report.

Resolution 0.0002" SINO Three Axes Boring Machine DRO Kit TTL Signal 5
