Two Axes Economy TFT Boring Machine Digital Display Unit

Brand Name:	SINO
Model Number:	SDS2-3VA, KA-300, KA-600
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS,ISO9001

Item Name:

Economical TFT Boring Machine With Two Axes And Digital Display Unit

Usage:

Biaxial Boring And Milling

System:

SDS2-3VA TFT Digital Display

Scale Model:

Measurement Glass: KA-600 Or KA-300

Signal:

Square Wave TTL Or RS422/EIA-422-A

Resolution:

5 / 1 / 0.5 Micron

Standard Cable:

Scale: 3000mm Long

Meas. Travel:

From 70 To 3000mm

Display:

Colorful / TFT Unit

Voltage:

100-240V / 50-60Hz For Display & 5V For Scales

Supply Ability:

3000 sets per month

Highlight:

Digital Display Unit TFT Boring Machine

Two Axes SINO Digital Readout

Product Description

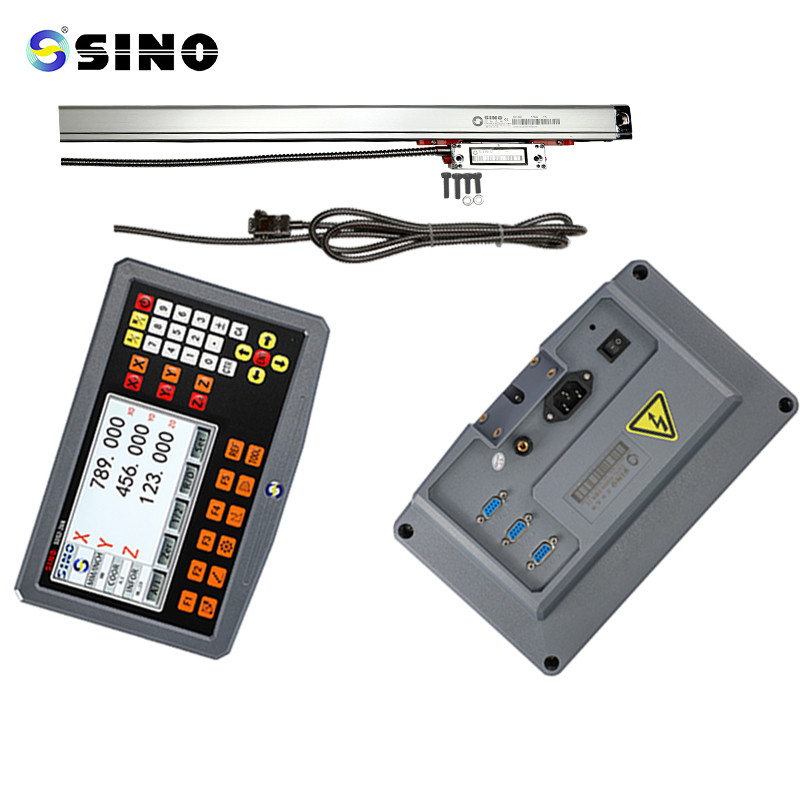

SINO two axes economy TFT boring machine digital display unit SDS2-3VA with two glass scales

This low-cost TFT digital display unit is unique for the need for two-axis boring machining.
Two glass scales from the KA series and one TFT DRO SDS2-3VA are present. Larger machines often use the KA-600 or KA-300 model.

Additionally, the scales' regular cable is just 3000mm; occasionally, larger machines require longer cords.

An extension cable should be between one and ten meters long.

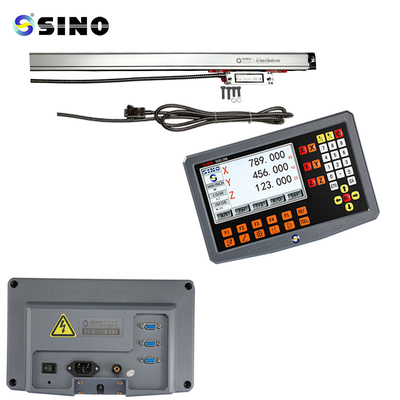

Two Axes Economy TFT Boring Machine Digital Display Unit 0

Package list:

Item name	Economical TFT boring machine with two axes and digital display unit
Digital Readout (DRO)	SDS2-3VA
Linear scale for axis X	KA-600 / KA-300: 70-3000mm
Linear scale for axis Y	KA-600 / KA-300: 70-3000mm
Rack for DRO	Rack L400
Protection cover for X scale	Type D / M
Protection cover for Y scale	Type D / M
Bracket for scales	T-bracket (2 sets)
Others	Cable / Screws / Manual

Detail Information:

Two Axes Economy TFT Boring Machine Digital Display Unit 1

Two Axes Economy TFT Boring Machine Digital Display Unit 2

Two Axes Economy TFT Boring Machine Digital Display Unit 3

Two Axes Economy TFT Boring Machine Digital Display Unit 5

Pin Description:

Two Axes Economy TFT Boring Machine Digital Display Unit 6

All linear scales were tested before delivery. Here is a sample of a scale's test report.
