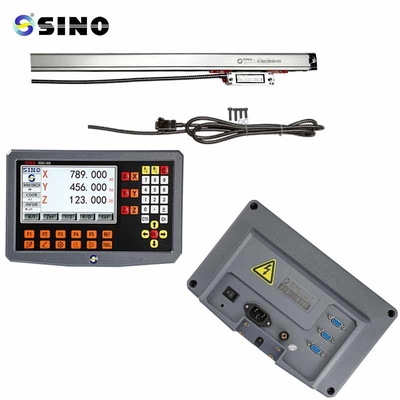

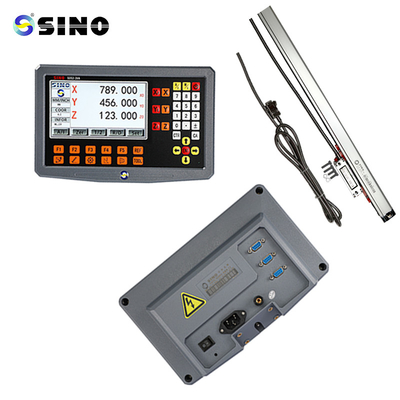

Multifunctional Linear Scale DRO System With 1µm Resolution LCD And 2 Axis DRO
  • name
  • name

Multifunctional Linear Scale DRO System With 1µm Resolution LCD And 2 Axis DRO

Brand Name: SINO
Model Number: SDS2-3VA, KA-300
MOQ: 1 set
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
Guangzhou, CHINA
Certification:
CE,RoHS
Item Name:
Cost-effective TFT LCD Grinding Machine DRO Set
Usage:
Grinding Machine
System:
DRO System SDS2-3VA
Scale Model:
KA-300
Signal:
TTL / RS422 / EIA-422-A
Resolution:
1µm / 5µm / 0.5μm
Voltage:
AC 100V-240V
Meas. Travel:
70-1020mm
Supply Ability:
3000 sets per month
Highlight:

1µm Resolution Linear Scale DRO System

,

Multifunctional Linear Scale DRO System

,

2 Axis Linear Scale DRO System

Product Description

SINO 2 Axis Economy TFT LCD Grinding Machine DRO Kit SDS2-3VA with Two 0.001mm Linear Scales





The package is unique for the needs of a two-axis grinding machine.

A single economy DRO SDS2-3VA, a three-axis TFT LCD display, has two conventional linear scales (KA-300).

For a grinding machine, the resolution should typically be 0.001mm.

Additionally, the 0.001mm scales have yellow lips that improve accuracy by moving more smoothly.



Package list:



Item name Low-cost TFT Grinding Machine DRO assembly
Digital Readout (DRO) SDS2-3VA
Linear scale for axis X KA-300: 70-1020mm
Linear scale for axis Y KA-300: 70-1020mm
Rack for DRO L400
Protection cover for X scale Type D
Protection cover for Y scale Type D
Bracket for scales T-bracket (1 set)
Others Cable / Screws / Manual
Bracket for Grinding 1 set (optioned, not standard)



Functions for grinding machine:

  1. Digital Filter Function

Bracket for Grinding:

Multifunctional Linear Scale DRO System With 1µm Resolution LCD And 2 Axis DRO 0

Special for the cylinder type grinding header, so that's not standard accessory.







Detail Information:



Multifunctional Linear Scale DRO System With 1µm Resolution LCD And 2 Axis DRO 1

Multifunctional Linear Scale DRO System With 1µm Resolution LCD And 2 Axis DRO 2

Multifunctional Linear Scale DRO System With 1µm Resolution LCD And 2 Axis DRO 3

Multifunctional Linear Scale DRO System With 1µm Resolution LCD And 2 Axis DRO 4



Pin Description:

Multifunctional Linear Scale DRO System With 1µm Resolution LCD And 2 Axis DRO 5



All linear scales were tested before delivery. Here is a sample of a scale's test report.

Multifunctional Linear Scale DRO System With 1µm Resolution LCD And 2 Axis DRO 6
