Multifunctional 100V-240V TTL Digital Read Out System For Lathe

Brand Name:	SINO
Model Number:	SDS2-3VA, KA-300, KA-500, KA-200
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

Package Includes Two Axes Economical TFT Tiny Size Lathe Machine Readout

Usage:

Two-axis Equilibrium TFT Small Lathe Placement

System:

TFT DRO SDS2-3VA In Two Axes

Scale Model:

KA-200/KA-300/KA-500 Series

Signal:

TTL / RS422 Glass Scale Connection

Resolution:

0.005/0.001/0.0005mm

DRO Mounting:

On The Electric Box Unit

Meas. Travel:

Glass Scale Travel: 70-1020mm

Display:

3 Axes TFT Display

Voltage:

Display Input Power: 100V - 240V

Supply Ability:

3000 sets per month

Highlight:

100V-240V Digital Read Out System

Multifunctional Digital Read Out System

Lathe Digital Read Out System

Product Description

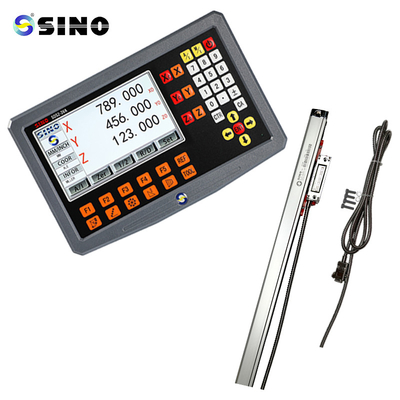

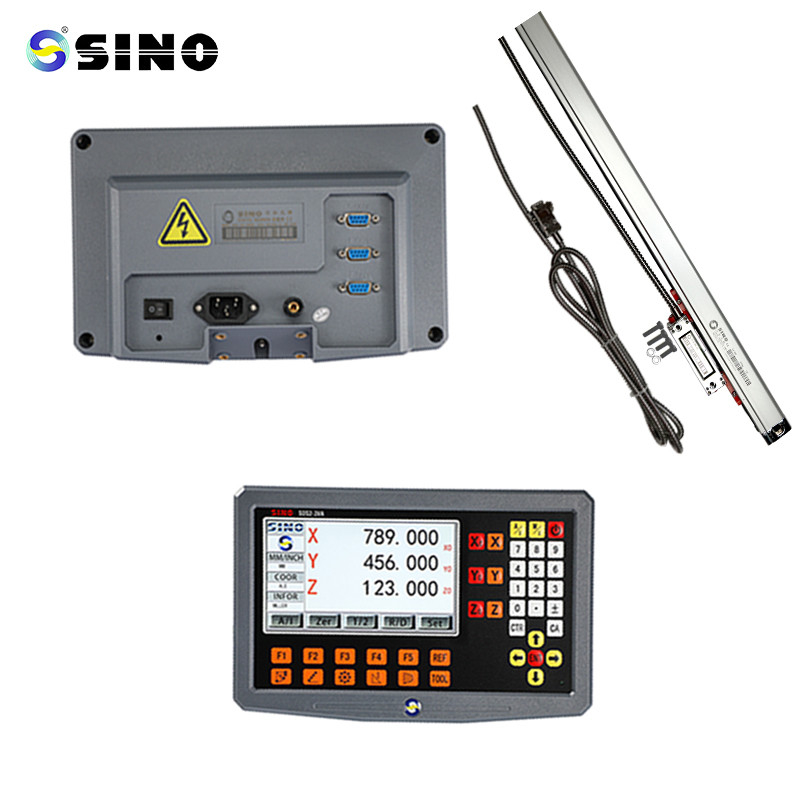

SINO 2 axes economy TFT mini lathe machine readout package SDS2-3VA with two mini linear glass scales

The readout package is unique to the machining of small lathes.

A specific base should be used to mount the TFT readout SDS2-3VA on the electric box unit.
When it comes to small installation spaces, the KA-500 or KA-200 super compact glass sales are suitable.

Package list:

Item name	TFT small lathe machine readout package with two axes
Digital Readout (DRO)	SDS2-3VA
Linear scale for axis Z	KA-200 / KA-500 70-570mm
Linear scale for axis X	KA-200 / KA-500 70-570mm
Rack for DRO	Base for lathe
Protection cover for Z scale	Type H / Y
Protection cover for X scale	Type H / Y
Bracket for scales	T-bracket (1 set) / KA-500 bracket (1 pc)
Others	Cable / Screws / Manual

Functions for lathe machine:

Radius / Diameter Conversion
Tool Diameter Compensation
Taper Measurement
200 Tools Storeroom
