SDS2-3VA DRO System Durable Handheld Three-Axis DRO For Milling Machine With TFT Screen

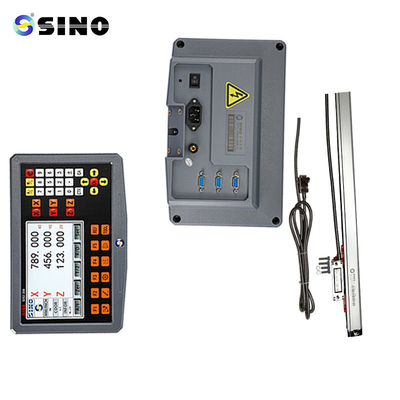

Large Image : SDS2-3VA DRO System Durable Handheld Three-Axis DRO For Milling Machine With TFT Screen

Product Details:

Place of Origin:	Guangzhou, CHINA
Brand Name:	SINO
Certification:	CE,RoHS
Model Number:	SDS2-3VA, KA-300, KA-500, KA-600

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5-8 days
Payment Terms:	T/T, L/C
Supply Ability:	3000 sets per month

Contact Now

SDS2-3VA DRO System Durable Handheld Three-Axis DRO For Milling Machine With TFT Screen

Description

Item Name:	Digital Readout Equipment For Big Size Lathe Machine With Three Axes Economical TFT	Usage:	Proposed Three-axis Lathe Machine
System:	TFT DRO SDS2-3VA, 3 Axis	Scale Model:	KA-600, KA-300 Or KA-500 Series
Signal:	TTL / RS422/EIA-422-A	Resolution:	0.5, 1 Or 5 Micron
DRO Mounting:	Moving Box	Meas. Travel:	From 70 To 3000mm
Display:	TFT Screen Display	Voltage:	Digital Display: 100–240 Volts
Highlight:	Milling Machine DRO System , Handheld Three-Axis DRO , TFT Screen DRO System

SINO 3 axis economy TFT lathe machine digital readout kit SDS2-3VA mounting on slide box with three linear scales

The proposed three-axis lathe machine is the only one with this digital readout package.

It is recommended to put this TFT digital readout SDS2-3VA on the lathe's moving box.

The KA-600 should represent axis Z, while the KA-300 or KA-500 should represent axes X and Z1.

Package list:

Item name	Large size 3-axis TFT lathe machine DRO kit
Digital Readout (DRO)	SDS2-3VA
Linear scale for axis Z	KA-300 / KA-600 820-3000mm
Linear scale for axis Z1	KA-300 / KA-500 270-520mm
Linear scale for axis X	KA-300 / KA-500 270-520mm
Rack for DRO	Rack for lathe (50C)
Protection cover for Z scale	Type D / M
Protection cover for Z1 scale	Type D / H
Protection cover for X scale	Type D / H
Bracket for scales	T-bracket (1 set) / KA-500 bracket (2 pcs)
Others	Cable / Screws / Manual

Functions for lathe machine:

Radius / Diameter Conversion
Tool Diameter Compensation
Taper Measurement
200 Tools Storeroom

Detail Information:

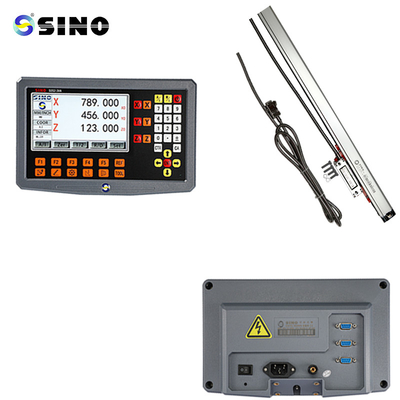

SDS2-3VA DRO System Durable Handheld Three-Axis DRO For Milling Machine With TFT Screen 0

SDS2-3VA DRO System Durable Handheld Three-Axis DRO For Milling Machine With TFT Screen 1

SDS2-3VA DRO System Durable Handheld Three-Axis DRO For Milling Machine With TFT Screen 2

SDS2-3VA DRO System Durable Handheld Three-Axis DRO For Milling Machine With TFT Screen 3

SDS2-3VA DRO System Durable Handheld Three-Axis DRO For Milling Machine With TFT Screen 5

Pin Description:

SDS2-3VA DRO System Durable Handheld Three-Axis DRO For Milling Machine With TFT Screen 6

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SDS2-3VA DRO System Durable Handheld Three-Axis DRO For Milling Machine With TFT Screen 7

A DRO is placing the following sample on a lathe's slide box:

SDS2-3VA DRO System Durable Handheld Three-Axis DRO For Milling Machine With TFT Screen 8

This is an example of a KA-500 linear encoder on the lathe's X axis:

This is an example of a KA-500 linear encoder on the lathe's X axis: SDS2-3VA DRO System Durable Handheld Three-Axis DRO For Milling Machine With TFT Screen 10
