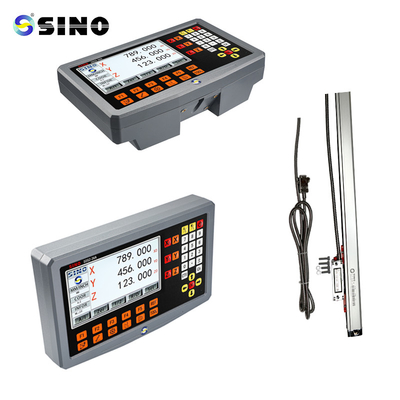

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500

Large Image : For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500

Product Details:

Place of Origin:	Guangzhou, CHINA
Brand Name:	SINO
Certification:	CE, RoHS
Model Number:	SDS2-3VA, KA-300, KA-500, KA-600

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5-8 days
Payment Terms:	T/T, L/C
Supply Ability:	3000 sets per month

Contact Now

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500

Description

Item Name:	For Lathe Machine, SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500	Usage:	Manual Lathe Installation In Three Axes
System:	Three Axes SDS2-3VA TFT DRO	Scale Model:	KA Series: KA-300/KA-500/KA-600
Signal:	Grating Ruler: TTL / RS422	Resolution:	Linear Scale Ruler: 0.005mm/0.001mm
DRO Mounting:	On The Lathe Electric Box	Meas. Travel:	Grating Ruler: 70-3000mm
Display:	Colorful TFT Screen	Voltage:	100V - 240V DRO / 5V Ruler
Highlight:	Lathe Machine 3 Axis Digital Readout , TFT Screen 3 Axis Digital Readout

SINO 3 axes economy TFT lathe machine digital readout set SDS2-3VA mounting on electric box with three grating rulers

Particular to the three-axis lathe machine location is the digital readout set.

It is recommended to put the TFT screen DRO SDS2-3VA on the electrical box of the lathe.

For axis Z, use the KA-600 grating ruler; for axis X and Z1, use the KA-300 or KA-500 grating rulers.

The grating rulers come with a normal 3M cable, however occasionally an extension cable is needed for installing big lathes.

The optional accessory is an extension cable with a length of 1 to 10 meters.

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500 0

Package list:

Item name	3 axis TFT lathe machine digital readout set
Digital Readout (DRO)	SDS2-3VA
Linear scale for axis Z	KA-300 / KA-600 820-3000mm
Linear scale for axis Z1	KA-500 / KA-300 270-520mm
Linear scale for axis X	KA-500 / KA-300 270-520mm
Rack for DRO	Rack for lathe
Protection cover for Z scale	Type M
Protection cover for Z1 scale	Type H / D
Protection cover for X scale	Type H / D
Bracket for scales	T-bracket (1set) / KA-500 bracket (2 pcs)
Others	Cable / Screws / Manual

Functions for lathe machine:

Radius / Diameter Conversion
Tool Diameter Compensation
Taper Measurement
200 Tools Storeroom

Detail Information:

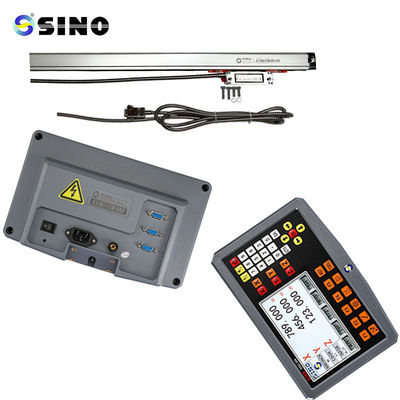

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500 1

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500 2

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500 3

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500 5

Pin Description:

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500 6

All linear scales were tested before delivery. Here is a sample of a scale's test report.

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500 7

It's a sample that a DRO is mounting on the electric box of a lathe:

It's a sample that KA-500 linear encoder on axis X of lathe:

It's a sample that KA-300 linear encoder on axis Z of lathe:

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500 10
