Lathe Machine DRO
>
For 3M Grating Rulers SINO SDS2-3VA Digital Readout Manual TFT Large 2 Axis DRO Kit
All Category

SINO Digital Readout System

Digital Readout Kits

3 Axis Digital Readout

CNC Vertical Machining Center

2 Axis Digital Readout

Single Axis Digital Readout

Glass Linear Encoder

Magnetic Linear Encoder

Milling Machine DRO

Lathe Machine DRO

EDM Machine DRO

Boring Machine DRO

Optical Angle Encoder

CNC Machine Accessories
For 3M Grating Rulers SINO SDS2-3VA Digital Readout Manual TFT Large 2 Axis DRO Kit
  • name
  • name

For 3M Grating Rulers SINO SDS2-3VA Digital Readout Manual TFT Large 2 Axis DRO Kit

Brand Name: SINO
Model Number: SDS2-3VA, KA-300, KA-500, KA-600, KA-200
MOQ: 1 set
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
Guangzhou, CHINA
Certification:
CE,RoHS
Item Name:
Economy TFT Big Size Lathe Machine DRO Set With Two Axes
Usage:
Set Of Two-axis Manual Lathes
System:
TFT DRO SDS2-3VA In Two Axes
Scale Model:
KA-300/KA-500/KA-600 Grating Ruler
Signal:
Linear Scale Ruler: RS422/EIA-422-A/TTL
Resolution:
Grating Ruler: 0.001mm/0.005mm
DRO Mounting:
Electric Box With Rack For Lathe
Meas. Travel:
Grating Ruler Travel: 70-3000mm
Display:
Color TFT Unit
Voltage:
Grating Ruler: 5V, DRO: 100-240V
Supply Ability:
3000 sets per month
Highlight:

2 Axis DRO Kit

,

Manual TFT DRO Kit

,

3M Grating Rulers DRO Kit

Product Description

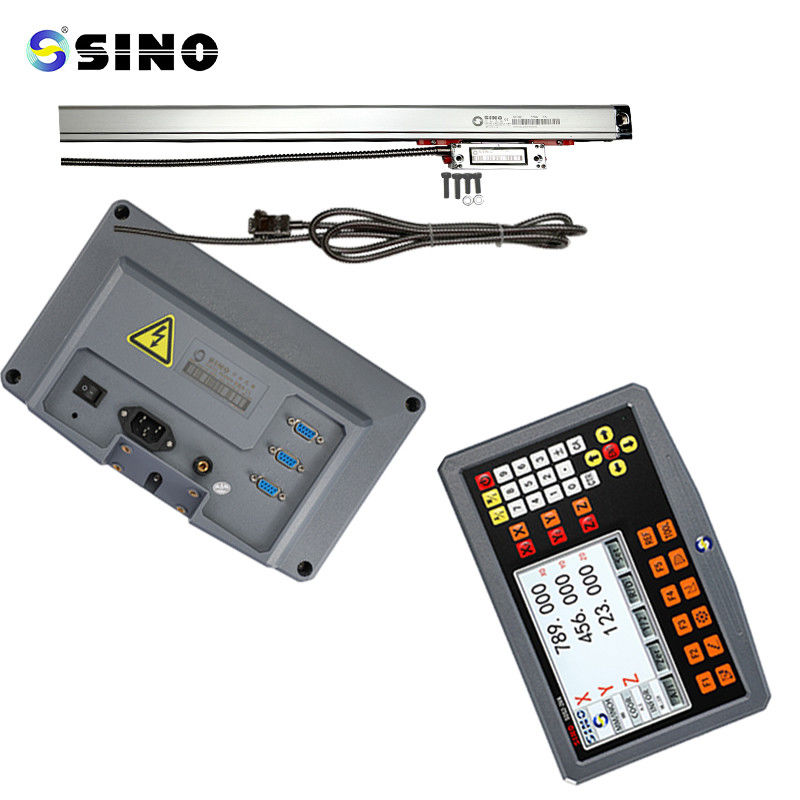

SINO 2 axes economy TFT large size lathe machine DRO kit SDS2-3VA mounting on electric box with two grating rulers



For the two-axis lathe machine placement, this DRO set is unique.

The TFT DRO SDS2-3VA ought to be installed on the electrical box of the lathe.

For axis Z, use the KA-600 grating ruler; for axis X, use the KA-300 or KA-500 grating rulers.



The grating rulers come with a normal 3M cable, however occasionally an extension cable is needed for installing big lathes.

The optional accessory is an extension cable with a length of 1 to 10 meters.





Package list:



Item name Large size, two-axis TFT lathe machine DRO set
Digital Readout (DRO) SDS2-3VA
Linear scale for axis Z KA-600 1000-3000mm
Linear scale for axis X KA-500 / KA-300 270-520mm
Rack for DRO Rack for lathe
Protection cover for Z scale Type M
Protection cover for X scale Type H / D
Bracket for scales

T-bracket (1set) / KA-500 bracket (1pc)
Others Cable / Screws / Manual



Functions for lathe machine:

  1. Radius / Diameter Conversion
  2. Tool Diameter Compensation
  3. Taper Measurement
  4. 200 Tools Storeroom

Detail Information:



For 3M Grating Rulers SINO SDS2-3VA Digital Readout Manual TFT Large 2 Axis DRO Kit 0

For 3M Grating Rulers SINO SDS2-3VA Digital Readout Manual TFT Large 2 Axis DRO Kit 1

For 3M Grating Rulers SINO SDS2-3VA Digital Readout Manual TFT Large 2 Axis DRO Kit 2

For 3M Grating Rulers SINO SDS2-3VA Digital Readout Manual TFT Large 2 Axis DRO Kit 3For 3M Grating Rulers SINO SDS2-3VA Digital Readout Manual TFT Large 2 Axis DRO Kit 4

For 3M Grating Rulers SINO SDS2-3VA Digital Readout Manual TFT Large 2 Axis DRO Kit 5



Pin Description:

For 3M Grating Rulers SINO SDS2-3VA Digital Readout Manual TFT Large 2 Axis DRO Kit 6



All linear scales were tested before delivery. Here is a sample of a scale's test report.

For 3M Grating Rulers SINO SDS2-3VA Digital Readout Manual TFT Large 2 Axis DRO Kit 7

It's a sample that a DRO is mounting on the electric box of a lathe:

For 3M Grating Rulers SINO SDS2-3VA Digital Readout Manual TFT Large 2 Axis DRO Kit 8

It's a sample that KA-500 linear encoder on axis X of lathe:

For 3M Grating Rulers SINO SDS2-3VA Digital Readout Manual TFT Large 2 Axis DRO Kit 9

It's a sample that KA-300 linear encoder on axis Z of lathe:

For 3M Grating Rulers SINO SDS2-3VA Digital Readout Manual TFT Large 2 Axis DRO Kit 10
