1um SINO DRO With An Easy-To-Use Interface And Customizable Milling Machine Parameters

1um SINO DRO with a User-Friendly, Intuitive Interface and Configurable Milling Machine Settings

These features facilitate the use of the graphics function. With a 16- and 32-bit calculator, it is the first facility in China to use a DRO system. It also boasts one of the highest input frequencies in the world, reaching up to 5 MHZ with A/B.

Features:

Three Axis Capability: The SINO DRO supports up to three axes, allowing it to measure and track the location of three machine axes simultaneously.
The Digital Readout Unit (DRO) is a tool that shows precise numerical readings of the machine axes and allows for real-time monitoring.TTL Input Signals: Transistor-transistor logic, or TTL, input signals are often used in industrial settings and provide reliable and precise data transmission. They are used by the DRO system for this reason.
Compatibility: The system can be used for a variety of machining applications because it is made to function with both lathes and milling machines.
User-Friendly Interface: It is simple to comprehend and operate the DRO device thanks to its user-friendly interface.

Usage:

Installation: Position the DRO unit in a convenient location near to your milling machine or lathe for easy viewing and access.
Connection: Attach the DRO device to the TTL input signals of your machine's axes using the included cables and connectors.

Calibration: Perform the necessary calibration procedures to ensure accurate measurements. For this, it might be essential to zero the scales and set reference points.Operation: After turning on the machine, move the axes while paying attention to the DRO unit's position readings. The DRO device will allow you to precisely position your workpiece or perform machining operations by providing you with real-time measurements.

SDS2-3VA DRO System Features:

All Chinese optical linear glass scales are compatible with the LCD display, which is frequently used in drilling, boring, milling, and lathe apparatus.
Because they can switch between Chinese and English on a single display, lathes and milling machines are more beneficial to consumers from a range of countries.

Payment Restitution for Linear Errors

Be Aware of Power Outages

Time shift for bed

computations involving mathematics

Interface option for RS-232-C

Specifications of SINO SDS2-3VA digital readout system + linear scale encoder


A high-performance universal display console with milling, lathe, and grinding capabilities is provided by the SDS2-3VA.

This three-axis type supports the connection of up to three linear encoders. To combine axes or modify the input to fit equipment made by other manufacturers, there are more interfaces available. Please refer to the compatibility guide for encoders below.

strong die cast casing with a front panel membrane that is both haptic and long-lasting.

large, easily readable LCD screen.

PCD, line of holes, 200 zero memory, radius/diameter display, and tool offsets are among the features.

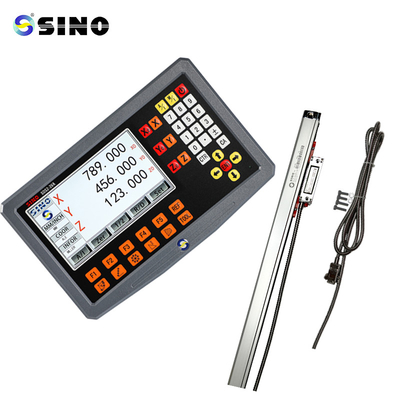

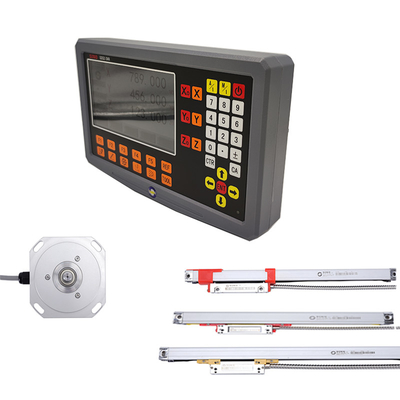

Product image /photos:

The rack in the picture is optioned, not standard product.
