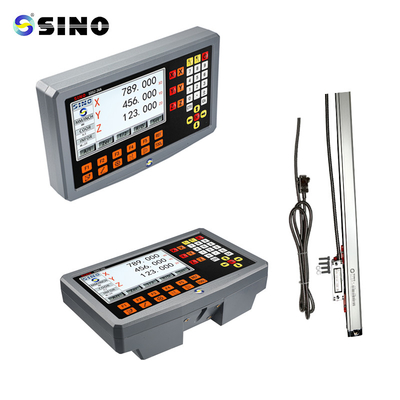

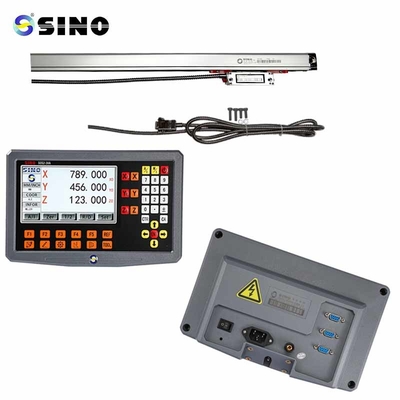

DRO Kits For Milling Machines With 50–60 Hz TTL Signal And 170 mm Mill Head
  • name
  • name

DRO Kits For Milling Machines With 50–60 Hz TTL Signal And 170 mm Mill Head

Brand Name: SINO
Model Number: SDS2-3VA, KA-300, KA-500
MOQ: 1 set
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
Guangzhou, CHINA
Certification:
CE,RoHS
Item Name:
Cost-effective TFT Digital Display Milling Head Set
Usage:
Positioning Of The Axis Z Milling Head
System:
Positioning Of The Axis Z Milling Head
Scale Model:
KA-300 And KA-500
Signal:
Input TTL / RS422
Resolution:
Ruler: 0.005mm/0.001mm
Voltage:
AC 100V-240V / 50-60 Hz
Meas. Travel:
Worktable: 70-1020mm, Mill Head: 170mm
Supply Ability:
3000 sets per month
Highlight:

Milling Machines DRO Kits

,

60Hz TTL Signal DRO Kits

,

170 mm Mill Head DRO Kits

Product Description

SINO 3 axis economy milling machine TFT LCD DRO kit SDS2-3VA for aixs Z milling head linear ruler



This package is unique for the needs of a three-axis mill machine, and the axis Z is unique for the milling head's ruler.



A single economy Three-dimensional TFT LCD display DRO SDS2-3VA, accompanied with a tiny ruler KA-500 and two regular linear rulers KA-300.



Package list:



Item name economics Kit for TFT DRO milling head
Digital Readout (DRO) SDS2-3VA
Linear scale for axis X KA-300: 670-1020mm
Linear scale for axis Y KA-300: 370-570mm
Linear scale for axis Z KA-500: 170mm
Rack for DRO L400
Protection cover for X scale Type C
Protection cover for Y scale Type D
Accessory for Z Milling head KA-500 milling head accessory (1 set)
Bracket for scales T-bracket (1 set)
Others Cable / Screws / Manual



Functions for milling machine:

  1. mid-split
  2. Sleek "R"
  3. Uncomplicated "R"
  4. Line of Sight Hole Positioning
  5. PCD Circle Divided Equidistantly
  6. Processing Bevels
  7. Inner Chamber, Rectangular Advancement in Machining

Detail Information:



DRO Kits For Milling Machines With 50–60 Hz TTL Signal And 170 mm Mill Head 0

DRO Kits For Milling Machines With 50–60 Hz TTL Signal And 170 mm Mill Head 1

DRO Kits For Milling Machines With 50–60 Hz TTL Signal And 170 mm Mill Head 2



Pin Description:

DRO Kits For Milling Machines With 50–60 Hz TTL Signal And 170 mm Mill Head 3



All linear scales were tested before delivery. Here is a sample of a scale's test report.

DRO Kits For Milling Machines With 50–60 Hz TTL Signal And 170 mm Mill Head 4
