DRO Digital Readout 2 Axis RS422 Signal SINO TFT Lathe Machine

Brand Name:	SINO
Model Number:	SDS2-3VA, KA-300, KA-500
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

Economy TFT Lathe DRO Device With Two Axes

Usage:

Lathe Machine, Milling Machine, Grinding Machine

System:

DRO SDS2-3VA Digital Reading System With Three Axes

Scale Model:

KA-300 Or KA-500 Series

Signal:

KA Series Ouput: TTL / RS422

Resolution:

0.005mm (5µm)

DRO Mounting:

Electric Box By A Lathe Rack

Meas. Travel:

KA-300: 770~1020mm / KA-500: 270~520mm

Display:

Colorful TFT LCD Screen

Voltage:

100~240V / 5V

Supply Ability:

3000 sets per month

Highlight:

RS422 Signal Lathe Machine DRO

SINO TFT Lathe Machine DRO

2 Axis Lathe Machine DRO

Product Description

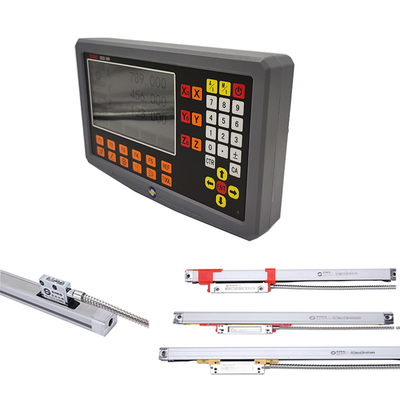

SINO 2 axis economy TFT lathe DRO unit SDS2-3VA mounting on electric box with two linear encoders

Particular to a two-axis lathe machine is the DRO unit.
The TFT DRO SDS2-3VA ought to be installed next to a lathe rack on the electrical box of the lathe.
A linear encoder for axis Z should be KA-300, and one for axis X should be KA-500.

Package list:

Item name	DRO unit for two-axis TFT lathe machine
Digital Readout (DRO)	SDS2-3VA
Linear scale for axis Z	KA-300 720-1020mm
Linear scale for axis X	KA-500 270-520mm
Rack for DRO	Rack for lathe
Protection cover for Z scale	Type D
Protection cover for X scale	Type H
Bracket for scales	T-bracket (1set) / KA-500 bracket (1pc)
Others	Cable / Screws / Manual

Functions for lathe machine:

Diameter to Radius Conversion
Tool Diameter Adjustment
Measurement of Tapers
200 Tools Storage Room

Detail Information:

DRO Digital Readout 2 Axis RS422 Signal SINO TFT Lathe Machine 0

DRO Digital Readout 2 Axis RS422 Signal SINO TFT Lathe Machine 1

DRO Digital Readout 2 Axis RS422 Signal SINO TFT Lathe Machine 3

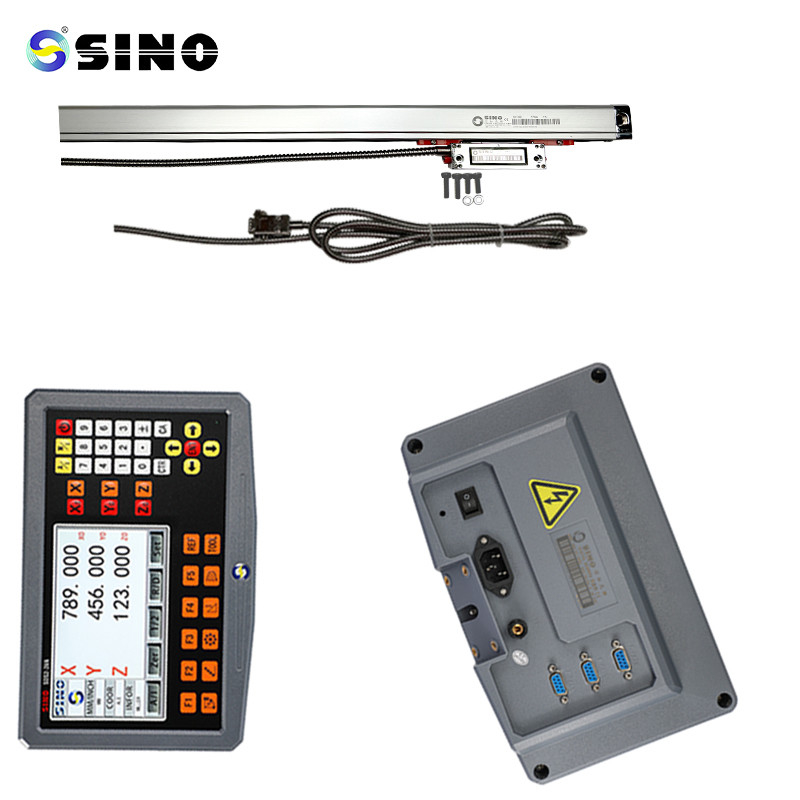

Pin Description:
