SDS2-3VA Dro High-Resolution Digital Readout Displays In Various Metal Operations

SDS2-3VA Dro High-Resolution Digital Readout Display Utilization in Diverse Metal Operations

A brief introduction to SINO SDS2-3VA 3-axis DRO digital readout system:

Utilizing the graphics function is made easier by these characteristics. It is the first facility in China to employ a DRO system, and it has a 16- and 32-bit calculator. With A/B, it can reach up to 5 MHZ, making it one of the highest input frequencies in the world.
The SINO SDS2-3VA is a three-axis digital readout meter that is compatible with the KA300 glass linear ruler and supports the TTL/RS422 signal. This digital readout meter is designed to accurately display and measure the location of machine tool axes for a range of applications. While the TTL/RS422 signal guarantees quick and dependable communication between the ruler and the readout meter, the KA300 glass linear ruler offers accurate and dependable position feedback.

The SINO SDS2-3VA digital readout meter guarantees accurate measurement and positioning of the machine instrument axes, producing accurate results for machining processes.
KA300 Glass Linear Ruler: This ruler provides reliable position feedback in even the most demanding industrial settings due to its remarkable stability and longevity.
Fast and dependable communication via the KA300 glass linear ruler is ensured by the digital readout meter's TTL and RS422 signal interface.
User-Friendly design: Position information is simple to read and understand thanks to the digital readout meter's user-friendly design, which includes clear numerical displays.
Versatile Configuration: Because the device supports three axes, users may measure and track the location of several machine tool axes at once.

SDS2-3VA DRO Digital Readout Systems Functions:

PCD circumferential division (fits milling machines and spark testers)
Involute chamber machining function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)


SINO SDS2-3VA digital readout system specifications plus a glass linear scale

capabilities that are preset: The SDS2-3VA often offers capabilities that let the user to store and retrieve specific measurement values. This feature is useful for doing repetitive machining tasks that call for repeating precise measurements.

Error Compensation: The system may incorporate error compensation capabilities to account for measurement errors or flaws in machine tools. By calibrating the system and applying compensating values, the system can increase measurement accuracy.

Data Interface: To facilitate data transfer and external device contact, the SDS2-3VA digital readout system may include data ports like USB or RS-232. This can make it easier to log data for computer system connection or quality control goals.

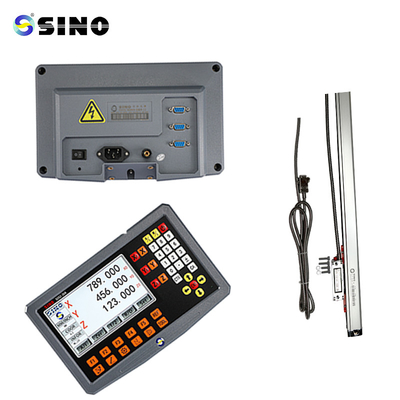

Product image /photos:

The rack in the picture is optioned, not standard product.
