SINO SDS3-1 Single Axis Digital Display System With Linear Encoder For Lathe Milling Grinding Machine

Brand Name:	SINO
Model Number:	SDS3-1, KA300, Ka500
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

SINO SDS3-1 Single Axis Digital Display System

Number Of Axis:

One Axis DRO System

Color:

Grey/black

Signal:

TTL / RS422

Voltage:

AC100-240V / 50-60Hz

Suitable For:

Milling Lathe, Boring Machine, EDM Machine

Resolution:

1um,5um,0.5um

Weight:

2KG

Connect:

KA300, KA600, KA500

Function:

For Milling Grinding Machine

Material:

Metal

Voltage Range:

50HZ~60HZ

Supply Ability:

1000 pcs per month

Highlight:

Single Axis Digital Display System

Linear Encoder Digital Display System

Product Description

SINO SDS3-1 Single Axis Digital Display System With Linear Encoder For Lathe Milling Grinding Machine

The SDS3-1 is a compact digital readout system designed with robust features for accurate single-axis measurement and position control.

Description:

The SDS3-1 DRO boasts strong functionality for single-axis measurement. As the smallest model in its series, it caters to clients needing precise measurements with powerful capabilities. It supports connection to one linear encoder and provides interfaces for summing two encoders into a single input, as well as converting inputs for compatibility with other manufacturers' equipment. For detailed encoder compatibility, please refer to the provided compatibility guide.

】

Specifications of SINO SDS3-1 digital readout system + Grating Ruler

Item: SINO SDS3-1 Digital Readout System
Type: Luxury Type DRO
Input: One axis
Input Signal: TTL/RS-422
Housing: Metal
Application: Compatible with glass scales on manual or CNC lathes, milling machines, drilling machines, grinding equipment, and EDM.
Usage: Position measuring instrument for single-axis grating scales.
Certification: CE, ROHS, ISO9001
Sealing Protection Class: IP67
Features:
Sturdy and durable design
Simple installation
User-friendly interface
Machinery Test Report: Provided

Feature:

The SDS3-1 DRO is compact and easy to install, ensuring compatibility with various machine types. It features closed micro-motion metal membrane switches for its keys, arranged in a square layout on the panel. The ergonomic design, with an optimized operational height, enhances usability, offering a tactile feedback experience for efficient and comfortable operation.

Packaging List :

1 PC	3 Axis LED digital readout SDS3-1
1 PC	Protection cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

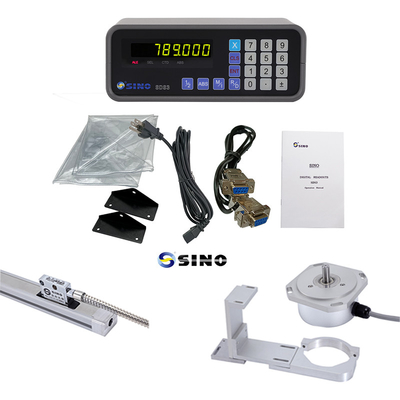

SINO SDS3-1 Single Axis Digital Display System With Linear Encoder For Lathe Milling Grinding Machine 0

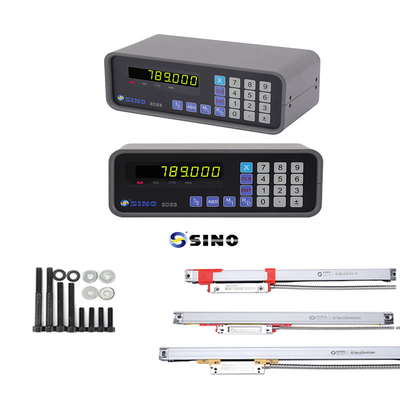

SINO SDS3-1 Single Axis Digital Display System With Linear Encoder For Lathe Milling Grinding Machine 1

The rack in the picture is optioned, not standard product.

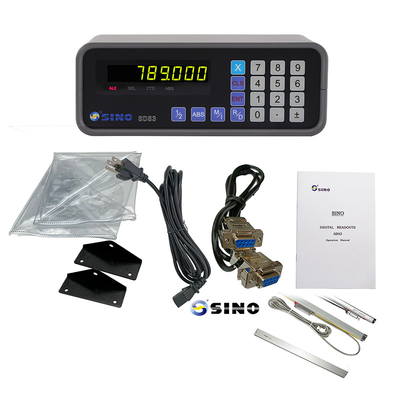

SINO SDS3-1 Single Axis Digital Display System With Linear Encoder For Lathe Milling Grinding Machine 2
