SINO 2 Axes Digital Readout System SDS2MS DRO Multifunctional With Glass Linear Scale For Lathe Machine

SINO 2 Axes Digital Readout System SDS2MS DRO Multifunctional With Glass Linear Scale For Lathe Machine

The LED DRO SDS2MS is an economical version of the SDS6 series, equipped with advanced 16-bit SCM technology that supports high-frequency A/B signals up to 5MHz. It is designed for a variety of 2-axis displays, making it ideal for high-precision coordinate boring machines, floor boring machines, grinding machines, lathes, and milling machines. The lightweight plastic case contributes to reduced transportation costs, enhancing its overall practicality and efficiency.

Upgraded Functions:

The SDS2 series calculators enhance measurement precision by allowing users to adjust decimal settings to three, four, or five digits. This flexibility is crucial for various applications, as it can accommodate different precision requirements.

Additionally, the system can compensate for non-linear errors across up to 40 sections, significantly improving positioning accuracy.

In inch mode, users can choose between four and five decimal digits: four digits are suitable for long-scale requirements, while five digits provide a high-precision display for more demanding applications. This adaptability makes the SDS2 series a versatile tool for precise measurements.

Specifications :

1. Supply Voltage Range: AC 80V - 260V, 50-60Hz (US plug available)
2. Power Consumption: 15VA
3. Operating Temperature Range: 0 to 45 degrees Celsius
4. Storage Temperature Range: -30 to 70 degrees Celsius
5. Readout Allowed Input Signal: TTL/RS422 square wave
6. Allowable Input Signal Frequency: Less than 5 MHz
7. Maximum Resolution of Digital Display Length: 0.5 µm
8. Minimum Resolution of Digital Display Angle: 0.0001 per pulse

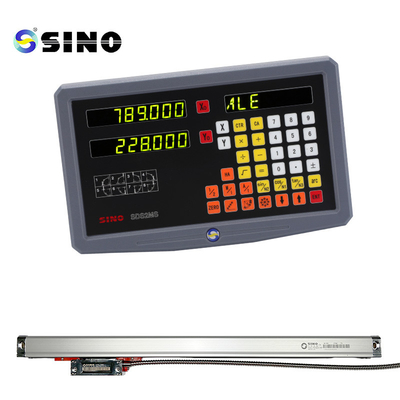

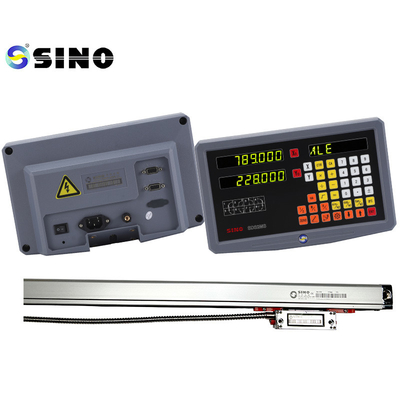

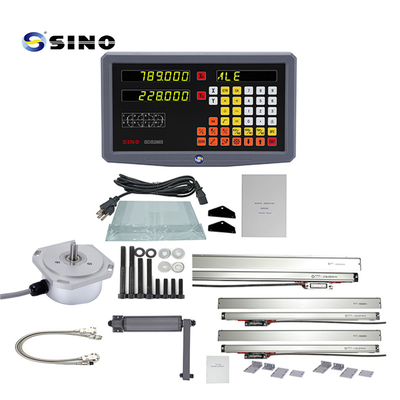

Product image /photos:

The rack in the picture is optioned, not standard product.
