AC220V 110V 70-1020mm Linear Scale Encoder Grating Ruler With LCD DRO 3-Axis Digital Readout

Lathe Milling 3 Axis LCD DRO Digital Readout AC220V/110V 50-1000mm Linear Scale Encoder Grating Ruler​

A sophisticated electronic measurement tool, the SDS2-3VA digital readout system is mostly utilized in metalworking and machining applications. It is intended to give precise and accurate measurements of angles, linear distances, and other parameters on machine tools including grinders, lathes, and milling machines.

SDS2-3VA DRO Digital Readout Systems Functions:

PCD circumferential division (suitable for milling machines and spark testers)
Involute chamber machining function (suitable for milling machines)
Angular surface processing and bevel machining (unique to milling machines)

N3 function (unique to milling machines)

Diagonal boring using a milling machine

R-arc function (unique to milling machines)

Taper measurement function (only for lathes)

200-tool set (suitable to lathes)

Function that prevents dithering (applicable to grinding machines)

SINO SDS2-3VA digital readout system specifications plus a glass linear scale

Digital Display: The system features a digital display unit that provides clear and easy-to-read measurements. It typically uses LCD or LED technology to present the measurement values.

Linear and Angular Measurements: The SDS2-3VA can measure linear distances along the X, Y, and Z axes of a machine tool. It can also measure angular positions, allowing for precise angle measurements and rotations.

purposes.

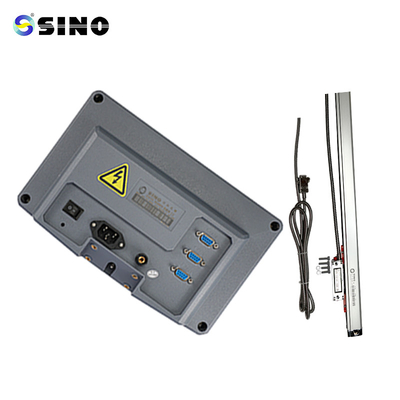

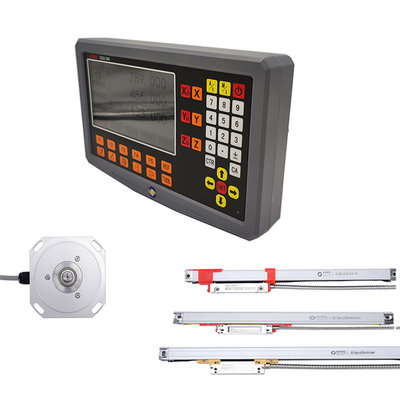

Product image /photos:

The rack in the picture is optioned, not standard product.
