SINO 3 Axis Digital Readout SDS2-3VA 5 Micron Linear Encoders For Measurement

SINO Digital Readout SDS2-3VA 3 Axis Display Three Axis Digital Readout Dro Linear Scale 5micron Linear Encoder

Product Description:

The SINO Digital Readout SDS2-3VA is a three-axis display for accurate measurements in a variety of industrial applications. It comes with three linear scales with 5-micron linear encoders, ensuring incredibly precise and reliable position readings.

Key Features:

Three-Axis Display: The SDS2-3VA digital readout (DRO) features a thorough and user-friendly X, Y, and Z axis display. It provides precise information on the position of the machine's components by enabling the simultaneous measurement and monitoring of these axes.

High Accuracy:

DRO system's 5-micron linear encoders offer incredibly precise position detection. This level of precision ensures precise measurements and makes it easier to attain tight tolerances during machining operations.

Digital Readout Functionality: With its digital readout capability, the SDS2-3VA presents position readings in a legible and intelligible manner. The numerical display not only eliminates interpretation issues but also makes it possible for operators to quickly and accurately follow the movement of machine parts.This electronic reading device includes three linear scales, one for each axis. The linear scales are responsible for sensing linear movement and transmitting the location data to the display unit. Their long-term accuracy and durability are ensured by their remarkable resistance to external factors such as coolant, oil, and dust.

User-Friendly Interface: The SDS2-3VA has an intuitive user interface that makes navigating and using the system's functionality simple. Users may easily make adjustments, calibrate the scales, set reference points, and switch between measuring systems thanks to the controls' easy design.

The 5-micron linear encoders of the DRO system provide extremely accurate position detection. During machining processes, this degree of accuracy guarantees accurate measurements and facilitates the achievement of tight tolerances.

Digital Readout Functionality: The SDS2-3VA provides position readings in an understandable and readable format thanks to its digital readout functionality. In addition to removing interpretation problems, the numerical display enables operators to precisely and swiftly track the motion of machine components.There are three linear scales on this electronic reading gadget, one for each axis. Sensing linear movement and sending the position information to the display unit are the functions of the linear scales. Their exceptional resistance to environmental elements including coolant, oil, and dust guarantees their long-term precision and endurance.

SINO SDS2-3VA digital readout system specifications, including linear scale encoder

The SDS2-3VA is a high-performance universal display console that may be used for milling, latheing, and grinding.

Up to three linear encoders can be connected to this three-axis kind. There are other interfaces available to combine axes or alter the input to fit equipment manufactured by other manufacturers. Please see the encoder compatibility guide below.

robust die cast housing with a long-lasting and haptic front panel membrane.

big LCD panel with good readability.

Among the features are PCD, line of holes, 200 zero memory, radius/diameter display, and tool offsets.

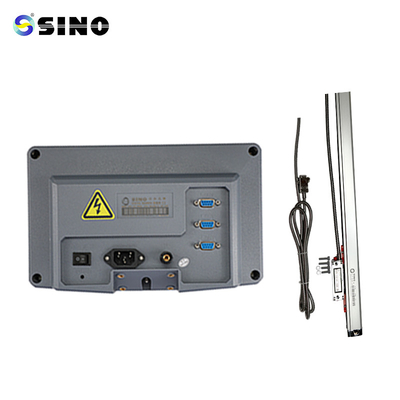

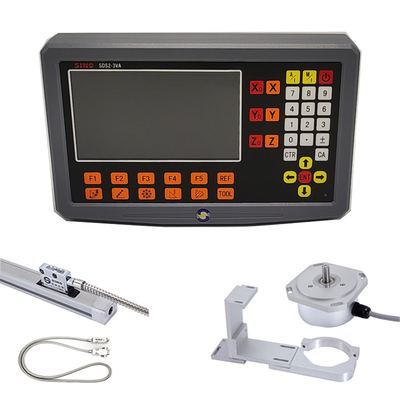

Product image /photos:

The rack in the picture is optioned, not standard product.
