The graphics function is made easier to utilize by these characteristics. It is the world's most sophisticated factory, with an input frequency of up to 5 MHZ with A/B, and the first in China to employ a 16- and 32-bit calculator in a DRO system.

Features:

Three Axis Capability: You may monitor and measure the position of several machine axes at once with the SINO DRO system's support for up to three axes.The system makes use of digital linear scales, which are precise measuring tools that translate linear displacement into electrical signals.
Screen Readout DRO Display: The DRO display device presents the measured position measurements in a digital format on a clear, readable screen.
Compatibility: A variety of machine tools, such as milling machines, lathes, EDM, and grinding machines, may be used with the system.
Sensor Technology: The system's sensors are made to reliably deliver position feedback and detect linear displacements with accuracy.

Usage:

Installing the digital linear scales involves mounting them on the machine axes you wish to measure. Usually, screws or mounting brackets are used to secure the scales parallel to the axis of motion.

Connection: Connect the scales to the DRO display unit using the provided cables and connectors. Ensure proper connection and secure the cables to avoid interference or damage.
Calibration: Perform the calibration procedure to align the scales with the machine axes and set a reference point. Calibration ensures accurate readings throughout the measuring range.
Configuration: Configure the DRO display unit based on your machine and application requirements. This may involve setting measurement units (metric or imperial), resolution, and other parameters.
Operation: Start the machine and observe the position readings on the DRO display unit as you move the machine axes. The real-time readings allow you to track and control the machine positioning accurately.

SDS2-3VA DRO System Features:

All Chinese optical linear glass scales are supported by the LCD display, which is frequently seen in lathe, drilling, boring, and milling equipment.
It is more helpful for users of milling machines and lathes from various countries since it can switch between Chinese and English on a single display.

Linear Form Error Correction
Power Interrupts Memory
Sleep switch
Mathematical calculation
RS-232-C interface (optional)

Specifications of SINO SDS2-3VA digital readout system + linear scale encoder


The SDS2-3VA is a high-performance universal display console that has the ability to mill, lathe, and grind.

Up to three linear encoders can be connected to this three-axis kind. Additional connectors are available to combine axes or change the input to suit equipment manufactured by other manufacturers. Please see the encoder compatibility guide below.

strong die cast casing with a front panel membrane that is both haptic and long-lasting.

large, easily readable LCD screen.

PCD, line of holes, 200 zero memory, radius/diameter display, and tool offsets are among the features.

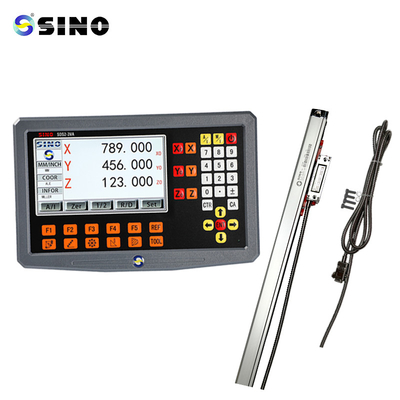

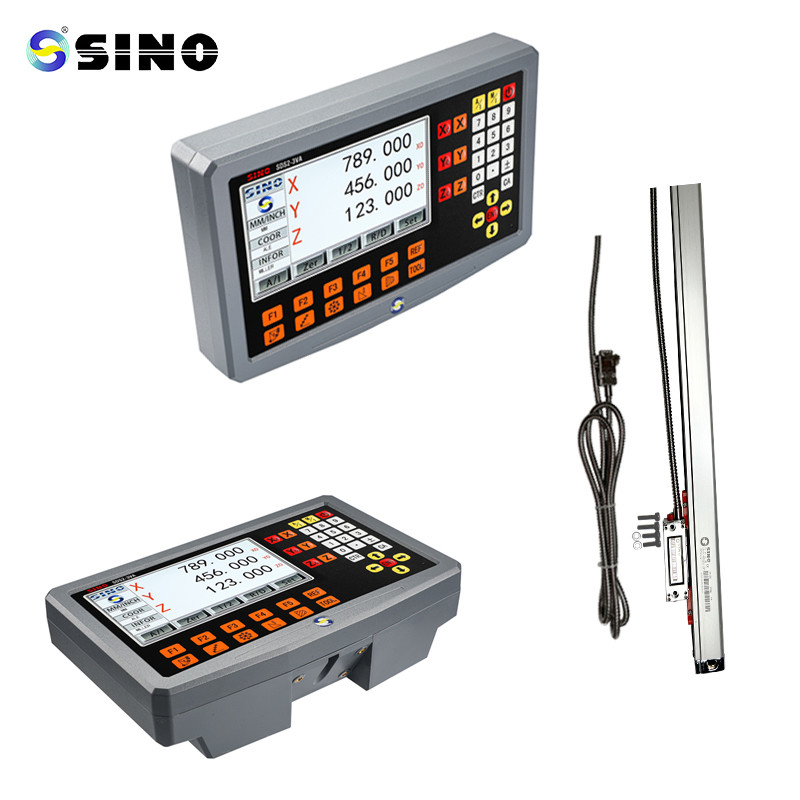

Product image /photos:

The rack in the picture is optioned, not standard product.
