SDS DRO 2MS Digital Readout System DRO 2 Axis With KA300 Magnetic Scale System Linear Error Correction

SDS DRO 2MS Digital Readout System DRO 2 Axis With KA300 Magnetic Scale System Linear Error Correction

Two-Axis DRO: Supports simultaneous measurement along two axes (e.g., X and Y), making it ideal for milling machines and other applications requiring coordinated movements.

Magnetic Scale Encoder System: Utilizes magnetic technology for accurate and repeatable measurements. Magnetic scales are mounted on the machine axes, providing real-time position feedback to the DRO display.

Wide Voltage Range: Operates optimally between 100V and 240V AC, ensuring compatibility with various power supply standards.

User-Friendly Interface: The display unit features a clear digital interface with buttons for easy navigation. Users can switch between measurement units, set presets, and access various functions with ease.

Versatility: Suitable for multiple machining applications, including milling, drilling, turning, and grinding. The system enhances accuracy, efficiency, and productivity in machining operations.

Enhanced Components:

Linear Error Correction: Ensures accurate readings by compensating for linear measurement inaccuracies.

Nonlinear Error Correction: Addresses nonlinear measurement errors, enhancing overall precision.

Memory Functionality: Option to turn off the memory feature, allowing for more straightforward operations when desired.

Constant Tempo: The system maintains a steady operation pace, ensuring consistent performance without fluctuations.

The Digital DRO 2 axis Readout details

1. AC Voltage Range: Operates at 50 to 60 Hz, with a voltage range of 85 to 250 volts.
2. Power Consumption: Consumes 15 watts of power at 25 volts.
3. Coordinate Display: Supports measurement denoted by one, two, or three coordinates.
4. Data Display: Capable of showing information with eight characters and seven displays (for two or three axes).
5. Net Weight: Weighs 1.3 kg (2.9 lbs).
6. Input Signal: Features a simple TTL interface with an open collector output signal, compliant with EIA-422, suitable for programmable controllers.

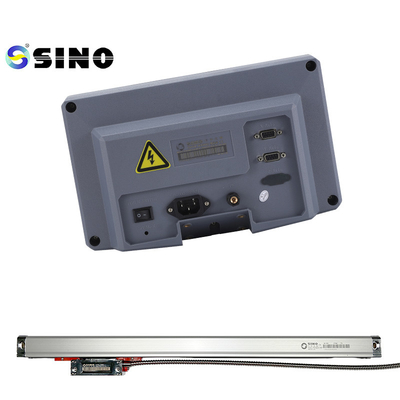

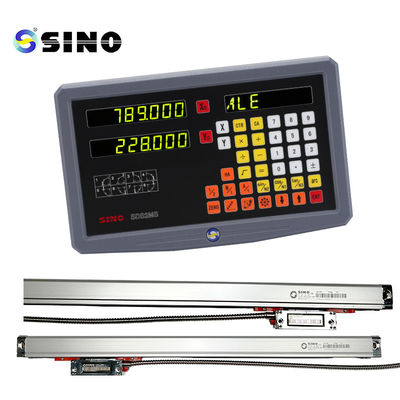

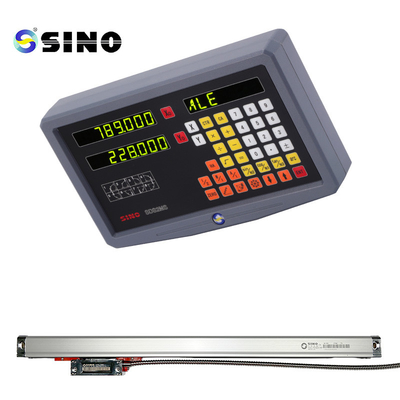

Product image /photos:

The rack in the picture is optioned, not standard product.
