Product Details:
|
Item Name: | Digital Readout Unit For 3-Axis Large Metal LCD Milling Machine | Usage: | Three-axis Large-scale Mill Placement |
---|---|---|---|
System: | Large-scale Digital Readout With Three Axes, SDS 200 | Scale Model: | KA-600, KA-300, KA-300 Linear Ruler |
Signal: | Linear Ruler : TTL / EIA-422-A | Resolution: | Linear Ruler : 0.005mm/0.001mm |
Voltage: | Digital Readout Input AC 100V-240V | Meas. Travel: | Linear Ruler : 1000-3000mm, 70-1020mm |
Highlight: | Three-Axis Milling Machine DRO,0.005mm Linear Ruler Milling Machine DRO |

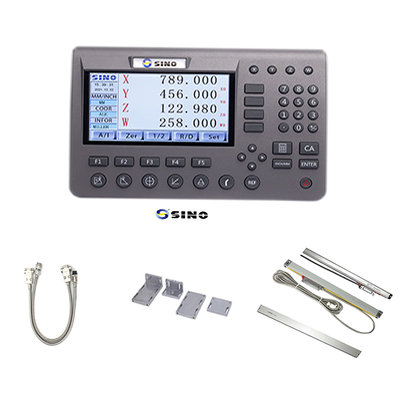

SINO 3 Axis Large Size Metal LCD Milling Machine Digital Readout Unit SDS 200 With Three Linear Rulers
This digital reading device is unique for big, three-axis mills.
Three basic linear rulers (KA-600 or KA-300) and one metal LCD display digital readout (SDS200).
Model of KA-600 linear ruler: 1000–3000 mm
Model of the KA-300 linear ruler: 70–1020 mm

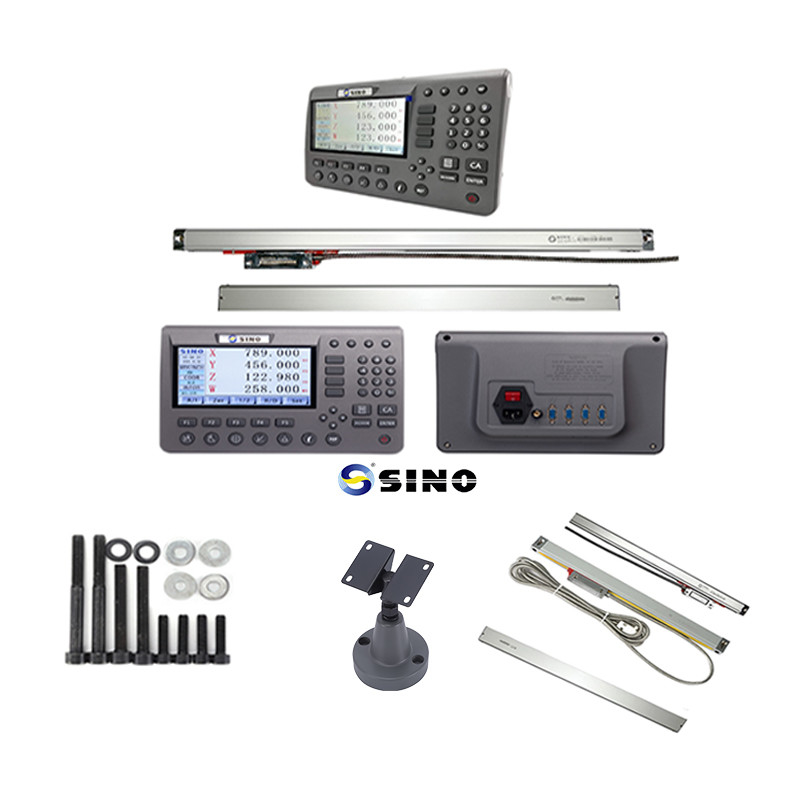

Package list:
Item name | 3 axis large size metal LCD milling machine digital readout unit |
Digital Readout (DRO) | SDS 200 |
Linear scale for axis X | 1000-3000mm |
Linear scale for axis Y | 70-1020mm |
Linear scale for axis Z | 70-1020mm |
Rack for DRO | L400 |
Protection cover for X scale | Type M |
Protection cover for Y scale | Type D |
Protection cover for Z scale | Type D |
Bracket for scales | T-bracket (2 or 3 sets, depend on the size) |
Others | Cable / Screws / Manual |
Functions for milling machine:
mid-split
Sleek "R"
Uncomplicated "R"
Line of Sight Hole Positioning
PCD Circle Divided Equidistantly
Processing Bevels
Inner Chamber, Rectangular Advancement in Machining
