Practical Two-Axes Metal LCD Milling Machine with DRO 0.005mm Resolution

Brand Name: SINO
Model Number: SDS 200, KA-600, KA-300
MOQ: 1 set
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
Guangzhou, CHINA
Certification:
CE,RoHS
Item Name:
2 Axis Large Size Metal LCD Milling Machine Readout Kit
Meas. Travel:
Linear Rulers:1000-3000mm, 70-1020mm
Signal:
KA-300: TTL / EIA-422-A
Usage:
Milling Head Positioning
Functions:
Zero Setting, Inch/Metric Conversion, ABS/INC Mode
Type:
Digital Read Out
Weight:
2kg
Protection Level:
IP54
Voltage:
RS232-C Output DRO: AC 100V-240V
System:
Positioning Of The Axis Z Milling Head
Operating Temperature:
0-70℃
Resolution:
0.001mm
Dimensions:
300mm X 200mm X 100mm
Supply Ability:
3000 sets per month
Highlight:

0.005mm Resolution Milling Machine DRO

,

DRO Metal LCD Milling Machine

Product Description

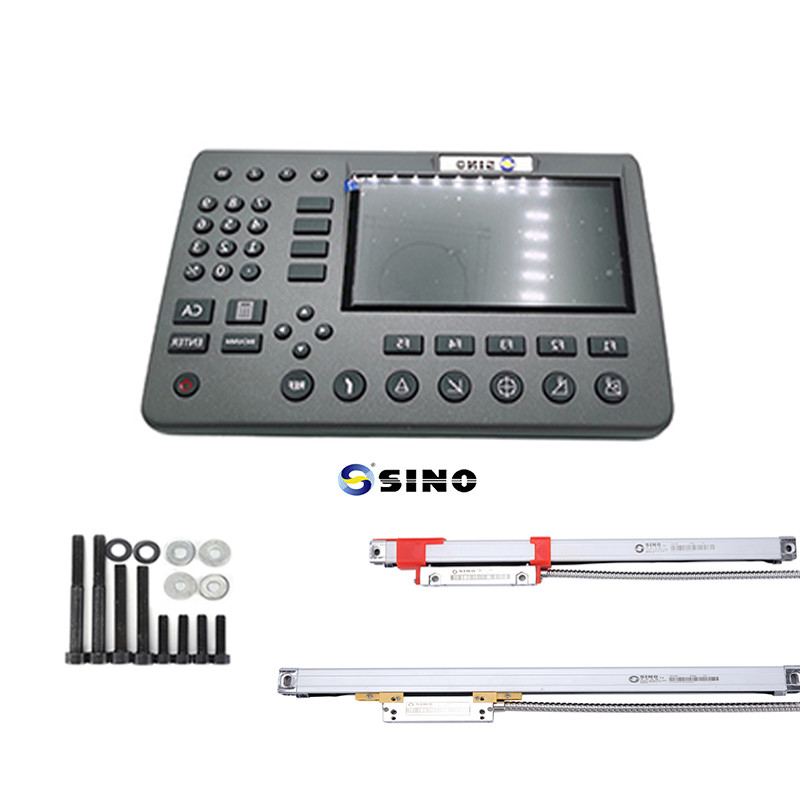

SINO 2 Axis Large Size Metal LCD Milling Machine Readout Kit SDS 200 With Two Linear Rulers





The kit is specifically designed to meet the needs of big, two-axis milling machines.
Two ordinary linear rulers (KA-600 or KA-300) and one LCD display readout (SDS200).

Linear ruler KA-600: 1000–3000 mm

Linear ruler KA-300: 70–1020 mm

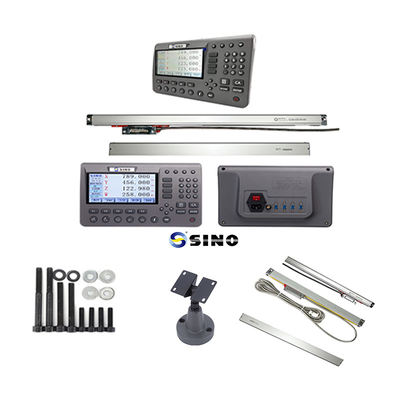

Package list:





Item name Large metal LCD milling machine with two axes Kit for reading
Digital Readout (DRO) SDS 200
Linear scale for axis X 1000-3000mm
Linear scale for axis Y 70-1020mm
Rack for DRO L400
Protection cover for X scale Type M
Protection cover for Y scale Type D
Bracket for scales T-bracket (1 or 2 sets, depend on the size)
Others Cable / Screws / Manual





Functions for milling machine:

  1. Midsplit
  2. Smooth “R”
  3. Simple “R”
  4. Oblique Line Hole Positioning
  5. PCD Circle Equally Dividing
  6. Bevel Processing
  7. Rectangular Inner Chamber Progressive Machining



Detail Information:



Practical Two-Axes Metal LCD Milling Machine with DRO 0.005mm Resolution 0



Practical Two-Axes Metal LCD Milling Machine with DRO 0.005mm Resolution 1

Practical Two-Axes Metal LCD Milling Machine with DRO 0.005mm Resolution 2



Practical Two-Axes Metal LCD Milling Machine with DRO 0.005mm Resolution 3





Pin Description:

Practical Two-Axes Metal LCD Milling Machine with DRO 0.005mm Resolution 4



All linear scales were tested before delivery. Here is a sample of a scale's test report.

Practical Two-Axes Metal LCD Milling Machine with DRO 0.005mm Resolution 5
