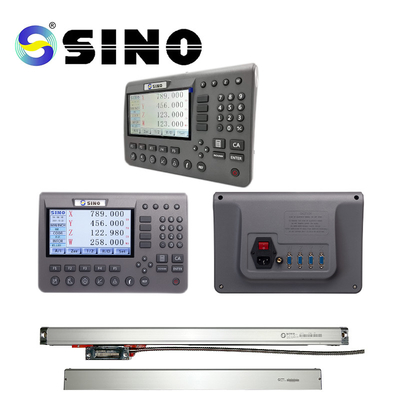

SINO SDS200 LCD Digital Readout Kits KA-300 Linear Scale Optical Encoder

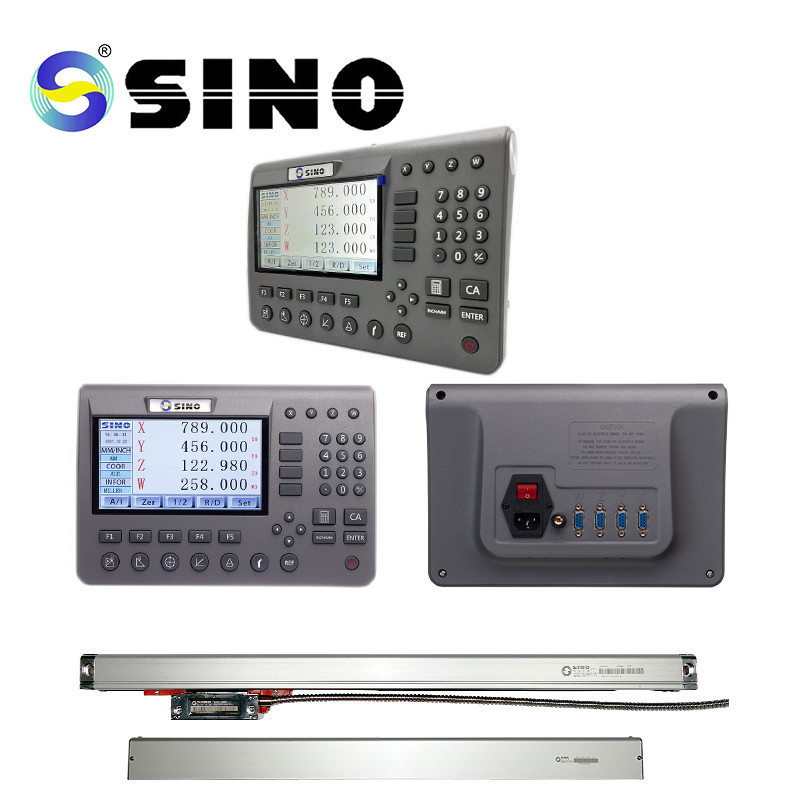

SINO SDS200 4 Axis Big Screen LCD Digital Readout Display DRO Kit KA-300 Optical Encoder Linear Scale​

The LCD display is commonly used in lathes, drilling, boring, and milling machines, and it is compatible with all Chinese optical linear glass scales.
It is more useful for lathes and milling machines for users from other nations because it can interchange Chinese and English using a system on a single display.

Parameter

The SDS200 model
Voltage input: AC 80V–240V

Signal input: TTL

Material: a cover made of metal

Plug: such as AU, EU, US, and UK.

Basic Functions

Auxiliary Zero Position Function with 200 Points

Function of the Mid-Split

Conversion Display in "mm/inch"

Diameter/Radius Switch Display

Segmented Compensation for Errors

Linear Error Correction

Memory With Power Outages

Switch for Sleep

Calculation in mathematics

Interface RS-232-C (optional)

Machining Functions

PCD circumferential division (suitable for spark testers and milling machines)

Involute chamber machining (milling machine applicable)

Angular surface processing and bevel machining (suitable for milling machines)

N3 function (milling machine applicable)

Using a milling machine, diagonal boring

R-arc function (milling machine applicable)

Function for measuring taper (applicable to lathe)

200-tool library (lathe applicable)

function that prevents dithering (suitable for grinding machines)

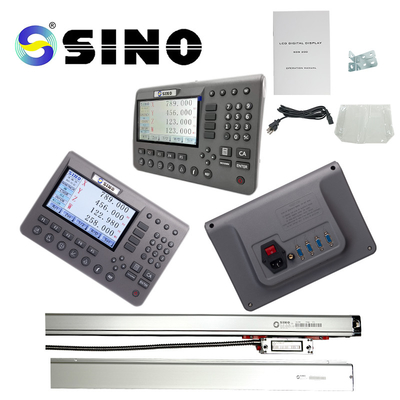

Package list:

Detail Information of SDS200 digital readout systems

Pin Description:
