SDS6-2V Digital Readout SINO LED Screen 2 Axis DRO System 60Hz For Milling lathe Machine

Brand Name:	SINO
Model Number:	SDS6-2V, KA-300
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

SINO SDS6-2V Digital Readout

Usage:

Milling Installation Grinding Machine

System:

2 Axis LED DRO SDS6-2V Digital Display

Scale Model:

KA-300 Linear Grating Scale

Signal:

TTL / RS422

Resolution:

5µm/1µm

Voltage:

AC 100V-240V / 50-60Hz

Meas. Travel:

Linear Grating Scale:70-1020mm

Supply Ability:

3000 sets per month

Highlight:

LED Screen 2 Axis DRO System

SDS6-2V 2 Axis DRO System

Product Description

SDS6-2V Digital Readout SINO LED Screen 2 Axis DRO System 60Hz For Milling lathe Machine

The DRO package is specifically tailored for two-axis milling setups.

The DRO SDS6-2V features a 2-axis LED display and comes with two standard linear grating scales (KA-300).

Package list:

Item name	SINO LED Screen 2 Axis DRO System
Digital Readout (DRO)	SDS6-2V
Linear scale for axis X	670-1020mm
Linear scale for axis Y	370-570mm
Rack for DRO	L400
Protection cover for X scale	Type C
Protection cover for Y scale	Type D
Bracket for scales	T-bracket (1 set)
Others	Cable / Screws / Manual

Functions for milling machine:

Midsplit
Smooth "R"
Simple "R"
Oblique Line Hole Positioning
Equidistant PCD Circle Division
Bevel Processing
Progressive Machining of Rectangular Inner Chambers

Detail Information:

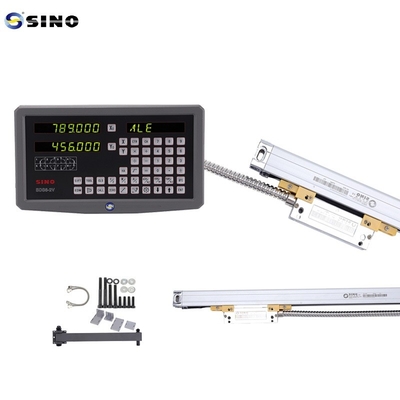

SDS6-2V Digital Readout SINO LED Screen 2 Axis DRO System 60Hz For Milling lathe Machine 0

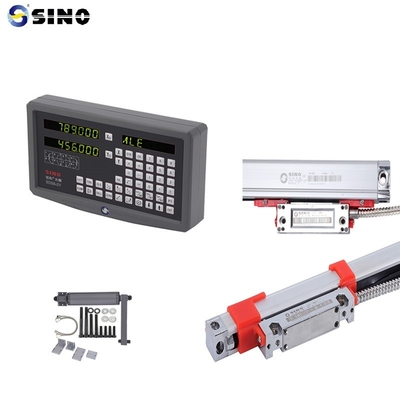

SDS6-2V Digital Readout SINO LED Screen 2 Axis DRO System 60Hz For Milling lathe Machine 1

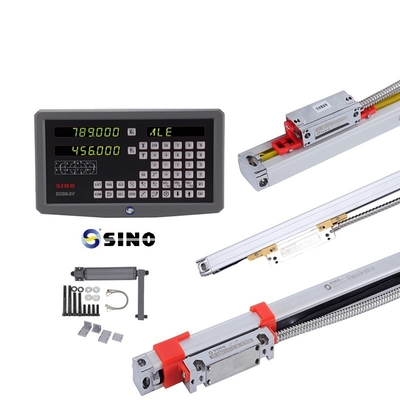

SDS6-2V Digital Readout SINO LED Screen 2 Axis DRO System 60Hz For Milling lathe Machine 2

Pin Description:

SDS6-2V Digital Readout SINO LED Screen 2 Axis DRO System 60Hz For Milling lathe Machine 3

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SDS6-2V Digital Readout SINO LED Screen 2 Axis DRO System 60Hz For Milling lathe Machine 4
