SINO DRO SDS6-3V 3 Axis Digital Readout System With 0.005mm Resolution TTL Input Linear Encoder Ruler

Brand Name:	SINO
Model Number:	SDS6-3VA, KA300, Ka500
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

SINO DRO SDS6-3V 3 Axis Digital Readout System

Number Of Axis:

3 Axis Digital Readout Linear Scale

Signal:

Digital Readout: TTL / RS422

Material:

Iron/Metal

Voltage:

Digital Readout: AC100-240V / 50-60Hz

Suitable For:

Milling Machine, Boring Machine, Lathe

Resolution:

1um,5um,0.5um, 0.1um

Supply Ability:

12000 pcs per month

Highlight:

0.005mm Resolution Digital Readout System

3 Axis Digital Readout System

SINO DRO Digital Readout System

Product Description

SINO DRO SDS6-3V 3 Axis Digital Readout System With 0.005mm Resolution TTL Input Linear Encoder Ruler

Digital readout details:

The SINO SDS6-3VA Digital Readout System is a digital display unit designed for use in machine tools and other industrial equipment. Produced by SINO, a company known for its expertise in precision measuring instruments and digital readout systems, this unit provides accurate and reliable measurement solutions for various applications.

Key features of the Sino SDS6-3VA DRO Set include

Three-Axis Measurement: The system allows for the measurement and display of three axes—typically X, Y, and Z—enabling accurate monitoring and control of machine positions during machining operations.

High-Resolution Measurement: With a resolution of 0.005mm, the DRO system ensures precise machining results and effective dimensional control.

TTL Input Compatibility: The system supports TTL input signals, making it compatible with various optical encoder rulers commonly used in machine tools, facilitating reliable data acquisition.

Optical Encoder Rulers: The DRO set includes linear scales equipped with optical encoder rulers, which are installed on the machine axes to provide accurate position feedback in conjunction with the DRO unit.

Lathe and Milling Machine Compatibility: The SDS6-3VA DRO set is versatile and suitable for use with both lathe and milling machines, accommodating a wide range of machining processes.

Packaging List :

1 PC	3 Axis LED digital readout SDS6-3V
1 PC	Protection cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

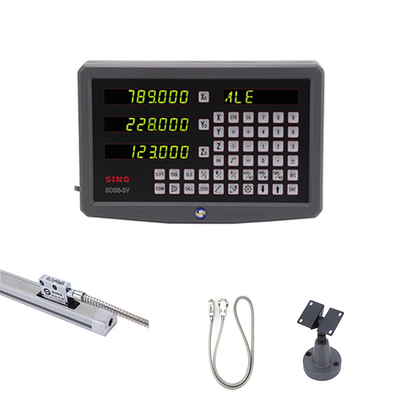

SINO DRO SDS6-3V 3 Axis Digital Readout System With 0.005mm Resolution TTL Input Linear Encoder Ruler 0

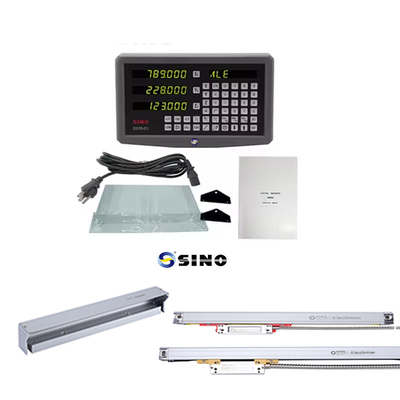

SINO DRO SDS6-3V 3 Axis Digital Readout System With 0.005mm Resolution TTL Input Linear Encoder Ruler 1

The rack in the picture is optioned, not standard product.

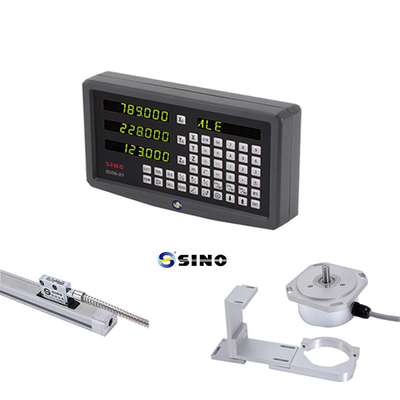

SINO DRO SDS6-3V 3 Axis Digital Readout System With 0.005mm Resolution TTL Input Linear Encoder Ruler 2
