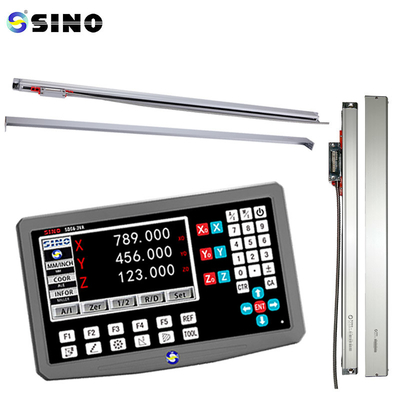

Lathe Machine Three-Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output

Large Image : Lathe Machine Three-Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output

Product Details:

Place of Origin:	Guangzhou, CHINA
Brand Name:	SINO
Certification:	CE,RoHS
Model Number:	SDS2-3VA, KA-300*2

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5-8 days
Payment Terms:	T/T, L/C
Supply Ability:	3000 sets per month

Contact Now

Lathe Machine Three-Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output

Description

Item Name:	3 Axis DRO Kit SINO SDS6-3V	Usage:	For Lathe Machine Milling Machine
System:	DRO System SDS6-3va	Scale Model:	KA-300, KA-500 KA-600
Signal:	TTL / EIA-422-A	Resolution:	0.005mm/0.001mm/0.0005mm
Voltage:	AC 100V-240V / KA-300: 5V	Meas. Travel:	70-3000mm
Storage Temperature:	0-60℃	Communication Interface:	RS232
Number Of Display:	2 / 3 / 4 Axis	Screen:	LCD
Highlight:	Three-Axis DRO Kit SINO SDS6-3V , Lathe Machine SINO SDS6-3V

3 Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output For Lathe Machine

The DRO system is designed with 2-axis mills in mind.

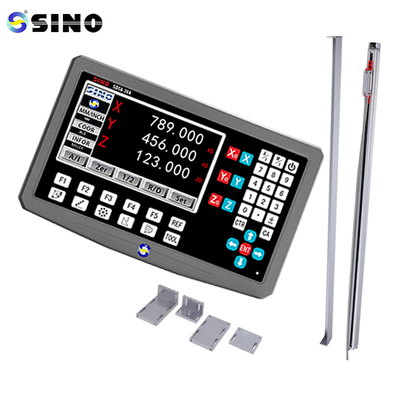

It includes two conventional grating rulers (KA-300) and a TFT display DRO system (SDS6-3VA).

Package list:

Item name	3axes TFT milling machine DRO system
Digital Readout (DRO)	SDS6-3VA
Linear scale for axis X	670-1020mm
Linear scale for axis Y	370-570mm
Rack for DRO	L400
Protection cover for X scale	Type C
Protection cover for Y scale	Type D
Bracket for scales	T-bracket (1 set)
Others	Cable / Screws / Manual

Functions for milling machine:

Midsplit: Parts that are symmetrically divided or balanced.
Simple "R": A basic calculation for a radius or rounded edge.
The precise positioning of holes along angled lines is known as "oblique line hole positioning."
PCD Circle Equally Dividing: Pitch Circle Diameter is used to determine how evenly points are spaced around a circle.
Machining or finishing angled edges or surfaces is known as bevel processing.

Detail Information:

Lathe Machine Three-Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output 0

Lathe Machine Three-Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output 1

Lathe Machine Three-Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output 2

Pin Description:

Lathe Machine Three-Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output 3

All linear scales were tested before delivery. Here is a sample of a scale's test report.

Lathe Machine Three-Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output 4
