SINO SDS5-4VA Digital Readout DRO With Magnetic Linear Encoder Scale For Lathe Grinding machine

SINO SDS5-4VA Digital Readout DRO With Magnetic Linear Encoder Scale For Lathe Grinding machine​

The SDS5-4VA DRO features up to 600 non-linear error compensation points per axis, enabled by a dual-frequency laser device and advanced software created by Loksshun. The system performs comparative measurements, with the results being stored in a data file for subsequent processing and storage on the hard drive.

The SDS5-4VA DRO Measuring Machine's features include:

1. The Metal SINO SDS5-4VA Digital Display Meter is equipped with a 4-axis LCD screen, enabling the simultaneous monitoring and display of measurements across up to four axes. This feature significantly improves multitasking efficiency and enhances operational convenience.
2. It offers comprehensive readouts, displaying measurements such as distance, position, speed, and other key parameters. This clear and concise visual presentation makes it easier to monitor and control the machining process effectively.
3. The SDS5-4VA is compatible with a wide range of industrial machines, including milling machines and lathes. Its design allows for easy integration into existing machine control systems, ensuring smooth communication and synchronization.
4. As a specialized model within the Metal Sino Digital Display Meter series, the SDS5-4VA delivers advanced features and improved performance over previous models. For detailed specifications and operational instructions, please refer to the manufacturer's documentation or user manual.

requirements for grating rulers and SINO SDS5-4VA requirements

Specification
SINO SDS5-4VA Digital Readout System
Form: DRO Luxury Form
Input: 4 axes
Output Signal: TTL/RS-422
Enclosure: Metal
Applications: Suitable for lathes, milling machines, drilling machines, grinding machines, and EDM machines, both manual and CNC
Position Determination Instrument: Supports single, three, or four-axis grating scales
Certifications: CE, ROHS, ISO 9001
Sealing Protection Class: IP67
Features:
Reliable, durable, and easy to install

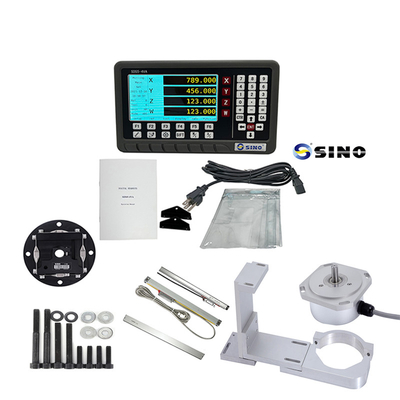

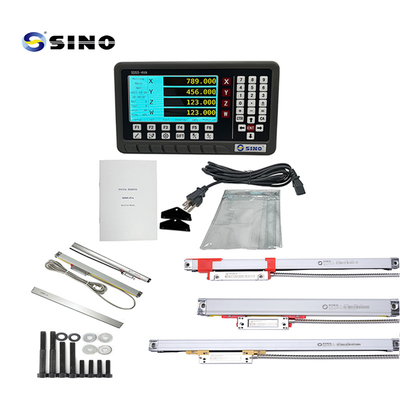

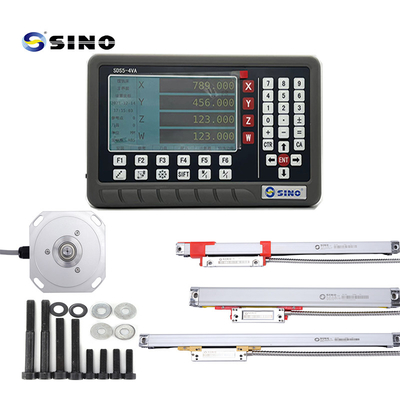

Product image /photos:

The rack in the picture is optioned, not standard product.
