SINO DRO Grey SDS2-3VA 3 Axis Digital Readout System Kit TTL Input Signal For Milling Machine Lathe

SINO DRO Grey SDS2-3VA 3 Axis Digital Readout System Kit TTL Input Signal For Milling Machine Lathe

Product Description:

The 1µm SINO DRO (Digital Readout) is a high-precision measurement tool designed for milling machines. With a resolution of 1 micron, it ensures accurate measurements and precise control over milling operations. The DRO system boasts an intuitive, user-friendly interface and customizable settings to enhance ease of use and adaptability.

Key Features:

High Resolution: The 1µm (1 micron) resolution of the SINO DRO ensures highly accurate and detailed measurements, allowing for precise positioning and control during milling operations.
Intuitive User-Friendly Interface: The SINO DRO system features an intuitive, easy-to-navigate interface, designed for effortless operation. Its clear layout and straightforward menu options ensure a seamless and efficient user experience.
Configurable Settings: The SINO DRO offers customizable settings to suit specific milling needs. Users can adjust parameters such as scale type, axis configuration, units of measurement, and display options for greater flexibility and precision in their operations.
Multiple Axis Support: The SINO DRO system supports multiple axes, typically including X, Y, and Z, allowing for simultaneous measurement and display of their positions. This feature enhances the efficiency of milling operations by providing real-time, accurate tracking of all relevant axes.
Clear Digital Display: The SINO DRO is equipped with a clear digital display that shows real-time measurements of the positions. Positioned conveniently near the milling machine's control panel, it ensures easy visibility and quick monitoring during operations.
Incremental and Absolute Measurement Modes: The SINO DRO system offers both incremental and absolute measurement modes, giving users the flexibility to select the most appropriate mode for their specific milling applications.
Usage:

The 1µm SINO DRO is specifically designed for milling machines to improve precision, measurement, and control during milling operations. It delivers real-time feedback on the positions of the machine axes, enabling operators to achieve highly accurate results.

Specifications of SINO SDS2-3VA digital readout system + linear scale encoder


The SDS2-3VA is a high-performance universal display console designed to support milling, lathe, and grinding applications. This versatile system is capable of connecting up to three linear encoders, and it offers flexible input configurations to integrate with equipment from other manufacturers. For compatibility details, refer to the encoder guide.

Key features of the SDS2-3VA include:

Durable Construction: The console is housed in a strong die-cast casing with a durable, haptic front panel membrane, ensuring long-lasting reliability.
Large LCD Display: A large, easy-to-read LCD screen provides clear, real-time data and measurements.
Advanced Features: The system includes advanced functions such as PCD (Pitch Circle Diameter), line of holes, 200 zero memory positions, radius/diameter display, and tool offsets, offering enhanced versatility and control for machining operations.

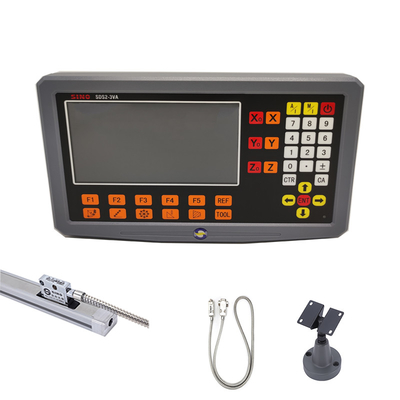

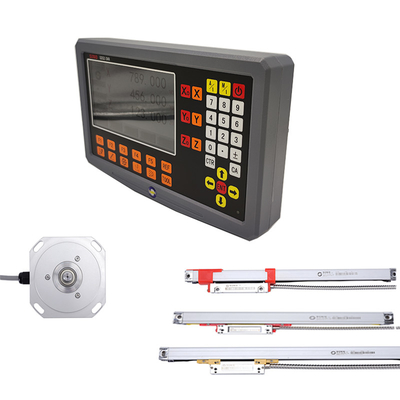

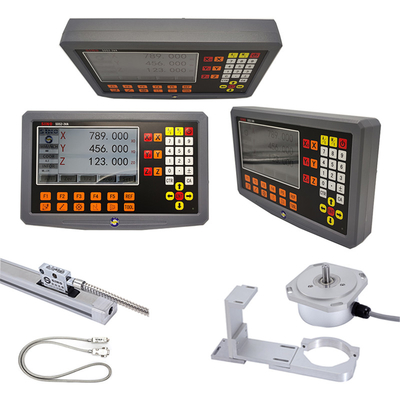

Product image /photos:

The rack in the picture is optioned, not standard product.
