SINO SDS3-1 Single Axis Digital Display System Kits Glass Linear Encoder Scale For Lathe Milling Grinding Machine

Brand Name:	SINO
Model Number:	SDS3-1, KA300, Ka500
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

SINO SDS3-1 Single Axis Digital Display System

Number Of Axis:

One Axis DRO System

Color:

Grey/black

Signal:

TTL / RS422

Voltage:

AC100-240V / 50-60Hz

Suitable For:

Milling Lathe, Boring Machine, EDM Machine

Resolution:

1um,5um,0.5um

Weight:

2KG

Connect:

KA300, KA600, KA500

Function:

For Milling Grinding Machine

Material:

Metal

Voltage Range:

50HZ~60HZ

Supply Ability:

1000 pcs per month

Highlight:

Single Axis Glass Linear Encoder Scale

Single Axis SINO Digital Readout System

Product Description

SINO SDS3-1 Single Axis Digital Display system kits glass linear encoder scale For Lathe Milling Grinding Machine

The SDS3-1 is a compact DRO designed with robust features for precise single-axis measurement and position control.

Description:

The SDS3-1 DRO is designed with robust functionality for precise single-axis measurement. As the smallest model in its series, it is specifically tailored for clients who require accurate single-axis measurements while offering powerful capabilities. This model supports connection with a single linear encoder and provides interfaces to combine or sum inputs from two encoders into a single console input. It also allows for input conversion to support equipment from other manufacturers. For detailed information on encoder compatibility, please refer to the encoder compatibility guide provided below.

Specifications of SINO SDS3-1 digital readout system + Grating Ruler

Item: SINO SDS3-1 Digital Readout System
Type: Luxury Type DRO
Input: One axis
Input Signal: TTL/RS-422
Housing: MetalApplication: Suitable for use with glass scales on manual or CNC lathes, milling machines, drilling machines, grinding equipment, and EDM machines.
Usage: Position measuring instrument for single-axis grating scales.
Certification: CE, ROHS, ISO9001
Sealing Protection Class: IP67
Features: Sturdy and durable, easy to install, user-friendly interface.
Machinery Test Report: Provided.

Feature:

The SDS3-1 DRO is compact and easy to install, making it compatible with a wide range of machine types. It features closed micro-motion metal membrane switches for the keys, arranged in a square layout on the panel. The ergonomic design ensures an optimal operating height, providing a comfortable and tactile user experience for efficient operation.

Packaging List :

1 PC	3 Axis LED digital readout SDS3-1
1 PC	Protection cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

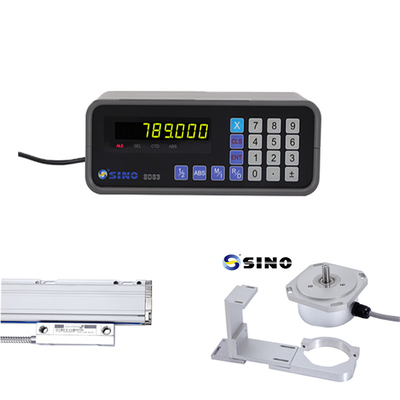

SINO SDS3-1 Single Axis Digital Display System Kits Glass Linear Encoder Scale For Lathe Milling Grinding Machine 0

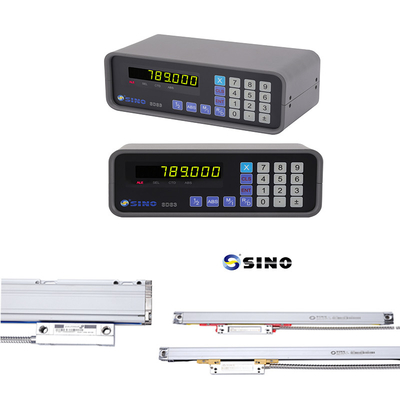

SINO SDS3-1 Single Axis Digital Display System Kits Glass Linear Encoder Scale For Lathe Milling Grinding Machine 1

The rack in the picture is optioned, not standard product.

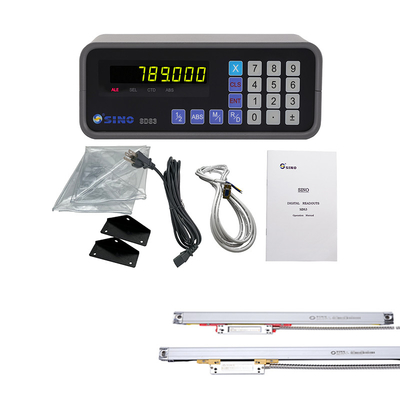

SINO SDS3-1 Single Axis Digital Display System Kits Glass Linear Encoder Scale For Lathe Milling Grinding Machine 2
