Sino SDS2MS DRO Digital Readout Systems TLL RS422 Input For Lathe Milling Machine

Sino SDS2MS Lathe Milling Machine DRO Digital Readout TLL Input

DRO SDS2MS is multifunctional 2-coordinate numerical display gauge.
By different machine tool, this gauge can switch to corresponding function just by changing the parameters.


Upgraded Functions:

1. Radius/diameter conversion.

2. MM/Inch conversion.

3. Absolute/relative conversion.

4. Mid-splitting function.

5. Easy "R" function.

6. Smooth "R" function.

7. PCD hole positioning on circumference.

8. 200 groups zero position memory.

Specifications of DRO SDS2MS Digital Readout System

1. Voltage range: 50 Hz to 60 Hz, AC 85 v to 250 v

2. 15w uses 25 va of electricity.
The third step is to coordinate the number: a, two, and three.

4. Use eight meters of words and symbols to demonstrate how a signed seven display (two or three axes) outputs data information.

5. Net Weight: 2.9 lbs/1.3 kilogram

6. The EIA-422 open collector output signal, TTL input signal, and easy-to-use interface with programmable controller.

7. Permit the input signal frequency to be higher than 100 KHz.

8. Use 10 microns, 5 microns, 2 microns, 1 mu m, and 0.5 microns to link a resolution.

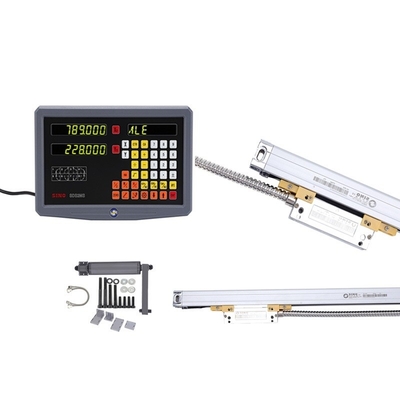

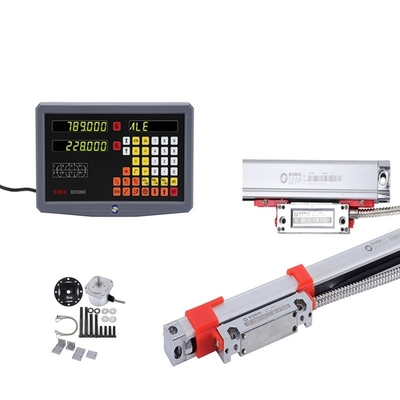

Product image /photos:

The rack in the picture is optioned, not standard product.
