Angle Linear Encoder Length 7-102cm For Milling Machine SINO SDS2MS Digital Readout 2 Axes Optical

Brand Name:	SINO
Model Number:	SDS2MS, KA-300
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

SDS2MS Digital Readout 2 Axes

Usage:

Single Axis For EDM

System:

2 Axes LED DRO SDS2MS

Scale Model:

KA-300 Grating Scale

Signal:

TTL / EIA-422-A

Resolution:

0.005mm Or 0.001mm

Voltage:

AC 100V-240V

Meas. Travel:

70-1020mm

Color:

Black

Number Of Axes:

Display Resolution:

0.05μm,0.1μm, 0.5μm, 1μm, 5μm

Sealing Protection:

IP53

Weight:

1.5kg

Supply Ability:

3000 sets per month

Highlight:

2 Axes Angle Linear Encoder

Milling Machine Angle Linear Encoder

102cm Angle Linear Encoder

Product Description

SINO SDS2MS Digital Readout 2 Axes Optical With Angle Linear Encoder Length 7-102cm For Milling Machine

The DRO set is designed specifically for 2-axis milling applications.

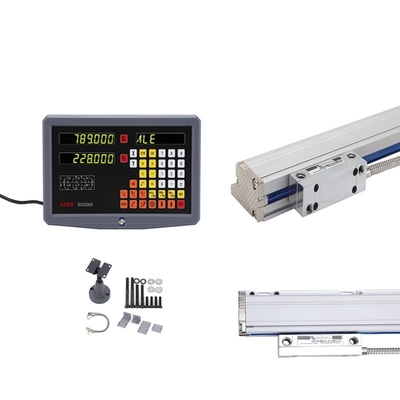

It includes one SDS2MS LED display DRO and two standard grating scales KA-300.

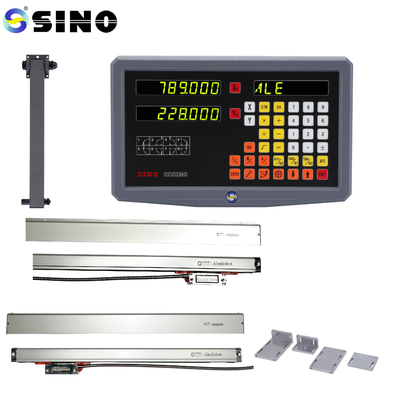

Package list:

Item name	2 axes economy LED milling machine DRO set
Digital Readout (DRO)	SDS2MS
Linear scale for axis X	670-1020mm
Linear scale for axis Y	370-570mm
Rack for DRO	L400
Protection cover for X scale	Type C
Protection cover for Y scale	Type D
Bracket for scales	T-bracket (1 set)
Others	Cable / Screws / Manual

Functions for milling machine:

Midsplit: Dividing a workpiece or a feature into two equal halves along its axis.
Smooth “R”: Achieving a smoothly curved radius or edge, typically for aesthetic or functional purposes.
Midsplitting is the process of splitting a feature or workpiece in half along its axis.
Simple "R": Making a simple, uncomplicated curved edge or radius.
Positioning holes at angles other than 90 degrees with respect to the workpiece surface is known as oblique line hole positioning.
PCD Circle Equally Dividing: Using the Pitch Circle Diameter (PCD) as a guide, divide a circular pattern or feature into equal parts.
Bevel processing is the process of machining or cutting edges to produce chamfers or bevels, which are frequently employed to improve a part's look or functioning.
Inner Chamber, Rectangular Progressive machining is the process of gradually, usually in stages, milling internal rectangular chambers or features within a component. or steps to achieve desired dimensions or finishes.

Detail Information:

Angle Linear Encoder Length 7-102cm For Milling Machine SINO SDS2MS Digital Readout 2 Axes Optical 0

Angle Linear Encoder Length 7-102cm For Milling Machine SINO SDS2MS Digital Readout 2 Axes Optical 2

Angle Linear Encoder Length 7-102cm For Milling Machine SINO SDS2MS Digital Readout 2 Axes Optical 3

Pin Description:

Angle Linear Encoder Length 7-102cm For Milling Machine SINO SDS2MS Digital Readout 2 Axes Optical 4

All linear scales were tested before delivery. Here is a sample of a scale's test report.

Angle Linear Encoder Length 7-102cm For Milling Machine SINO SDS2MS Digital Readout 2 Axes Optical 5
