AC 100-240V SINO Digital Readout System SDS2MS Multifunctional SINO Linear Scale

Brand Name:	SINO
Model Number:	SDS2MS
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE, RoHS

Name:

Digital Readout SDS2MS

Number Of Axis:

Two Axes

Case:

Plastic / Light

Display:

7 Digits LED

Signal:

Input: TTL / RS422 / EIA-422-A

Voltage:

AC 100~240V

Usage:

For Milling Machine EDM

Ambient Temperature:

0~60℃

Shipping Time:

10-15 WorKing Days After Full Payment

Dro Material:

Metal Case

Enclosure:

IP65 Protection

Dro Mounting:

Electric Box By A Lathe Rack

Supply Ability:

1000 pcs per month

Highlight:

SINO Linear Scale Digital Readout System

Multifunctional SINO Digital Readout System

Product Description

SINO Economy 2 Axis LED Digital Readout System DRO SDS2MS

One digital readout from the SDS2 series is the LED DRO SDS2MS.

That digital readout is an economical version of the SDS6 series.

Additionally, it uses the most recent 16-bit SCM technology and can receive high-frequency A/B signals up to 5MHz.

Most two-axis display requirements, such as those for high precision coordinate boring machines, floor boring machines, grinding machines, lathes, milling machines, and so on, may be satisfied by that.

The plastic case aims to reduce weight in order to save more money on shipping.

Upgraded Functions:

The function of the calculator:

To increase calculation accuracy, the SDS2 series may alter the decimal digits to three, four, or five.
Non-linear error compensation: There can be no more than 40 sections in the system. Compensation for non-linear errors to improve the positioning precision.

The numbers of decimal digits can be chosen in inch mode:

4 / 5 decimal digits can be chosen in inch mode. 4 digits can satisfy long scale requirement, and 5 digits can satisfy high precisions display.

Specifications :

Supply Voltage range: AC 80V~260V; 50~60Hz, US Plug available

Power consumption: 15VA

Operating temperature: 0~45 degrees centigrade

Storage temperature: -30~70 degrees centigrade

Readout allowable input signal: TTL/RS422 square wave

Allowable input signal frequency: Less than 5MHz

Max resolution of digital display length: 0.5µm

Min resolution of digital display angle : 0.0001/pulse

Packaging List :

1 PC	2 Axis digital readout SDS2MS
1 PC	Transparent cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

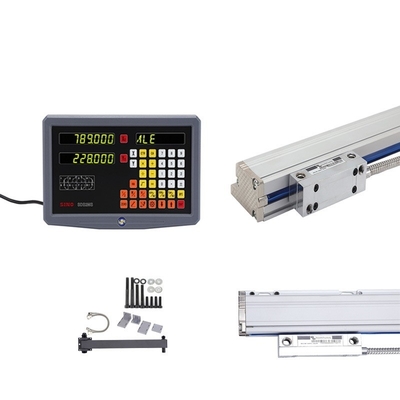

AC 100-240V SINO Digital Readout System SDS2MS Multifunctional SINO Linear Scale 0

AC 100-240V SINO Digital Readout System SDS2MS Multifunctional SINO Linear Scale 1

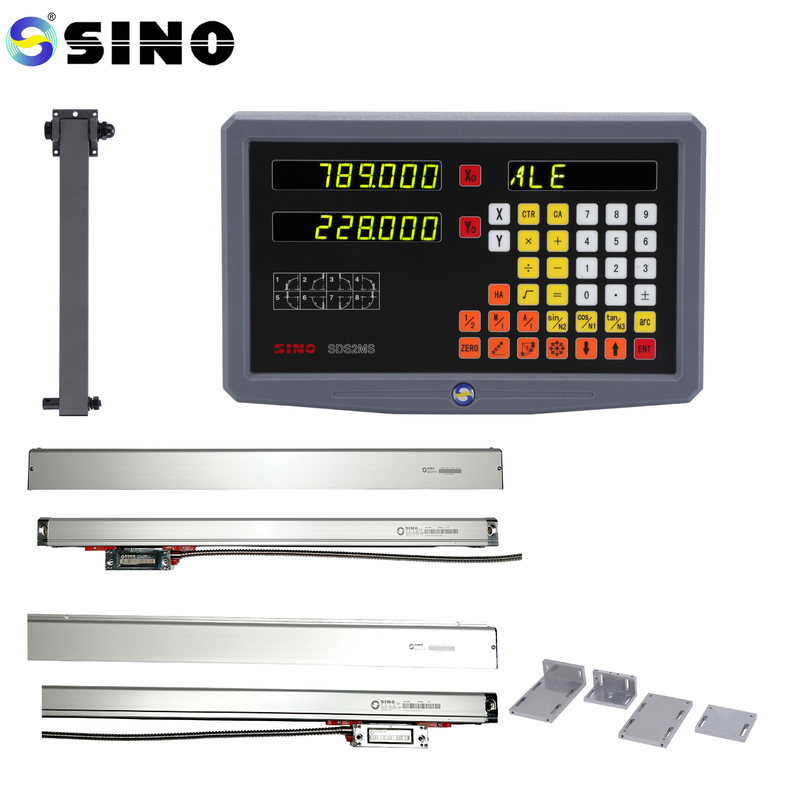

AC 100-240V SINO Digital Readout System SDS2MS Multifunctional SINO Linear Scale 2

The rack in the picture is optioned, not standard product.

AC 100-240V SINO Digital Readout System SDS2MS Multifunctional SINO Linear Scale 3
