SINO 60 Hz SDS2MS 2 Axis DRO Digital Readout For Grinding Milling Lathe

Brand Name:	SINO
Model Number:	SDS2MS
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE, RoHS

Name:

SDS2MS 2 Axis Digital Readout

Number Of Axis:

2 Axis DRO

Usage:

All Kinds Of 2 Axis Propose

Suitable For:

Grinding Milling Lathe

Name 2:

Digital Readout Kits Linear Scale

Voltage:

AC 100~240V

Signal:

Input: TTL / RS422 / EIA-422-A

Warranty:

1 Year

Color:

Grey Color

Sealing Protection:

Accuracy:

±0.005mm/±0.003mm/±0.001mm

Condition:

Display:

Seven Digits LED

Material:

Metal/iron/plastic

Language Options:

English/Chinese/Japanese

Supply Ability:

1000 pcs per month

Highlight:

2 Axis DRO

Grinding Milling Lathe DRO

60 Hz DRO

Product Description

SDS2MS 2 Axis Digital Readout DRO Digital For Grinding Milling

Numerous graphic machining features are included, such as the machine's R-arc, equal-division, bevel, and diagonal boring capabilities; the spark tester's EDM function; the lathe's tool library; and the lathe's taper measurement function.
It can significantly lessen the difficulties of graphic machining using these features.

Upgraded Functions:

1. There is zero location memory for 200 groups.
2. Punching lines that are inclined.
3. Calculation in mathematics.
4. The internal cavity of a rectangle is calculated and processed gradually.
5. Compensation for tool diameter.
6. Bevel procedure.
7. Stop in order to obtain the goal value.
8. Automatic digital follow-up at zero position.

Specifications of SDS2MS 2 Axis Digital Readout

1. Voltage range: AC 85 v ~ 250 v / 50 hz ~ 60 hz

2. 15w power consumption: 25 va

3. Coordinate the number: a coordinates, two coordinates, three coordinates

4. Show that signed seven display (two or three axis) output data information using eight meters words show symbols

5. Net Weight: 1.3kg/2.9lb

6. The input signal: TTL, EIA - 422 open collector output signal, convenient interface with a programmable controller.

7. Allow the input signal frequency: > 100 KHZ

8. To connect a resolution: 10 microns, 5 microns, 2 microns, 1 mu m, 0.5 microns

Packaging List :

1 PC	2 Axis digital readout SDS2MS
1 PC	Transparent cover
1 PC	Instruction Manual (English)
1 PC	Cable

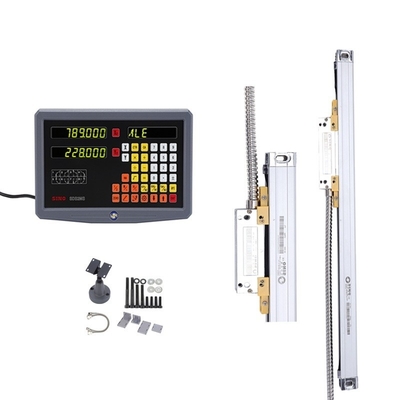

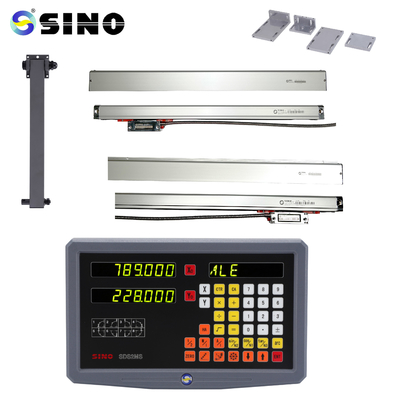

Product image /photos:

SINO 60 Hz SDS2MS 2 Axis DRO Digital Readout For Grinding Milling Lathe 0

SINO 60 Hz SDS2MS 2 Axis DRO Digital Readout For Grinding Milling Lathe 1

SINO 60 Hz SDS2MS 2 Axis DRO Digital Readout For Grinding Milling Lathe 2

The rack in the picture is optioned, not standard product.

SINO 60 Hz SDS2MS 2 Axis DRO Digital Readout For Grinding Milling Lathe 3
