KA Linear Grating Ruler SDS2MS Digital Display For Precise Positioning Of Measuring Instruments

SDS2MS Digital Display And KA Linear Grating Ruler For Precise Positioning Of Measuring Instruments

Two axis SDS 2MS digital DRO and KA grating ruler, with the following characteristics:

1. Dual axis DRO: This kit allows you to simultaneously monitor and manage the movement of the machine tool along two axes, such as the X and Y axes in a milling machine. This allows you to clearly evaluate the operating status of the equipment and determine whether the machine tool is in the correct position.

2. Magnetic ruler encoder system: Magnetic technology is used in the KA linear ruler encoder system. Accurate and trustworthy readings may be produced by the DRO display unit and the magnetic balance mounted on the machine shaft, which can promptly reflect the equipment's location. At any moment, position feedback and operating status tracking may be done using the measurements.

3. Broad voltage range: The ideal voltage range for the SDS 2MS DRO kit is between 100V and 240V AC. Compatibility with a range of power supply standards is guaranteed by its ability to regulate voltage. The gadget can only operate correctly when the voltage is adjusted correctly.

4. User friendly interface: It consists of buttons and a digital display screen, and the interface operation of the DRO display unit is simple. By using function buttons to switch between various measurement data, work efficiency can be improved.

Capabilities possessed:

1. Radius/diameter conversion.

2. MM/Inch conversion.

3. Absolute/relative conversion.

4. Mid-splitting function.

5. Easy "R" function.

6. Smooth "R" function.

7. PCD hole positioning on circumference.

8. 200 groups zero position memory.

Detailed parameters of DRO SDS2MS digital readout system:

1. Voltage range: 50 Hz to 60 Hz, AC 85 v to 250 v

2. 15w uses 25 va of electricity.

3. Assign the number to one or two locations.

4. Use eight meters of words and symbols to demonstrate how a signed seven display (two or three axes) outputs data information.

5. Net Weight: 2.9 lbs/1.3 kilogram

6. The EIA-422 open collector output signal, TTL input signal, and easy-to-use interface with programmable controller.

7. Permit the input signal frequency to be higher than 100 KHz.

8. Use 10 microns, 5 microns, 2 microns, 1 mu m, and 0.5 microns to link a resolution.

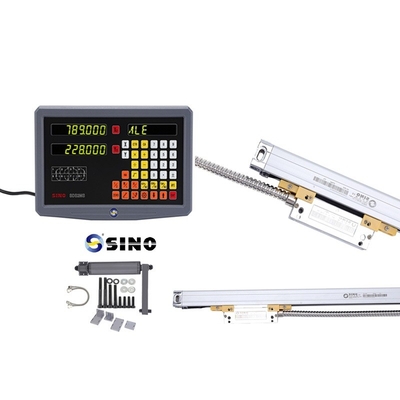

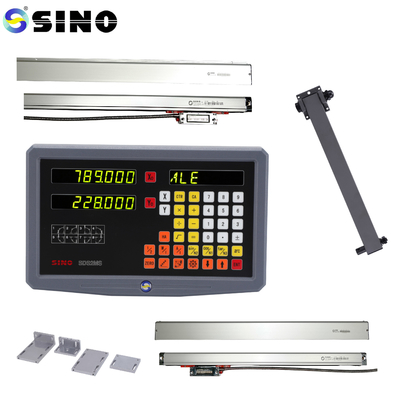

Product image /photos:

​

The rack in the picture is optioned, not standard product.
