The SDS2-3MS SINO Digital Readout System, equipped with the SDS3MS display, is specially designed for use with lathe and milling machines. It delivers precise, real-time measurement data, allowing operators to effectively monitor and control the machining process with high accuracy.

Features:

SDS3MS Display: The SDS3MS digital readout system features a clear, intuitive interface for effortless monitoring of machine measurements. It is equipped with function buttons and a keypad, providing convenient and efficient control for operators.

Multiple Axes Capability: The SDS2-3MS DRO system supports multiple axes, providing measurement feedback and control for various machine movements. This functionality ensures precise positioning and accurate machining on multiple axes simultaneously, improving overall efficiency and precision.

Compatibility with Lathes and Milling Machines: The DRO system is highly versatile, making it suitable for both lathe and milling machines. It integrates seamlessly with a wide range of equipment and can be easily incorporated into existing machine control systems, ensuring smooth and efficient operation.

High Precision: The digital readout system offers highly accurate measurement readings, ensuring precise control over machine movements. This level of precision allows machinists to achieve tight tolerances, which is essential for achieving optimal machining results and maintaining high-quality standards.

Incremental and Absolute Measurement Modes: The SDS2-3MS DRO system offers both incremental and absolute measurement modes, providing flexibility for a variety of machining tasks. Operators can effortlessly switch between modes to meet specific requirements, enhancing versatility and adaptability across different machining scenarios.

Functionality:

The SDS2-3MS SINO Digital Readout System for Lathes and Milling Machines enables precise monitoring and control of machine movements during machining operations. It delivers real-time measurement feedback, allowing operators to make prompt adjustments and corrections, ensuring accurate and high-quality machining results.

Usage:

The DRO system is widely used in machining operations that demand precise measurement and control, including turning, milling, drilling, and boring. Its applications span various industries such as metalworking, woodworking, automotive, and aerospace, where high precision is essential for achieving optimal results and maintaining quality standards.

Lathe Operations: The system is especially well-suited for lathe tasks such as facing, turning, tapering, threading, and grooving. It enables precise measurement and control of tool movements, ensuring accurate machining results and optimal outcomes in lathe operations. This level of precision helps achieve tight tolerances and high-quality finishes in a variety of lathe applications.

Milling Operations: The DRO system is highly effective for milling tasks such as contouring, slotting, drilling, and profiling. It provides precise measurement and control of cutter movements, enabling operators to achieve consistent and accurate results across a wide range of milling applications. This level of precision is crucial for maintaining high-quality standards and ensuring that machining outcomes meet the desired specifications. With the DRO system, operators can easily manage complex milling operations while achieving optimal performance and high-precision results.

SDS3MS DRO: The SDS3MS DRO is a versatile, multipurpose gauge featuring a 3-coordinate numerical display, making it ideal for a broad range of machine tools. Its flexible design allows for easy configuration, with parameters that can be adjusted to meet specific machining requirements. This adaptability ensures precise measurement and control across various operations, enhancing both efficiency and accuracy. Whether used on lathes, mills, or other machine tools, the SDS3MS DRO provides reliable, high-precision results, making it an essential tool for diverse machining setups and improving overall productivity.

SINO SDS3MS digital readout parameters

1. Input Voltage: AC 85V to 250V, 50Hz to 60Hz
2. Power Consumption: 15W / 25VA
3. Coordinate Options: Single axis (A), dual axes (XY), triple axes (XYZ)
4. Display: 7-segment LED for numerical data with signs; 8-meter symbol display
5. Weight: 2 kg
6. Input Signals: TTL, EIA-422, open collector output; works with programmable controllers
7. Signal Frequency: Over 100 kHz
8. Resolution Options: 10 microns, 5 microns, 2 microns, 1 micron, 0.5 microns

Basic Functions

Millimeter to Inch Conversion: Allows both absolute and relative conversions between millimeters and inches.
Mid-Split Function: A smooth "R" function for dividing or splitting shapes easily.
Circle Perimeter Division: Divides the perimeter of a circle into equal parts.
Storage of Workpiece Zero Points: Save up to 200 zero points for quick and easy recall.
Hole Division Along an Inclined Line: Precisely divides holes along an angled line.
Mathematical Calculation Tools: Includes advanced tools for calculations like diameter compensation.
Bevel Process Zero Reset: Automatically resets the zero point for bevel cutting, ensuring accurate angled surfaces.

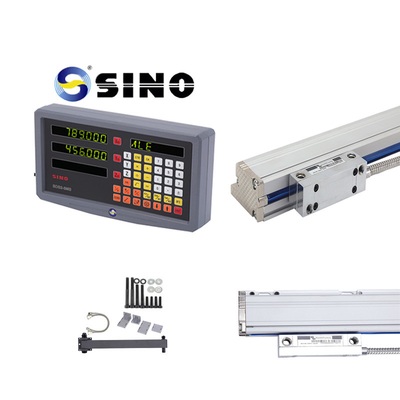

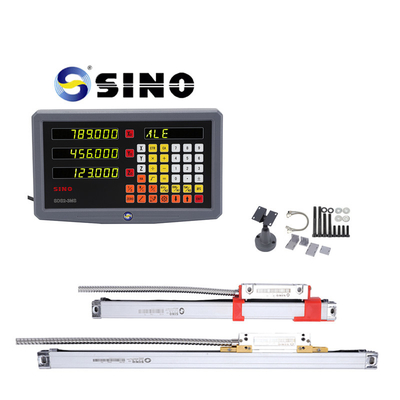

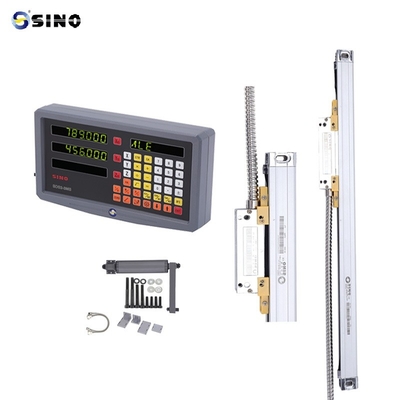

Product image /photos:

The rack in the picture is optioned, not standard product.
