SINO Digital Readout System 3 Axis SDS200 DRO Metal LCD With Glass Linear Encoder Kit For Milling Machine

Brand Name:	SINO
Model Number:	SDS 200
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

SINO Digital Readout System 3 Axis SDS200 DRO

Display:

LCD Screen

Number Of Display:

2 / 3 / 4 Axis

Number Of Connection:

1 / 2 / 3 / 4 Axis

Case:

Metal

Signal:

TTL / RS422

Voltage:

AC 100V-240V

Size:

285*195*53cm

Supply Ability:

1000 pcs per month

Highlight:

Milling Machine Digital Readout System

3 Axis Digital Readout System

Product Description

SINO Digital Readout System 3 Axis SDS200 DRO Metal LCD With Glass Linear Encoder Kit For Milling Machine

The SDS 200 is a metal LCD DRO capable of connecting up to four axes with various types of encoders, such as linear, rotary, and angular. Its versatility makes it ideal for a wide range of applications.

Feature:

1.The SDS 200, incorporating advanced 16-bit SCM technology, can replace a broad range of basic and specialized functions, offering enhanced versatility and performance.

2. The SDS 200 is widely used in high-precision coordinate boring machines, floor boring machines, precision boring machines, grinding machines, lathes, EDM machines, milling machines, and various other applications.

3. The SDS 200 delivers precise measurements, with each axis offering 40 points of non-linear adjustment.

4. Multilingual support allows operators to select their preferred language for easy operation.

5. It supports up to four axes for high-precision machine tools, with the option for single-axis operation.

Specifications :

Supply Voltage: 50-60Hz, AC 100V-240V, compatible with various socket types.
Power Consumption: 25VA.
Operating Temperature: 0–45°C.
Storage Temperature: -30–70°C.
Input Signal: TTL Square Wave.
Signal Frequency: < 5 MHz.
Display Resolution: Options include 5 µm, 1 µm, 0.5 µm, and 0.1 µm.
Angle Resolution: 0.0001 per pulse.

Packing Sheet :

1 PC	Metal LCD DRO SDS 200
1 PC	Transparent cover
1 PC	Instruction Manual (English)
1 PC	Power Cable

Product image /photos:

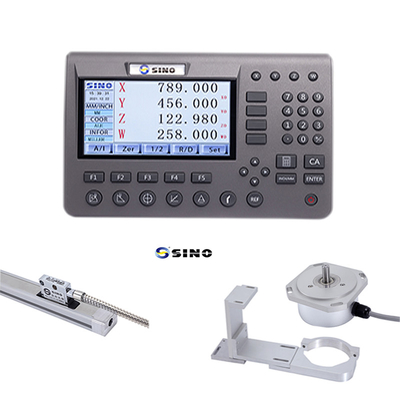

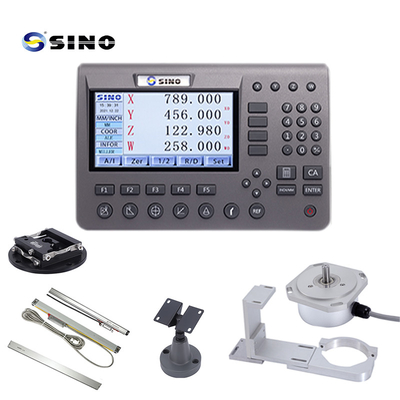

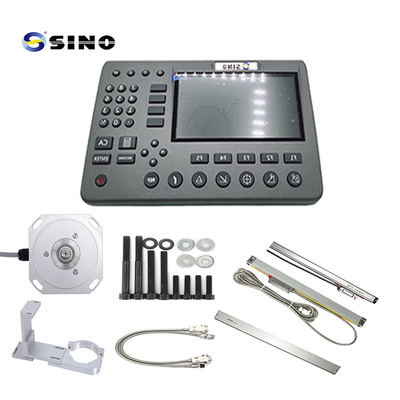

SINO Digital Readout System 3 Axis SDS200 DRO Metal LCD With Glass Linear Encoder Kit For Milling Machine 0

The rack in the picture is optioned, not standard product.

Size:

SINO Digital Readout System 3 Axis SDS200 DRO Metal LCD With Glass Linear Encoder Kit For Milling Machine 2
