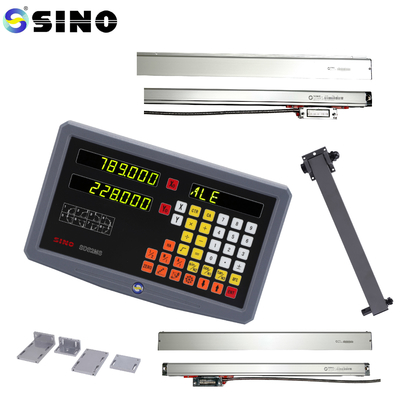

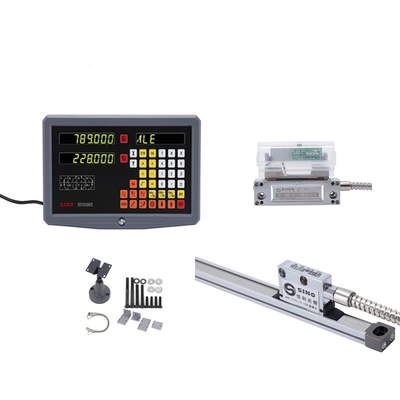

SDS 2MS DRO Kits Glass Linear Scale For Milling Lathe TTL SINO 2 Axis Digita Readout Test Instrument System

SINO 2 Axis Digital Readout Test Instrument System SDS 2MS DRO Kits Glass Linear Scale For Milling Lathe TTL

The ISO 9001 quality system, ISO 14001 environmental system, and OHSAS 18001 occupational health and safety system have all been authorized and audited by our organization.

Smooth R :

Arc processing is crucial to mold processing. Using a CNC machine for single workpiece placement machining may be very costly and time-consuming when the necessary shapes are straightforward and do not need a lot of arcing.

specifications:

1. Care must be used when handling the digital display box.
2. The box has to be correctly grounded.

3. Selecting the power voltage: AC 100V–240V 50Hz–60Hz

4. 25VA is the power usage.

5. Operating temperature: 0°C to 45°C

6. Temperature for storage: -30°C to 70°C

7. Relative humidity: 20±5°C, less than 90%

8. Weight: around 840 grams
9. The box must be free of corrosive gasses.

10. There are two coordinates in total.

11. Display: Using an 8-star character display device, the message window shows seven numerals with symbols.

12. Multiplication of frequency: 4X

13. TTL square wave is an acceptable input signal.

14. ≤5M Hz is the maximum permitted input signal frequency.

15. Resolution of length: 5µm, 1µm.

16. Operation keyboard: Diaphragm touch keys that are sealed

Package list:

1. a piece of the SDS2MS series digital readout

2. a piece of power wire

3. a copy of operating instruction

Detail Information:

Caution:

To prevent electric shock from fire, the machine shall not spray moisture or coolant directly.

All linear scales were tested before delivery. Here is a sample of a scale's test report.

Dear users:

Thank the purchase and use of our products! To make our services make you more satisfied after the purchase, please read the following instructions:

●Products shall be delivered with "Three Guarantees" and 15-day limited replacement and free repair within the period of one warranty year (from date of sale).

Accessories must be complete in replacement: ●The following few services are not free: 1. over one year warranty; 2. abnormal damage due to failure to comply with requirements of using, maintenance, and storage; 3. damage caused by the unauthorized mender; 4. without a valid invoice (except the products can be proved in warranty year); 5. damage caused by an irresistible force.
