Multifunctional With Linear Scale For Lathe Mill 2 Axis SDS2MS SINO Lathe Digital Readout System AC 100-240V

2 Axis SDS2MS SINO Lathe Digital Readout System AC 100-240V Multifunctional with linear scale for lathe mill​

An affordable variant of the SDS6 series digital readout is the LED DRO SDS2MS. It processes high-frequency A/B signals up to 5MHz and makes use of the most recent 16-bit SCM technology. It supports high-precision machinery such as coordinate boring machines, floor boring machines, grinding machines, lathes, and milling machines, and is appropriate for the majority of 2-axis display requirements. Because of its plastic casing, it weighs less, which lowers transportation expenses.

Upgraded Functions:

1. Calculator Function: To improve calculation accuracy, the SDS2 series lets you change the number of decimal digits to three, four, or five.
2.  Non-linear Error Compensation: To increase positioning precision, the system may accommodate up to 40 non-linear error compensation sections.
3.  Decimal Digits in Inch Mode: You have the option of choosing four or five decimal digits in inch mode. Four digits are suitable for long scale requirements, while five digits offer higher precision for detailed displays.

Specifications :

Supply Voltage: AC 80V-260V, 50-60Hz, US plug available
Power Consumption: 15VA
Operating Temperature: 0-45°C
Storage Temperature: -30-70°C
Input Signal: TTL/RS422 square wave
Signal Frequency: <5 MHz
Max Display Resolution: 0.5 µm
Min Angle Resolution: 0.0001/pulse

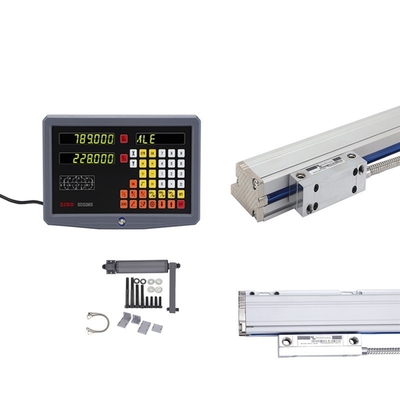

Product image /photos:

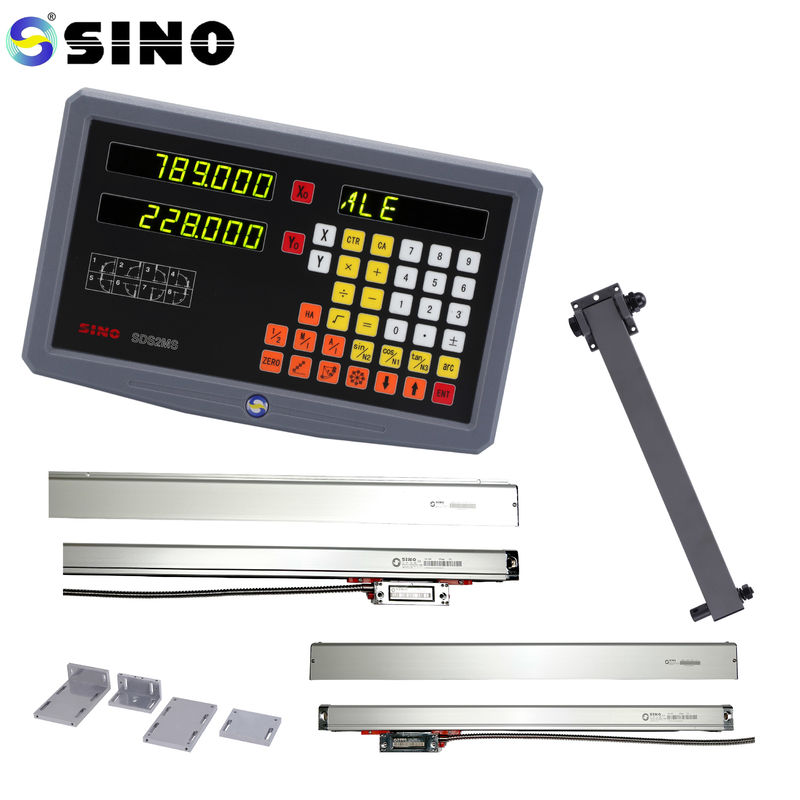

The rack in the picture is optioned, not standard product.
