Product Details:
|
| Item Name: | 2 Axis Economy Mini Size Lathe Machine DRO Kit | Usage: | Mini Lathe Machine Positioning |
|---|---|---|---|
| System: | 2 Axis LED DRO SDS2-3VA | Scale Model: | KA-200, KA-300, KA-500, |
| Signal: | TTL / RS422 | Resolution: | 0.005mm/0.001mm |
| DRO Mounting: | Electric Box By Base | Meas. Travel: | 70-1020mm |
| Display: | 2 Axes LED | Voltage: | Linear Ruler: +5V, DRO: 100V - 240V |
| Storage Temperature: | 0-60℃ | Case: | Plastic |
| Compatible With: | Lathe Machines, Milling Machines, Grinding Machines | Scale Model: | KA-300 & KA-500 Series |
| Type: | Digital Readout System | Item Name: | 2 Axes TFT Lathe Digital Counter System |
| Highlight: | SINO Two Axis Lathe Machine,Multi Function Lathe Machine DRO |
||

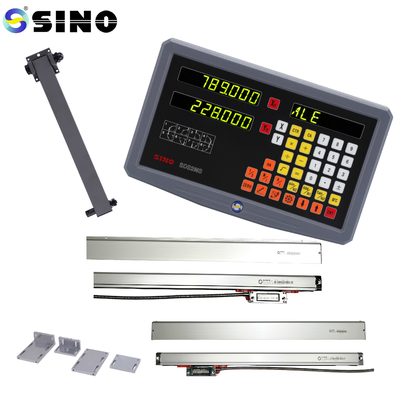

SINO 2 axis LED mini lathe machine DRO kit SDS2MS with two mini linear scales
The kit is unique for situating a two-axis micro lathe machine.
A specific foundation should be used to attach the TFT DRO SDS2MS on the electric box.
Two really small sales The KA-500 or KA-200 are suitable for compact installation spaces.

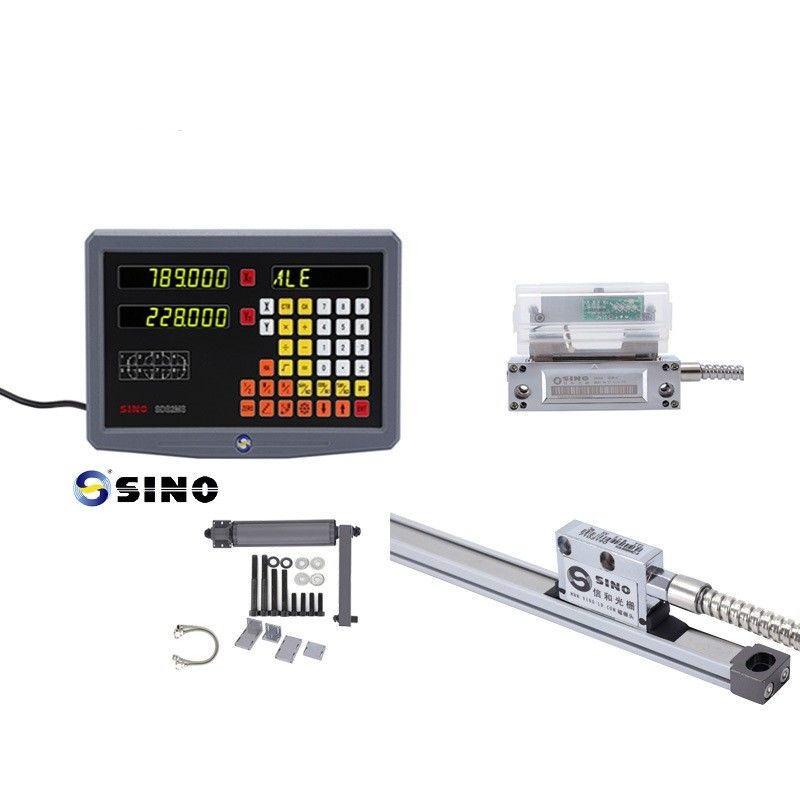

Package list:
| Item name | 2 axis economy mini lathe machine DRO kit |
| Digital Readout (DRO) | SDS2MS |
| Linear scale for axis Z | KA-200 / KA-500 70-570mm |
| Linear scale for axis X | KA-200 / KA-500 70-570mm |
| Rack for DRO | Base for lathe |
| Protection cover for Z scale | Type H / Y |
| Protection cover for X scale | Type H / Y |
| Bracket for scales |
T-bracket (1 set) / KA-500 bracket (1 pc) |
| Others | Cable / Screws / Manual |
Functions for lathe machine:
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
It's a sample that KA-500 linear encoder on axis X of lathe:
