DRO SINO SDS2-3VA 3-Axis Digital Readout with 5-Micron Linear Encoders for Lathe and Milling Machines

SINO DRO SDS2-3VA 3-Axis Digital Readout with 5-Micron Linear Encoders for Lathe and Milling Machines

Product Description:

The SINO SDS2-3VA Digital Readout is a three-axis display system engineered to deliver precise measurements for various industrial applications. It is equipped with three linear scales that incorporate 5-micron linear encoders, guaranteeing exceptional accuracy and reliable position readings.

Key Features:

Three-Axis Display: The SDS2-3VA digital readout (DRO) provides a clear, detailed display for all three axes—X, Y, and Z. This feature allows for the simultaneous measurement and monitoring of these axes, offering precise feedback on the position of machine components.
High Accuracy: The DRO system is equipped with 5-micron linear encoders, delivering exceptional precision in position detection. This level of accuracy ensures reliable measurements, allowing for the achievement of tight tolerances in machining operations.
Digital Readout Functionality: The SDS2-3VA features digital readout functionality, presenting position readings in a clear and easily readable format. The numerical display removes the possibility of interpretation errors, enabling operators to quickly and accurately track the movement of machine components.
Linear Scales: The digital readout system includes three linear scales, one for each axis, which detect linear movement and transmit position data to the display unit. These scales are designed to be highly resistant to environmental factors like dust, oil, and coolant, ensuring long-term accuracy and durability.
User-Friendly Interface: The SDS2-3VA is designed with an intuitive, user-friendly interface that makes operating and navigating the system straightforward. The easy-to-use controls allow users to quickly switch between measurement units, calibrate the scales, set reference points, and make other adjustments with minimal effort.Multiple Measuring Units: The SDS2-3VA DRO system supports a range of measuring units, including millimeters (mm) and inches (in). Users can effortlessly switch between these units to match their preferences or the specific requirements of the machining task at hand.

Compatibility: The SDS2-3VA is compatible with a wide range of machinery, including milling machines, lathes, grinders, and other industrial equipment. It can be easily integrated into existing systems or used as a standalone unit, providing flexibility to meet the needs of various applications.

Versatile Applications: The SDS2-3VA digital readout system, equipped with a three-axis display and linear scales, is perfect for a wide range of machining applications, including milling, turning, drilling, and grinding. It provides precise position feedback, allowing for accurate tool positioning, dimensioning, and contouring, which ultimately enhances machining precision and efficiency.

SINO SDS2-3VA digital readout system specifications, including linear scale encoder

The SDS2-3VA is a high-performance universal display console designed for use in milling, lathe, and grinding applications. It supports up to three linear encoders for precise three-axis measurement and offers various interfaces that allow users to combine axes or adjust inputs to accommodate equipment from different manufacturers. For detailed compatibility information, please refer to the encoder compatibility guide provided.

Durable Die-Cast Housing: The SDS2-3VA features a robust die-cast housing that ensures long-lasting durability, protecting the unit from wear and environmental stress. Additionally, the tactile front panel membrane enhances user interaction, providing a responsive and comfortable experience during operation.

Large LCD Panel: The SDS2-3VA is equipped with a large, high-contrast LCD panel that ensures excellent readability, even in challenging work environments with low lighting or high levels of ambient noise.

Advanced Features: This system includes a suite of advanced features designed to enhance machining accuracy and efficiency. These include PCD (Pitch Circle Diameter), line of holes, 200-zero memory, radius/diameter display, and tool offsets. These functionalities simplify complex tasks, helping operators achieve precise results while reducing setup time and improving overall productivity.

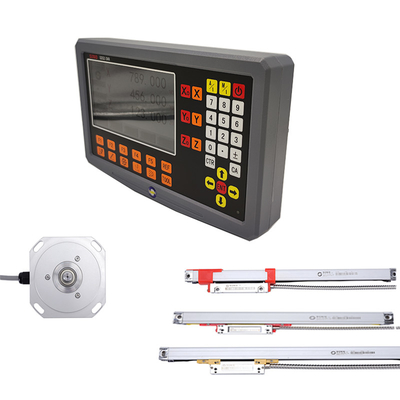

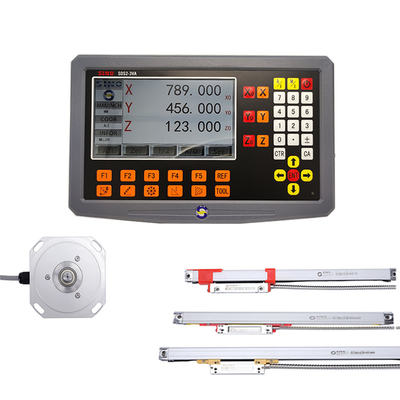

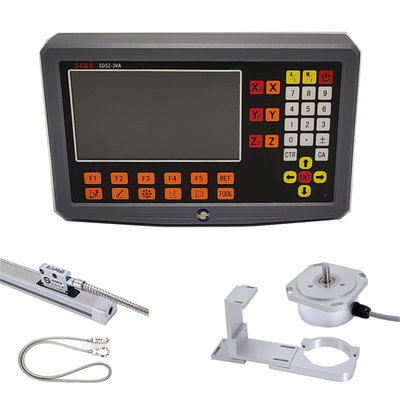

Product image /photos:

The rack in the picture is optioned, not standard product.
