IP64 SDS2MS SINO Digital Readout System DRO KA300 Glass Linear Scale Encoder

SINO Digital Readout System SDS2MS DRO KA300 Glass Linear Scale Suitable For Milling Lathe TTL Square Wave

Description of Digital Readout System

A two-axis digital readout system called SDS2MS is used for testing machines. The ISO 9001 quality system, ISO 14001 environmental system, and OHSAS 18001 occupational health and safety system have all been authorized and audited by our organization.

It is a general encoder improvement, and for the typical user, intimacy and beauty are essential.
Between 70 and 1020 millimeters

One kind of encoder with several uses is the KA-300. It can satisfy the demands of most general machine users thanks to its ideal construction, attractive look, and high stiffness. It is 70–1020 mm long.

​

Specifications:

1. Care must be used when handling the digital display box.

2. The box has to be correctly grounded.

3. Selecting the power voltage: AC 100V–240V 50Hz–60Hz

4. 25VA is the power usage.

5. Operating temperature: 0°C to 45°C

6. Temperature for storage: -30°C to 70°C

7. Relative humidity: 20±5°C, less than 90%

8. Weight: around 840 grams

9. The box must be free of corrosive gasses.

10. There are two coordinates in total.

11. Display: Using an 8-star character display device, the message window shows seven numerals with symbols.

12. Multiplication of frequency: 4X

13. TTL square wave is an acceptable input signal.

14. ≤5M Hz is the maximum permitted input signal frequency.

15. Resolution of length: 5µm, 1µm.

16. Operation keyboard: Diaphragm touch keys that are sealed

Package list:

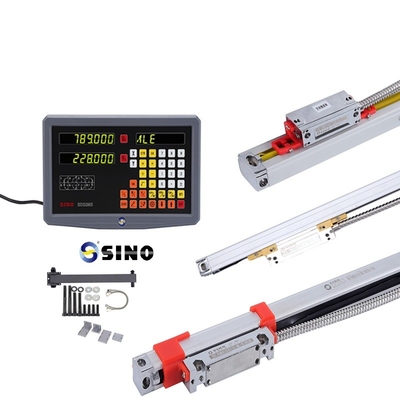

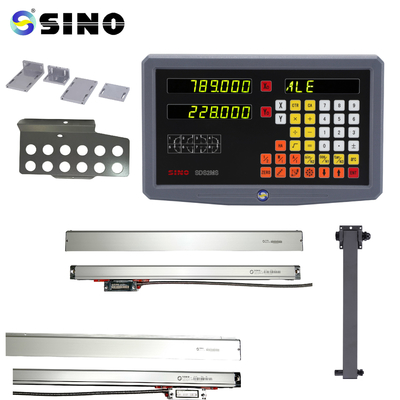

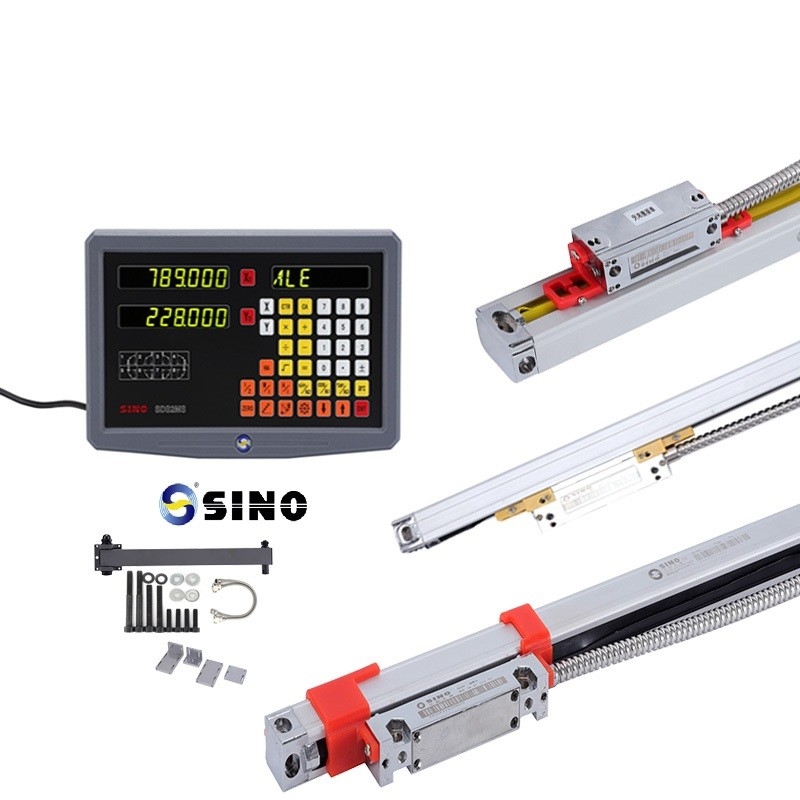

SDS2MS, cable,KA300 70-220mm

​Product Information

Customized lengths of the encoder (L0) can be provided according to the users' needs.(Length:70-520mm)

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension
