Item name	SINO SDS6-2V DRO 2 Axis Digital Readout
Digital Readout (DRO)	SDS6-2VF
Linear scale for axis X	670-1020mm
Linear scale for axis Y	370-570mm
Rack for DRO	L400
Protection cover for X scale	Type C
Protection cover for Y scale	Type D
Bracket for scales	T-bracket (1 set)
Others	Cable / Screws / Manual

Functions for milling machine:

Midsplit: A feature or method for dividing or splitting a workpiece symmetrically, often used in machining for balanced processing.
Smooth “R”: Refers to smooth radii ("R") in machining, ensuring curves or edges are seamlessly rounded.
Simple “R”: Likely refers to a basic or standard radius ("R") feature used in part design, where the curve is relatively straightforward or simple.
Oblique Line Hole Positioning: A method for positioning holes along an angled or oblique line, commonly used in parts that require angled drilling or hole placement.
PCD Circle Equal Division: Refers to the equal division of a circle on a Pitch Circle Diameter (PCD) for applications like bolt holes or stud placement on circular patterns.
Bevel Processing: Involves cutting or grinding edges at an angle to create a bevel, typically for fitment or aesthetic purposes.
Rectangular Inner Chamber Progressive Machining: Describes a machining process where the inner chamber of a rectangular part is progressively worked on, typically involving multiple steps to refine the chamber’s shape or dimensions.

Detail Information:

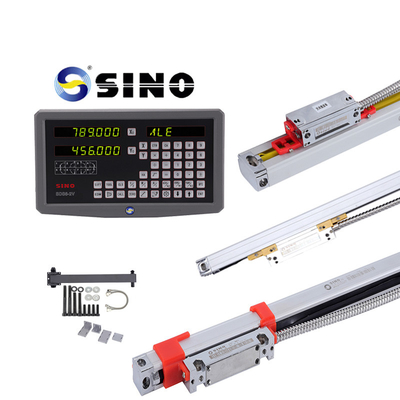

SINO SDS6-2V DRO 2 Axis Digital Readout With Metal LED Kits Two Linear Encoder Rulers For Milling Lathe Machine 0

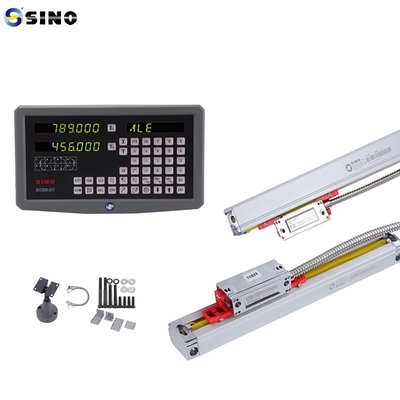

SINO SDS6-2V DRO 2 Axis Digital Readout With Metal LED Kits Two Linear Encoder Rulers For Milling Lathe Machine 1

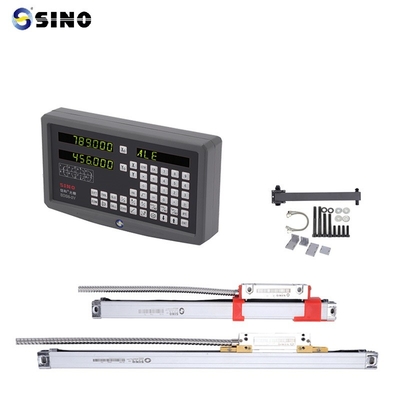

SINO SDS6-2V DRO 2 Axis Digital Readout With Metal LED Kits Two Linear Encoder Rulers For Milling Lathe Machine 2

Pin Description:

SINO SDS6-2V DRO 2 Axis Digital Readout With Metal LED Kits Two Linear Encoder Rulers For Milling Lathe Machine 3

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SINO SDS6-2V DRO 2 Axis Digital Readout With Metal LED Kits Two Linear Encoder Rulers For Milling Lathe Machine 4
