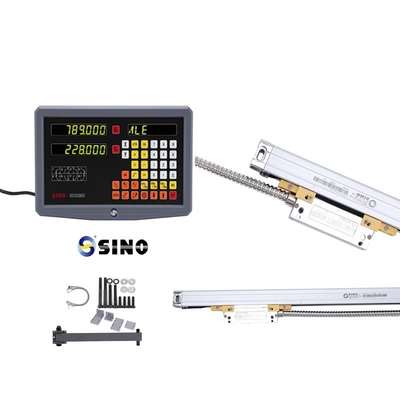

SINO SDS2MS Digital Readout 2 Axes Optical Angle Linear Encoder Length 7-102cm For Milling Machine

Brand Name:	SINO
Model Number:	SDS2MS, KA-300
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

SDS2MS Digital Readout 2 Axes

Usage:

Single Axis For EDM

System:

2 Axes LED DRO SDS2MS

Scale Model:

KA-300 Grating Scale

Signal:

TTL / EIA-422-A

Resolution:

0.005mm Or 0.001mm

Meas. Travel:

70-1020mm

Color:

Black

Display Resolution:

0.05μm,0.1μm, 0.5μm, 1μm, 5μm

Sealing Protection:

IP53

Weight:

1.5kg

Shipping Time:

10–14 Days Following Full Payment

Condition:

New

Quality:

High Accuracy

Supply Ability:

3000 sets per month

Highlight:

102cm Digital Readout

SINO SDS2MS Digital Readout

Milling Machine Digital Readout

Product Description

SINO SDS2MS Digital Readout 2 Axes Optical With Angle Linear Encoder Length 7-102cm For Milling Machine

The DRO set is made especially for applications involving 2-axis milling.

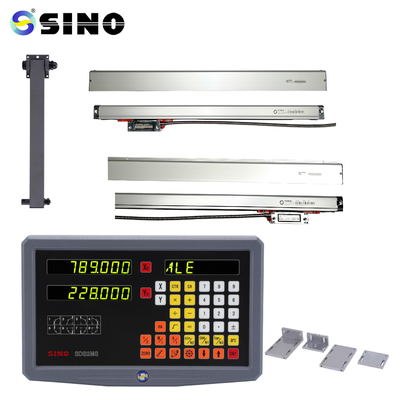

It comes with two standard KA-300 grating scales and one SDS2MS LED display DRO.

Package list:

Item name	2 axes economy LED milling machine DRO set
Digital Readout (DRO)	SDS2MS
Linear scale for axis X	670-1020mm
Linear scale for axis Y	370-570mm
Rack for DRO	L400
Protection cover for X scale	Type C
Protection cover for Y scale	Type D
Bracket for scales	T-bracket (1 set)
Others	Cable / Screws / Manual

Functions for milling machine:

Midsplitting is the process of splitting a feature or workpiece in half along its axis.
Smooth "R": Getting a smoothly curved edge or radius, usually for practical or decorative reasons.
The technique of cutting a feature or workpiece in half along its axis is known as midsplitting.
Simple "R": Constructing a straightforward, curved radius or edge.
Oblique line hole placement is the practice of placing holes at angles other than 90 degrees with regard to the workpiece surface.
PCD Circle Equally Dividing: Split a circular pattern or feature into equal pieces by using the Pitch Circle Diameter (PCD) as a reference.
Bevel processing is the process of machining or cutting edges to produce chamfers or bevels, which are frequently employed to
improve a part's look or functioning.Inner Chamber, Rectangular Progressive machining is the process of gradually, usually in stages, milling internal rectangular chambers or features within a component. or steps to achieve desired dimensions or finishes.

Detail Information:

SINO SDS2MS Digital Readout 2 Axes Optical Angle Linear Encoder Length 7-102cm For Milling Machine 0

SINO SDS2MS Digital Readout 2 Axes Optical Angle Linear Encoder Length 7-102cm For Milling Machine 2

SINO SDS2MS Digital Readout 2 Axes Optical Angle Linear Encoder Length 7-102cm For Milling Machine 3

Pin Description:

SINO SDS2MS Digital Readout 2 Axes Optical Angle Linear Encoder Length 7-102cm For Milling Machine 4

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SINO SDS2MS Digital Readout 2 Axes Optical Angle Linear Encoder Length 7-102cm For Milling Machine 5
