SINO SDS6-2VF Digital Display Readout With Linear Encoder Scale RoHS RS232-C Interface For Lathe

SINO SDS6-2VF 2-Axis LED Digital Readout System (DRO) with RS232-C Output Interface

The SDS6-2VF DRO is equipped with an RS232-C output function for connecting to a PC or other specialized systems.

The SDS6 series digital display counter utilizes the latest 16-bit SCM technology, allowing it to handle high-frequency A/B signals up to 5 MHz. It meets the basic functional requirements of various types of machines, making it a versatile DRO. The measurement speed is faster, and the control system operates more smoothly and efficiently. Each axis offers 40 points of non-linear compensation to enhance accuracy.

Advanced Functions:

1. Calculation:The counter allows you to adjust the decimal places to 3, 4, or 5 digits, enhancing calculation precision.
2. Non-linear Error Compensation:The system offers up to 40 sections of non-linear error compensation, improving machining precision.
3. Decimal Digit Selection in Inch Mode:In inch mode, you can select between 4 or 5 decimal digits. Four digits meet the needs for long-scale measurements, while five digits provide high-precision display.
4. Communication:The system features an RS232-C output for easy data communication.

Specifications :

Counter Input Voltage Range: AC 80V–260V; 50–60Hz, with different plug options available for various regions.
Power Consumption: 15VA, which is relatively low energy consumption for the system's performance.
Working Temperature: Operates between 0°C and 45°C, suitable for most industrial environments.
Storage Temperature: Can be safely stored in a range of -30°C to 70°C.
Input Signal: The system accepts TTL/RS422/EIA-422-A square wave signals.
Input Signal Frequency: It can handle frequencies up to 5 MHz.
Max Resolution of Digital Display Length: The maximum resolution for length display is 0.5µm, allowing for highly precise measurements.
Min Resolution of Digital Display Angle: The minimum resolution for angle display is 0.0001/pulse, ensuring extremely fine angular precision.

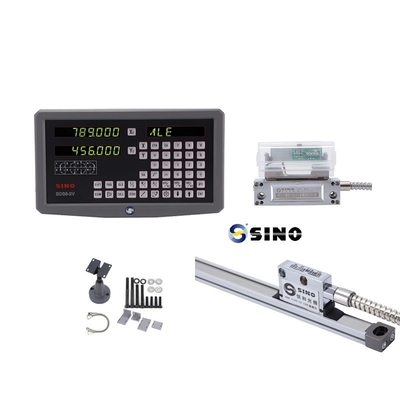

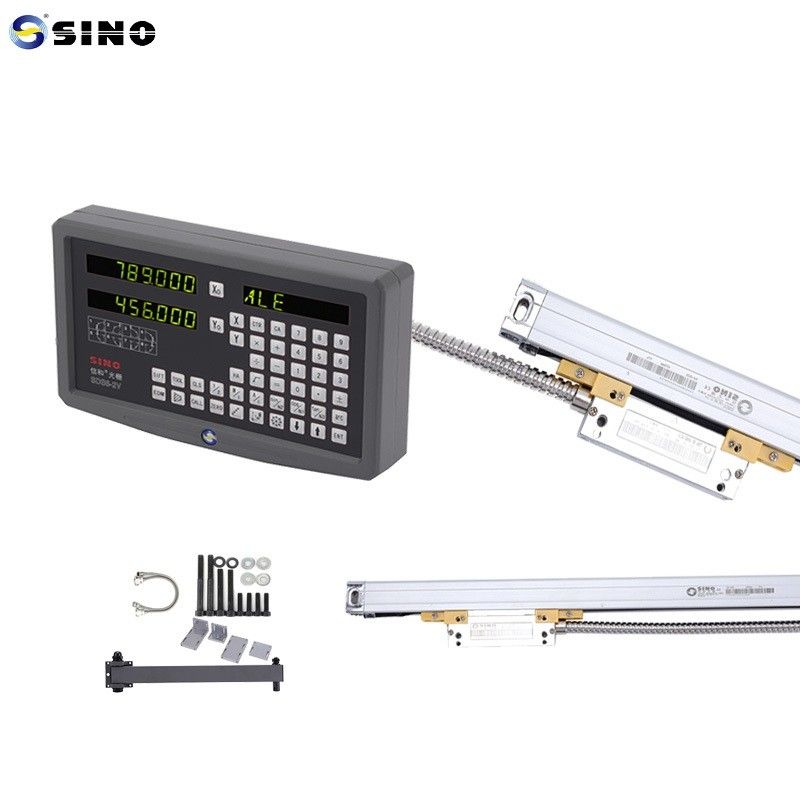

Product image /photos:

RS232-C Output Interface:

Size:

The rack in the picture is optioned, not standard product.
