SINO SDS2-3MS DRO Digital Readout System For Lathe And Milling Machines With 3-Coordinate Numerical Display

SINO SDS2-3MS DRO Digital Readout System for Lathe and Milling Machines with SDS3MS Display
SINO SDS2-3MS DRO Digital Readout System for Lathe and Milling Machines with 3-Coordinate Numerical Display

The SDS2-3MS SINO Lathe and Milling Machine DRO Digital Readout with SDS3MS Display is a sophisticated digital readout system designed for lathe and milling machines. It offers precise, real-time measurement feedback, enabling operators to monitor and control the machining process with exceptional accuracy. This system enhances operational efficiency and ensures consistent, high-quality results.

Features:

The SDS3MS Display: This digital readout system is equipped with the SDS3MS display, offering a clear and user-friendly interface for monitoring machine measurements. The display unit is designed with intuitive features, including easy-to-use function buttons and a keypad, ensuring smooth and convenient operation for the user. It provides quick access to critical machine data, enhancing workflow and precision during machining tasks.
Multiple Axes: The SDS2-3MS DRO system supports multiple axes, providing measurement feedback and control for various machine movements. This feature allows for precise positioning and accurate machining on different axes simultaneously, enhancing the versatility and efficiency of the system. Whether you're working with a lathe or milling machine, the multi-axis support ensures that complex machining tasks can be handled with precision and ease.
Lathe and Milling Compatibility: The SDS2-3MS DRO system is designed to be compatible with both lathe and milling machines, offering exceptional versatility for machinists. This flexibility allows it to be seamlessly integrated into the control systems of various machines, ensuring smooth and efficient operation. Whether you're working with turning or milling processes, the system provides accurate measurements and enhances overall machine performance.
High Accuracy: The SDS2-3MS DRO system delivers high-precision measurement readings, ensuring tight control over machine movements. This level of accuracy is essential for achieving tight tolerances and optimal results in machining operations. Whether it's for fine adjustments or complex processes, the system's precise feedback ensures that the final product meets the required specifications with consistency and reliability.
Incremental and Absolute Modes: The SDS2-3MS DRO system offers both incremental and absolute measurement modes, providing flexibility for various machining tasks. In incremental mode, measurements are taken relative to the previous position, which is ideal for making repetitive adjustments or incremental changes. In absolute mode, the system records the exact position of each axis from a fixed reference point, making it perfect for precise, reference-based measurements. Operators can easily switch between the two modes, adapting to different machining needs for enhanced convenience and accuracy.
Functionality:

The SDS2-3MS SINO Lathe Milling Machine DRO Digital Readout system enables operators to monitor and control machine movements with high precision during lathe and milling operations. By providing real-time measurement feedback, it allows for immediate adjustments and corrections, ensuring that machining processes stay on track. This system enhances operational efficiency, helps achieve tight tolerances, and supports the production of high-quality results by offering precise, up-to-date data throughout the machining process.

Usage:
The DRO system is widely utilized in machining operations where precise measurement and control are essential, including turning, milling, drilling, and boring. Its versatility makes it applicable across various industries such as metalworking, woodworking, automotive, aerospace, and beyond. In these industries, the SDS2-3MS DRO system helps ensure accuracy in complex machining tasks, improves production efficiency, and maintains high-quality standards by providing real-time, reliable feedback on machine movements and positioning. This adaptability is key for meeting the demanding requirements of different sectors.
Applicable Scenarios:
Lathe Operations: The SDS2-3MS DRO system is perfectly suited for a variety of lathe operations, including facing, turning, tapering, threading, and grooving. By offering precise measurement and real-time feedback on tool movements, the system ensures that each machining process is performed with high accuracy. Whether you're working on creating a smooth surface, cutting threads, or shaping complex geometries, the DRO system helps maintain tight tolerances and consistent results, improving both the quality and efficiency of lathe operations.
Milling Operations: The system is also well-suited for milling operations, including contouring, slotting, drilling, and profiling. It facilitates precise measurement and control of cutter movements, allowing operators to achieve accurate and repeatable milling operations.

DRO SDS3MS is a multipurpose gauge with a 3-coordinate numerical display.
This gauge offers the flexibility to switch to the appropriate function for different machine tools by simply adjusting the parameters. This adaptability allows operators to easily customize the system for various machining tasks, ensuring optimal performance across a range of applications. Whether transitioning between lathe, milling, or other machine tools, the ability to adjust the parameters helps streamline operations, reduce setup time, and improve overall machining efficiency. This feature makes the system versatile and user-friendly for a wide array of machining needs.

SINO SDS3MS digital readout parameters


1. Voltage Range: AC 85V ~ 250V, 50Hz ~ 60Hz – This wide voltage range allows the system to be compatible with various power sources, making it adaptable to different regions or operational conditions.
2. Power Consumption: 15W, with a maximum power of 25VA – The system operates efficiently, ensuring minimal energy usage while still providing high performance.
3. Coordinate Number: The system supports 1-axis, 2-axis, or 3-axis configurations, offering flexibility for different machining setups.
4. Display: The system features a 7-segment display that shows two or three-axis output data. The display uses 8 digits and symbols to present the measurements clearly, making it easy to track the machine’s position.
5. Weight: The unit weighs 2 kg, making it compact and manageable for installation and setup.
6. Input Signal: The system accepts TTL (Transistor-Transistor Logic) and EIA-422 open collector output signals, which are convenient for interfacing with programmable controllers and other industrial automation systems.
7. Input Signal Frequency: It supports an input signal frequency of > 100kHz, ensuring high-speed data processing and accurate real-time feedback.
8. Resolution: The system allows for customizable resolution settings, including 10 microns, 5 microns, 2 microns, 1 micron, and 0.5 microns, ensuring precision across various machining tasks.


Basic Functions

mm/inch Conversion | Absolute/Relative Conversion
Mid-split Function | Simple “R” Function
Smooth “R” Function | Divide the perimeter of a circle
Save 200 workpiece zero points | Divide holes along an angled line
Mathematical Calculation | Tool diameter compensation
Bevel Process | Automatic zero location reset

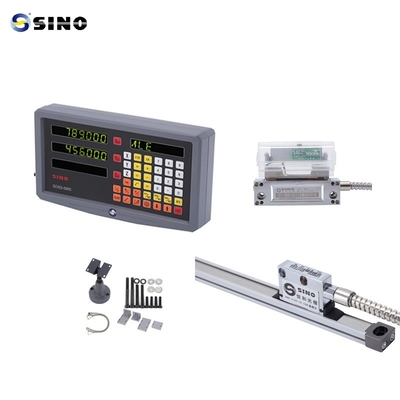

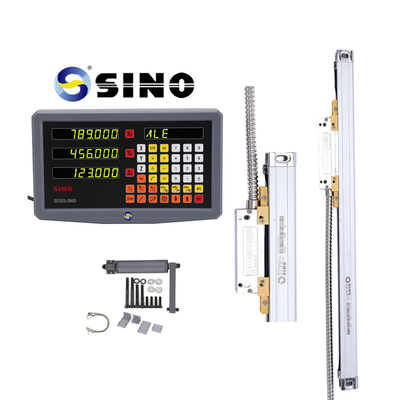

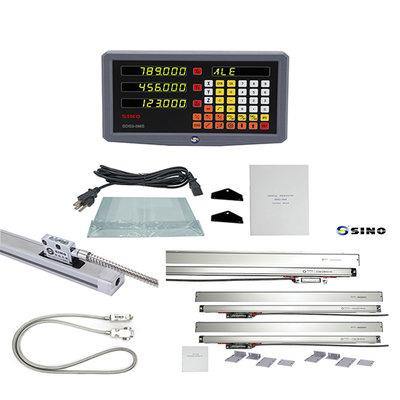

Product image /photos:




The rack in the picture is optioned, not standard product.
