SINO SDS2-3MS DRO Digital Readout with 3-Coordinate Numerical Display for Lathe and Milling Machines

The SDS2-3MS SINO Lathe Milling Machine DRO Digital Readout with SDS3MS Display is a digital readout system designed for lathe and milling machines. It delivers accurate, real-time measurement feedback, enabling operators to monitor and control the machining process with high precision.

Features:

SDS3MS Display: The digital readout system includes the SDS3MS display, offering a clear, easy-to-read interface for monitoring machine measurements. The display unit is equipped with user-friendly features, such as function buttons and a keypad, ensuring convenient operation.

Multiple Axes: The SDS2-3MS DRO system supports multiple axes, providing measurement feedback and control for different machine movements. This versatility allows for precise positioning and accurate machining across various axes simultaneously.

Lathe and Milling Compatibility: The DRO system is compatible with both lathe and milling machines, making it a versatile tool for machinists working with different types of equipment. It can be easily integrated into the machine's control system for smooth and seamless operation.

High Accuracy: The digital readout system offers high-precision measurement readings, ensuring precise control of machine movements and achieving tight tolerances in machining. This level of accuracy is essential for obtaining optimal machining results.

Incremental and Absolute Modes: The SDS2-3MS DRO system supports both incremental and absolute measurement modes, offering flexibility and convenience for various machining scenarios. Operators can effortlessly switch between the two modes to suit their specific needs.

Functionality:

The SDS2-3MS SINO Lathe Milling Machine DRO Digital Readout system enables operators to accurately monitor and control machine movements during lathe and milling operations. By providing real-time measurement feedback, it allows operators to make necessary adjustments and corrections, ensuring the achievement of desired machining results with high precision.

Usage:

The DRO system is essential in machining operations requiring precise measurement and control, such as turning, milling, drilling, and boring. Its application spans various industries, including:

Applicable Scenarios:

Lathe Operations: The DRO system is perfect for various lathe operations, such as facing, turning, tapering, threading, and grooving. By providing real-time measurements, it ensures precise control of tool movements, helping to achieve accurate and consistent machining results. This level of precision is crucial for producing high-quality parts with tight tolerances in lathe-based operations.

Milling Operations: The DRO system is highly effective for milling operations, such as contouring, slotting, drilling, and profiling. It ensures precise measurement and control of cutter movements, enabling operators to achieve accurate, repeatable, and consistent milling results. This accuracy is essential for producing high-quality parts and maintaining tight tolerances in various milling tasks.

The DRO SDS3MS is a versatile multipurpose gauge equipped with a 3-coordinate numerical display, making it suitable for a wide range of machining operations. Its flexibility allows users to easily switch to the appropriate function for different machine tools by simply altering the parameters. This adaptability makes the SDS3MS a powerful tool for various operations, providing precise measurement and control across different machines without the need for complex reconfiguration. It's an efficient solution for improving productivity and maintaining high accuracy across multiple machining tasks.

SINO SDS3MS digital readout parameters

1. Voltage Range: AC 85V to 250V, 50Hz to 60Hz
2. Power Consumption: 15W, 25VA
3. Coordinate Support: 1-axis, 2-axis, 3-axis
4. Display: 7-segment display for output data (supports 2 or 3 axes), showing up to 8 characters with relevant symbols
5. Weight: 2 kg
6. Input Signal: TTL and EIA-422 open collector output signals, with an easy interface for connection to programmable controllers
7. Input Signal Frequency: Supports frequencies greater than 100 kHz
8. Resolution Options: 10 microns, 5 microns, 2 microns, 1 micron, or 0.5 microns

Basic Functions

mm/inch Conversion: Allows switching between metric and imperial units.
Absolute/Relative Transformation: Supports both absolute and relative coordinate systems.
Mid-split Function: Divides the system into halves for precise alignment or measurements.
Simple "R" Function: Performs basic radius (R) operations for quick adjustments.
Smooth "R" Function: Ensures smooth transitions or curves when applying the "R" function.
Divide the Perimeter of a Circle: Allows splitting the circumference of a circle into equal segments.
Save 200 Workpiece Zero Points: Stores up to 200 workpiece zero points for easy retrieval.
Divide Holes on an Oblique Line: Helps in dividing holes along an angled or slanted line.
Mathematical Calculation: Provides tools for performing complex mathematical calculations.
Tool Diameter Compensation: Adjusts for the diameter of the cutting tool to improve accuracy.
Bevel Process: Supports beveling operations for angled cuts or edges.
Zero Location Auto-rest: Automatically restores the machine's zero position for convenience and accuracy.

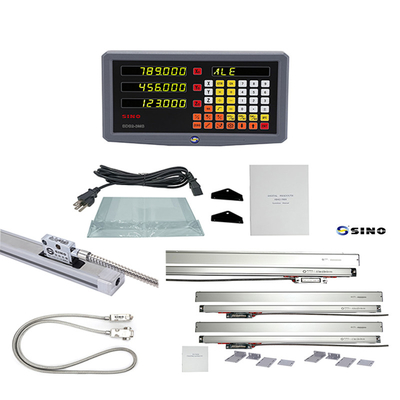

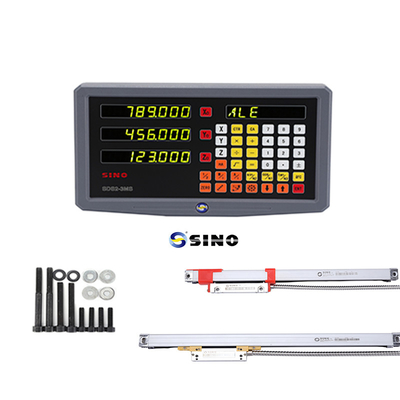

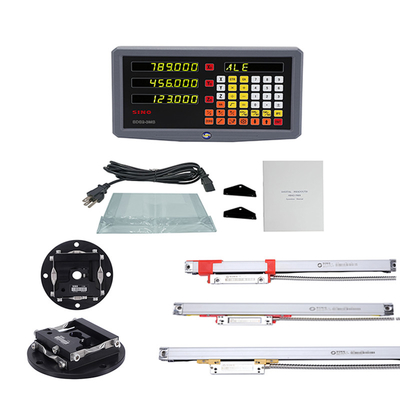

Product image /photos:

The rack in the picture is optioned, not standard product.
