SINO SDS 2MS Digital Readout 2 Axis With Linear Magnetic Scale Dro Kit For Milling Machines

SINO SDS 2MS Digital Readout  2 Axis With Linear Magnetic Scale Dro Kit For Milling Machines
SINO SDS 2MS Digital Readout  2 Axis With Linear Magnetic Scale Dro Kit For Milling Machines SINO SDS 2MS Digital Readout  2 Axis With Linear Magnetic Scale Dro Kit For Milling Machines SINO SDS 2MS Digital Readout  2 Axis With Linear Magnetic Scale Dro Kit For Milling Machines SINO SDS 2MS Digital Readout  2 Axis With Linear Magnetic Scale Dro Kit For Milling Machines

Large Image :  SINO SDS 2MS Digital Readout 2 Axis With Linear Magnetic Scale Dro Kit For Milling Machines

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE, RoHS
Model Number: SDS2MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month

SINO SDS 2MS Digital Readout 2 Axis With Linear Magnetic Scale Dro Kit For Milling Machines

Description
Name: SINO SDS 2MS Digital Readout 2 Axis Number Of Axis: 2-Axis
Usage: All Kinds Of Two-axis Propose Suitable For: For Milling Machines, Grinding, Lathe Milling Machine
Name 2: DRO Digital Readout System Voltage: AC 100~240V
Signal: TTL / RS422 Color: Grey-Colors
Warranty: 12 Months/1 Years Number Of Axes: 2/3-Axis
Resolution-μm: 0.1/0.2/0.5 /1/2/5/10
Highlight:

Milling Machines Digital Readout

,

Linear Magnetic Scale Dro Kit

,

2MS Digital Readout

SINO SDS 2MS Digital Readout 2 Axis With Linear Magnetic Scale Dro Kit For Milling Machines



The Sino SDS2MS DRO is a sophisticated digital display gauge designed for lathe and milling machines. It provides a variety of functions that can be easily customized to accommodate different machine tools.



Key Features:



1. Versatile functionality: The SDS2MS DRO supports radius/diameter conversion, MM/Inch conversion, and absolute/relative conversion, providing enhanced flexibility for measurements and calculations.

2. Enhanced precision: The mid-splitting function of the DRO allows for precise positioning and measurement of workpieces. The convenient "R" function simplifies radius calculations, while the smooth "R" function ensures seamless operation during machining processes.

3. Convenient memory storage: The DRO features a built-in memory capable of storing up to 200 sets of zero positions, making it easy to recall previous settings and enhance workflow efficiency.



Specifications:



  1. Voltage range: AC 85V~250V / 50Hz~60Hz
  2. Power consumption: 15W (25VA)
  3. Coordinate options: Single coordinate, two coordinates, three coordinates
  4. Display type: Seven-segment display with eight-digit characters showing symbols (for two or three axes)
  5. Net weight: 1.3kg (2.9lb)
  6. Input signal compatibility: TTL, EIA-422 open collector output signal, compatible with programmable controllers
  7. Input signal frequency support: >100 KHz
  8. Resolution options: 10 microns, 5 microns, 2 microns, 1 micron, 0.5 microns

Additional Features:



1. The robust design and professional software guarantee reliable performance and long-lasting durability.

2. Enhanced anti-interference capabilities ensure compliance with advanced EMC testing standards.

3. The DRO is designed to adapt to a variety of processing environments, making it ideal for a wide range of applications.

Experience the precision and convenience of the Sino SDS2MS DRO Digital Readout System for your lathe or milling machine today!

The SDS2MS DRO is a multifunctional, two-coordinate numerical display gauge. By adjusting the parameters based on the machine tool, this gauge can be easily customized to suit the specific function needed.



Upgraded Functions:



  1. Radius/diameter conversion: Seamlessly switch between radius and diameter measurements.
  2. MM/Inch conversion: Easily toggle between metric (mm) and imperial (inch) units.
  3. Absolute/relative conversion: Switch between absolute and relative positioning for versatile measurements.
  4. Mid-splitting function: Enables precise positioning by splitting the workpiece in half.
  5. Easy "R" function: Simplifies radius calculations for improved accuracy.
  6. Smooth "R" function: Ensures smooth, continuous operation during machining for better results.
  7. PCD hole positioning on circumference: Accurate positioning for holes on the circumference of a circle, perfect for drilling applications.
  8. 200 groups zero position memory: Store up to 200 zero positions for quick recall and improved workflow efficiency.



Packaging List :

1 PC 2 Axis digital readout SDS2MS
1 PC  Transparent cover
1 PC Instruction Manual (English)
1 PC Cable



Product image /photos:

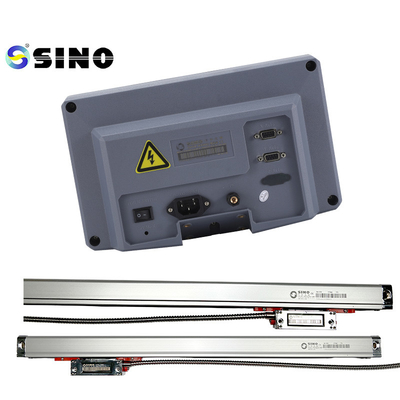

SINO SDS 2MS Digital Readout  2 Axis With Linear Magnetic Scale Dro Kit For Milling Machines 0

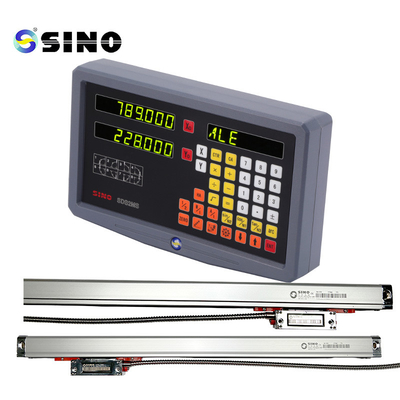

SINO SDS 2MS Digital Readout  2 Axis With Linear Magnetic Scale Dro Kit For Milling Machines 1

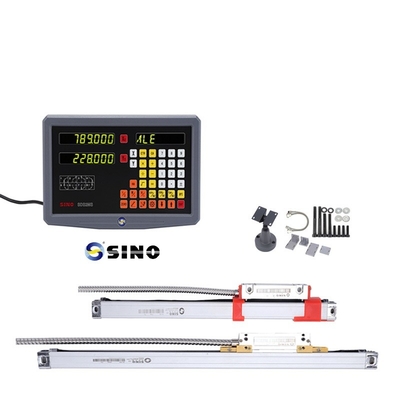

SINO SDS 2MS Digital Readout  2 Axis With Linear Magnetic Scale Dro Kit For Milling Machines 2

The rack in the picture is optioned, not standard product.



SINO SDS 2MS Digital Readout  2 Axis With Linear Magnetic Scale Dro Kit For Milling Machines 3
